4×2 Water Spray Truck 6600L For City Road Cleaning And Dustfall

Name: 4×2 Water Spray Truck 6600L For City Road Cleaning And Dustfall
Brand: GENERAL EAST CO.,LTD
SKU: Water Sprayer Truck
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO 9001/TS16949

Model Number: Water Sprayer Truck

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Packaging Details: packed in nude

Delivery Time: 45 working days

Payment Terms: T/T, L/C

Supply Ability: 10 units per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                diesel fuel tank trailer, oil tank trailer


Material:	Carbon Steel Q345/Q235	Tanker Volume:	6,600L
Axle No.:	2	Transport Liqulid:	Water
Color:	Customized	Tanker Shape:	Square-Round

Material:	Carbon Steel Q345/Q235
Tanker Volume:	6,600L
Axle No.:	2
Transport Liqulid:	Water
Color:	Customized
Tanker Shape:	Square-Round

Product Description

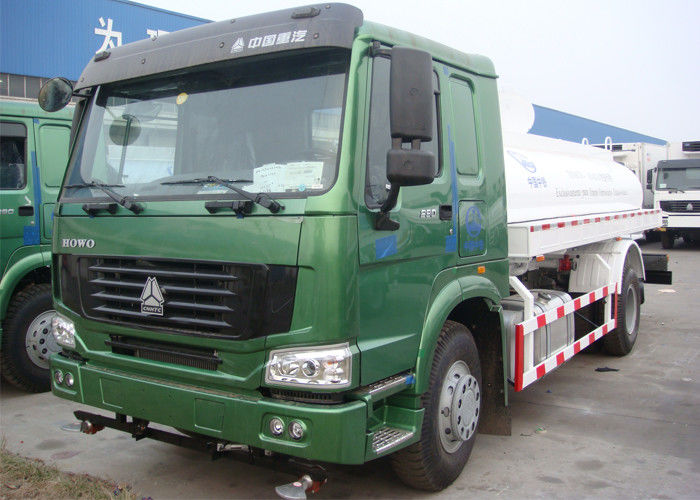

4×2 Water Sprayer tank truck with volume of 6600L for city Road cleaning and Dustfall

4×2 Water Sprayer tank truck with volume of 6600L for city Road cleaning and Dustfall
4×2 Water Sprayer tank truck, HOWO76 cabin,(air-condition, one bed); with WD615.87Sinotruk engine,266HP, with HW13710 transmission, with ZF steering(RHD/LHD), with12R22.5tires, etc.
SPECIFICATION		HOWOZZ1257M4647W
Dimension(L×W ×H)(unloaded)		8600×2496×3100
Tank capacity (m³)		6.6
Approaching angle/Departure angle(°)		19/15
Overhang(front/rear) (mm)		1500/2277
Wheel base (mm)		4600
Max speed(km/h)		90
Curb weight(kg)		9000
Loading Weight(kg)		8000
Engine (Steyr technology, made in China)	Model	WD615.62,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
	Fuel type	Diesel
	Power, max(kw/rpm)	196/2200(266HP)
	Emission	EURO 2
Fuel tanker capacity		300
Transmission	Model	HW13710,10 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	ZF8098 (LHD)
Front axle	Steering with double T-cross section beam HF7
Rear axle	Pressed axle housing, central double reduction with differential locks between axles and wheels
Tyre	12R22.5
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cab	HOWO76 Standard cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Steel Structure: Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.
Water Sprayer	Water Pump
	Sprayer 2 sets at the front
	water monitor at the tail of the truck
