Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks
Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks
Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks
Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks
Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks

Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ISO9001/TS16949

Model Number: Motorhome

Payment & Shipping Terms

Minimum Order Quantity: 3 SETS

Packaging Details: IN CASE OR ON BOX

Delivery Time: 20 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 150 UNITS PER MONTH

Get Best Price

Product Details

Product Description
Product Details
Highlight:

freezer truck body

,

refrigerated lorry body

Material:
Fiber Glass+PU +Fiber Glass
Size:
Customized
Structure:
Sandwich Type
Assembly Type:
Fast Glue Assembly
Box Type:
Motorhome , Caravan
Weather Request:
All Seasons
Material:
Fiber Glass+PU +Fiber Glass
Size:
Customized
Structure:
Sandwich Type
Assembly Type:
Fast Glue Assembly
Box Type:
Motorhome , Caravan
Weather Request:
All Seasons
Product Description



Fast Assembly Motorhome box for full drive trucks , XPS Insulated Sandwich composite panel kits and box with GRP Profiles


Charactors

The Main Characters Are As Follows:
1. Light In Weight:40% Lighter Than Metal Body.
2. Better Insulation: K Value Less Than 0.3w/Sqm*K.
3. High In Strength And Long Life: 5 Times Longer Than Metal Body.
4. Non-Corrosion, Non-Pollution, Anti-Brine, Acid And Soda-Resisting.
5. Easy To Assembly And Repair At Site.
6. Water-resistant/water-soluble
7. Air permeable



Fast Assembly Motorhome box for full drive trucks , XPS Insulated Sandwich composite panel kits and box with GRP Profiles

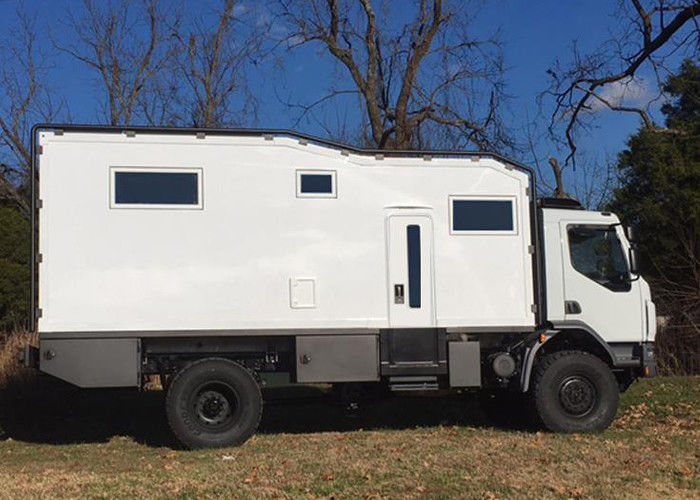

This Fast Assembly FRP Motorcaravan Box design for the Full drive Trucks who want to travel in the forest , in the desert and hostile environment , Its panels with FRP and PU or XPS insulation Core material to let the Box Strong and insulated nor matter cold in winter and hot in summer, its insualtion is betther than the standard concrete construction. With FRP Profile to let the assembling easy like a Lego Toys, 2 men can finished it in 3 hours. We can also customized with your special working purpose.
DELIVERY TYPE: CKD (COMPLETE KNOCKED DOWN )
1 PANEL LAYERS FRP+ PU foam+ FRP
2 PANEL THICKNESS:
Side Walls 50.00mm 2.00mm FRP+ 4.00mm Plywood+ 38.30mm PU foam+ 4.00mm Plywood+ 1.70mm FRP
Front Wall 50.00mm 2.00mm FRP+ 4.00mm Plywood+ 38.30mm PU foam+ 4.00mm Plywood+ 1.70mm FRP
Rear Wall 50.00mm 2.00mm FRP+ 4.00mm Plywood+ 38.30mm PU foam+ 4.00mm Plywood+ 1.70mm FRP
Roof 83.50mm 2.00mm FRP+ 4.00mm Plywood+ 71.50mm PU foam+ 4.00mm Plywood+ 2.00mm FRP
Floor 83.50mm 2.00mm Plywood+ 12.00mm Plywood+ 63.50mm PU foam+ 4.00mm Plywood+ 2.00mm FRP
2.2* FRP SHEET DETAILS

Fiber GLASS Material
 		 PANLE KITS LAYER SIDE WALL /ROOF INTERNAL ROOF/ FLOOR EXTERIAL SIDE WALL EXTERIAL Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks 0
　
Model
Values		 LAMILUX
High Impact		 LAMILUX
Woven Fabric Gelcoat		 LAMILUX
High Gloss 4000
Thickness 1.4 mm 2.0 mm 1.7mm
Weight 2250 g/㎡ 2650 g/m2 2340 g/㎡
Glass content 48-52 % 27-29 % 20-24%
Flexural strength 305 N/m㎡ 170N/mm 100 N/m㎡
Flexural e-modulus 8550 N/m㎡ 11700 N/mm2 4000N/m㎡
Tensile strength 240 N/m㎡ 80 N/mm 55 N/m㎡
Tensile e-modulus 14700 N/m㎡ 8100 /mm2 6000 N/m㎡
Impact strength 82 KJ/㎡ 　 　
PANEL THICKNESS:
Side Walls 50.00mm 1.40mm FRP+ 4.00mm Plywood+ 38.90mm PU foam+ 4.00mm Plywood+ 1.70mm FRP
Front Wall 50.00mm 1.40mm FRP+ 4.00mm Plywood+ 38.90mm PU foam+ 4.00mm Plywood+ 1.70mm FRP
Rear Wall 50.00mm 1.40mm FRP+ 4.00mm Plywood+ 38.90mm PU foam+ 4.00mm Plywood+ 1.70mm FRP
Roof 83.50mm 1.40mm FRP+ 4.00mm Plywood+ 72.10mm PU foam+ 4.00mm Plywood+ 2.00mm FRP
Floor 83.50mm 2.00mm Plywood+ 14.00mm Plywood+ 61.50mm PU foam+ 4.00mm Plywood+ 2.00mm FRP
3 FAST ASSMBLY FRP Profile Specilized FRP Profile for Upper,Lower and Front post Frame,Assembly with Glue ONLY
Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks 1
　
　 　

  Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks 2


  Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks 3

Fast Assembly Motorhome Box Refrigerated Truck Bodies For Full Drive Trucks 4
　
　 　
4 Body Assembly Glue Kommerling from Germany
5 Finishing-color white gelcoat colour both side, UV resistant, food grade approval
6 Other Parts pop-rivet, silicon glue,
CARAVAN Parts Doors Caravan's Door: 1750 H x 622 W (mm)
Caravan's Door: 1810 H x 600 W (mm)
Caravan's Door: 1822 H x 600 W (mm)
Windows Caravan Window 300 H x 500 W (mm)
Caravan Window 450 H x 500 W (mm)
Caravan Window 450 H x 610 W (mm)
Caravan Window 450 H x 900 W (mm)
Caravan Window 450 H x 1100 W (mm)
Caravan Window 500 H x 900 W (mm)
Caravan Window 500 H x 1200 W (mm)
Caravan Window 550 H x 700 W (mm)
Caravan Window 550 H x 900 W (mm)
Caravan Window 600 H x 1250 W (mm)
