Durable International Truck Parts Non - Driving Axle Spoke Wheel Trailer Axle

Name: Durable International Truck Parts Non - Driving Axle Spoke Wheel Trailer Axle
Brand: GENERAL EAST CO.,LTD
SKU: Truck Trailer Axles , Non-driving axle , Drum Axles , German Type Spoke Wheel Trailer Axle 8T-20T
Price: 226.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ADR,DOT

Model Number: Truck Trailer Axles , Non-driving axle , Drum Axles , German Type Spoke Wheel Trailer Axle 8T-20T

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: CASES

Delivery Time: 10 WORKING DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 UNITS / MONTH

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                truck replacement parts, truck trailer parts


Product Description

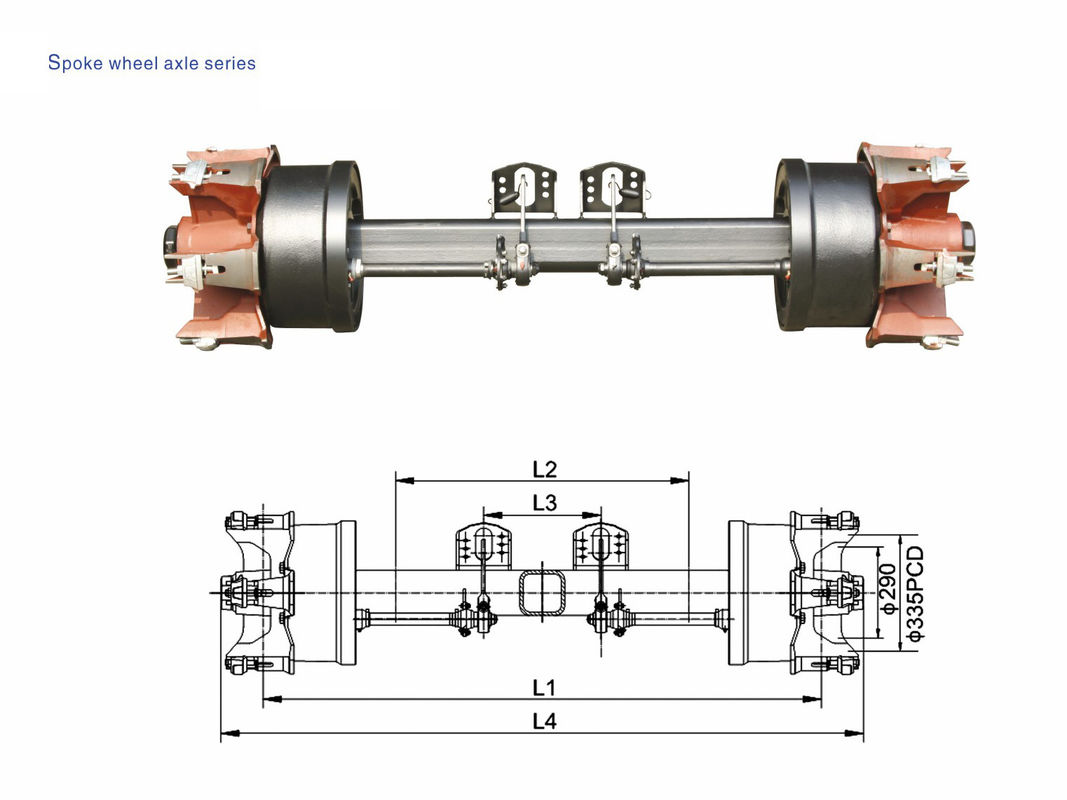

Truck Trailer Axles , Non-driving axle , Drum Axles , German Type Spoke Wheel Trailer Axle 8T-20T

Truck Trailer Axles , Non-driving axle , Drum Axles , German Type Spoke Wheel Trailer Axle 8T-20T
Type of axles			Spoke Wheel Axle
German axles contain drum wheel axle series and spoke wheel axle series. Optional track length available
Optional ABS and automatic slack adjuster available.
Spoke Wheel Trailer Axle Capacity:			8T–20T
Track of Spoke Wheel Trailer Axle			1840MM (size are available)
Brake of Spoke Wheel Trailer Axle			420*200MM (size are available)
Spoke Wheel Trailer Axle Beam			150*150MM (Square) (size are available)
Spoke Wheel Trailer Axle Beam Thickness:			10MM-25MM
Our German type in–board axle is made of high intensity alloy steel with excellent performance:
Features: 1. Unique one-piece, special heat-treated low-alloy steel axle beam offer more stability greater capacity and lighter weight. It is a world-class technology. 2. Integral P type swage straight spindle or tapered spindle with induction-hardened bearing journals -----provide superior fatigue capability. 3.Spider Camshaft and anchor pin bores are machined with reference to the spindle after the welding operation ---increase stability and braking performance 4.XEM OR Q GP brake kits with heavy duty brake return spring. 5. High performance premium non-asbestos brake linings-----extend service life. 6. Improved seal at camshafts-----protect the brake drums from the grease lubricant more safety 7.New 100% tight fit hub cap with additional O ring-----provide optimum seal performance. 8.Grease lubricant is supplied by SHELL and EXXON MOBIL. 9.Axles meet USA FMVSS-121 requirements and Australian ADR 38.

Model		105(km/h) Max. Capacity (kg)	"S" Cam Brake Seriesφ x Width (mm)	Track TR (mm)	Spring Seat Installation LM (mm)	Axle Beam (mm)	Center distance of chamber GM (mm)	Studs (mm)	Spacer (mm)	φ H (mm)	Total Length LP (mm)	Recommended Wheel	Weight
GET	12F67G	12,000	S 420×180	1847	980	□150	392	6xM20x2 ISO	130-20		～2150	8.0-20	420
GET	12F67GT	12,000	S 420×200	1847	980	□150	375	6xM20x2 ISO	130-20		～2150	8.0-20	408
GET	12F68G	12,000	S 420×180	1847	980	□150	392	6xM20x2 ISO	130-24		～2150	8.0-24	420
GET	14F67G	14,000	S 420×200	1846	900	□150	245	6xM20x2 ISO	147-20		～2180	8.0-20	453
GET	14F68G	14,000	S 420×200	1846	900	□150	245	6xM20x2 ISO	147-24		～2190	8.0-24	485
GET	16F67G	16,000	S 420×200	1840	900	□150	243	6xM20x2 ISO	147-20		～2250	8.0-20	493
GET	16F68G	16,000	S 420×200	1840	900	□150	243	6xM20x2 ISO	147-24		～2250	8.0-24	531
GET	18F68G	18000	S 420×200	1840	900	□150	243	6xM20x2 ISO	147-24		～2250	8.0-24	543

Durable International Truck Parts Non - Driving Axle Spoke Wheel Trailer Axle 0

Durable International Truck Parts Non - Driving Axle Spoke Wheel Trailer Axle 1
