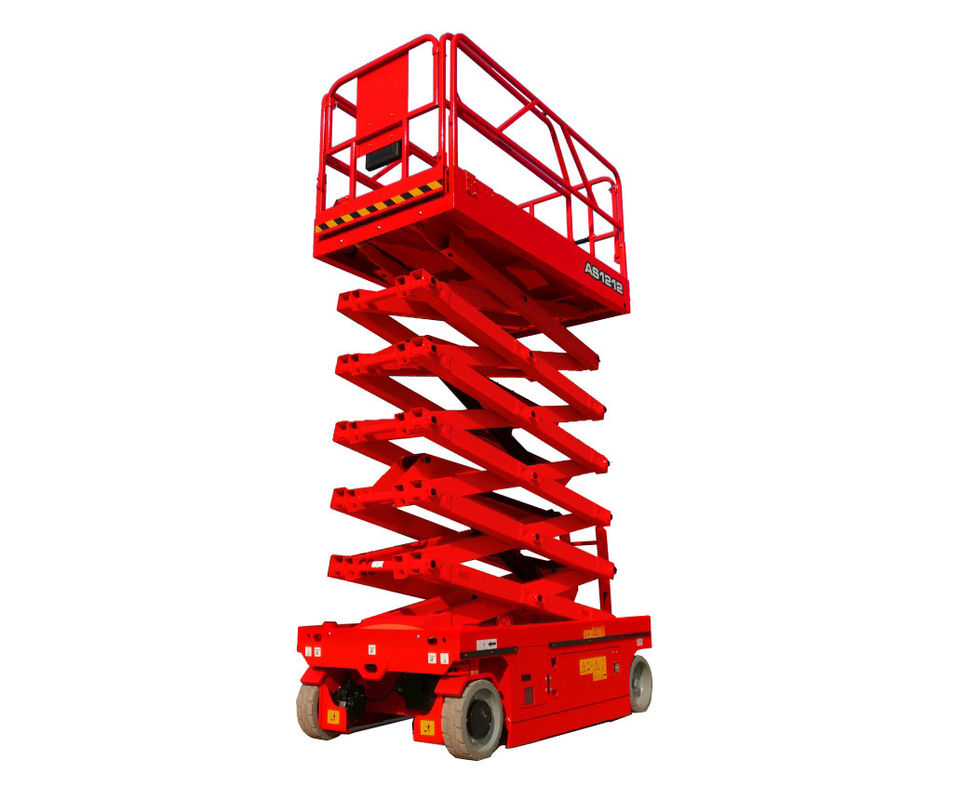

14m Small Electric Scissor Lift 45ft Height Lift Four Wheel Drive GETAS1212

Name: 14m Small Electric Scissor Lift 45ft Height Lift Four Wheel Drive GETAS1212
Brand: GENERAL EAST CO.,LTD
SKU: GETAS1212
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GET

Certification: EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015 Standard Compliance: CE compliance,EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015

Model Number: GETAS1212

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Delivery Time: 15-30 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 500 Units /month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                electric hydraulic scissor lift, motorised scissor lift


Max. Working Height:	14 M	Lift Capacity:	320 Kgs
Platform Extension:	0.9 M	Platform Height:	45ft

Max. Working Height:	14 M
Lift Capacity:	320 Kgs
Platform Extension:	0.9 M
Platform Height:	45ft

Product Description

14m Electric Scissor lifter - Aerial Work Platforms- 45ft height lift - four wheel drive - GETAS1212
Product Description Most durable and reliable scissor stacks Reinforced working platform Advanced charger with voltage protection Higher driver comfort and security
Model	GETAS1212
Lift Capacity (kg)	320
Lift Capacity Extension (kg)	113
Max Platform Occupants	2
Max Working Height (m)	14
Max Platform Height (m)	12
Overall Length (m)	2.47
Overall Width (m)	1.18
Stowed Height-Rails Unfolded (m)	2.56
Stowed Height-Rails Folded (m)	1.96
Platform Size(LXW) (m)	2.26X1.15
Platform Extension Length (m)	0.9
Ground Clearance(Stowed)(m)	0.1
Ground Clearance(Raised)(m)	0.02
Wheelbase (m)	1.85
Turning Radius(Inside/Outside)(m)	0/2.3
Driving Motor
Lifting Motor	24V/3.3kw
Driving Speed(Stowed) (km/h)	3.1
Driving Speed(Raised) (km/h)	0.8
Up/Down Speed (second)	53/90
Battery	4x12V/300Ah
Charger	24V/30A
Max Gradeability (%)	25
Max Slope (°)	1.5/3
Tyre	380X130
Machine Weight kg	3300
Pictures
EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015 Standard Compliance: CE compliance,EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015 Product specifications are subject to change without for notice or obligation.
Technical Parameters
Model	GETAS1212	GETAS4046
Platform Capacity	320 kg	710 lbs
Capacity On Deck Extension	113 kg	250 lbs
Platform Occupants	2	2
Work Height(A+2)	14 m	45ft11in
Overall Length(B)	2.47 m	8ft1in
Overall Width(C)	1.18 m	3ft10in
Overall Height - Rails Down	1.99 m	6ft6in
Overall Height - Rails Up	2.56m	8ft5in
Platform Extension	0.9 m	3ft
Drive Speed (Lowered/Elevated)	3.1/0.8 km/h	1.93/0.5 mph
Lift/Lower Time	65/60 sec	65/60 sec
Gradeability	25%	25%
Max. Slope	1.5°/3°	1.5°/3°
Machine Weight	3,300 kg	7270 lbs
