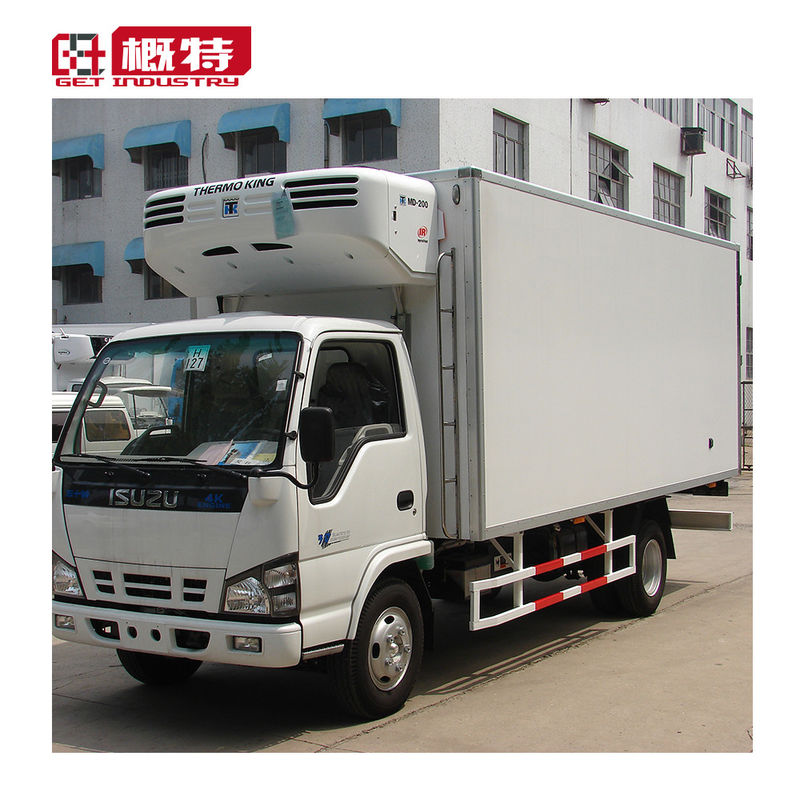

4300x1950x1910 Roll Up Door Refrigerated Insulated Truck Box

Product Details

Place of Origin: China

Brand Name: GET VEHICLES

Certification: ISO 9001/TS16949

Model Number: GET.6XLC./14

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Price: USD 80-100 /Sqm

Packaging Details: SKD Frame box package/CBU Container Package

Delivery Time: 10 working days

Payment Terms: T/T, L/C

Supply Ability: 1000 Sqm/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                4300x1950x1910 Insulated Truck Box, SKD Insulated Truck Box


Box Application:	Expedition Box	Truck Body Material:	FRP / FiberGlass Composite Material
Body Core Material:	PUR -Polyurethanes	Truck Body Portal:	Stainless Steel Mirror Surface
Truck Body Rear Door:	2-wings Opening Hinge Doors / Roll Up Door	Amount Chassis:	ISUZU/Toyota/ FOTON/Ford/JAC
Quick Installation:	Glue Fast Installation 3 People 1.5 Hour	Truck Body Shipment:	SKD/CKD /CBU
Truck Body Working Life:	10-15 Years Per The Working Condition

Box Application:	Expedition Box
Truck Body Material:	FRP / FiberGlass Composite Material
Body Core Material:	PUR -Polyurethanes
Truck Body Portal:	Stainless Steel Mirror Surface
Truck Body Rear Door:	2-wings Opening Hinge Doors / Roll Up Door
Amount Chassis:	ISUZU/Toyota/ FOTON/Ford/JAC
Quick Installation:	Glue Fast Installation 3 People 1.5 Hour
Truck Body Shipment:	SKD/CKD /CBU
Truck Body Working Life:	10-15 Years Per The Working Condition

Product Description

4300x1950x1910 Roll Up door Refrigerated Insulated Truck Box

The characteristics of the refrigerated car body and the introduction of the plate, the insulated car body is the main component of the refrigerated car, and its performance directly determines the special performance of the refrigerated car. The structure of the refrigerated car body usually has:

1. Integral skeleton type hard polyethylene foam board filling structure

2. Integral skeleton polyurethane foaming structure on site

3. Large slab spliced rigid polyurethane injection foam structure

4. Insulation box composed of open " sandwich " panels

5. Insulation box body bonded with fully enclosed polyurethane panels

Food Name	Refrigerating Temperature (℃)	Relative Humidity (%)	Storage Period(Month)	Freezing Point (℃)	Specific Heat(KJ/Kg.℃)		Latent Heat (KJ/Kg)	Storage Capacity (m3/t)
Food Name	Refrigerating Temperature (℃)	Relative Humidity (%)	Storage Period(Month)	Freezing Point (℃)	Above Frozen Point	Below Frozen Point	Latent Heat (KJ/Kg)	Storage Capacity (m3/t)
Apple	-1~1+1	85~95	(2~7)	-2	3.85	2.09	218	7.5
Banana	+11.7	85	14	-1.7	3.35	1.76	251	15.6
Pear	-0.5~+1.5	85~95	1-6	-2	3.77	2.00	281	7.5
Grapes	1~-+3	85~90	(1~4)	-4	3.6	1.84	272	9.4
Onion	-1.5	80	(3)	-1	3.77	1.93	289	9.4
Cabbage	0~+1	85~90	(1~3)	-0.5	3.89	1.97	306	15.6
Potato	+3~+5	85~90	(6)	-1.2
Egg	-1~-0.5	85~85	(8)	-2.2	3.18	1.67	226
Fresh Pork	0~+1.2	85~90	3-10	-2.2	2.26	1.34	126
Frozen Pork	-24~-15	85~90	(2~8)					8.2
Frozen Poultry	-30~-10	80	(3~8)					6.2
Frozen Mutton	-12~-18	80~85	(3~8)					6.2
Frozen Egg	-18		(12)
Sausage	-4~+5	85~90	7~21
Milk Oil	0~+2	80	7					7.5
Sugar	+7~+10	<60	(12~36)	0.2	0.84	1.67
Rice	+1.5	65	(6)	-1.7	1.09
Beer	0~+5		(6)	-2	3.77	1.88	301	10.6

Truck Body Side or Specail Door Options

4300x1950x1910 Roll Up Door Refrigerated Insulated Truck Box 0

What’s the material of your refrigerated truck body?
FAQ:

We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.

What is the CKD and CBU means ?

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
