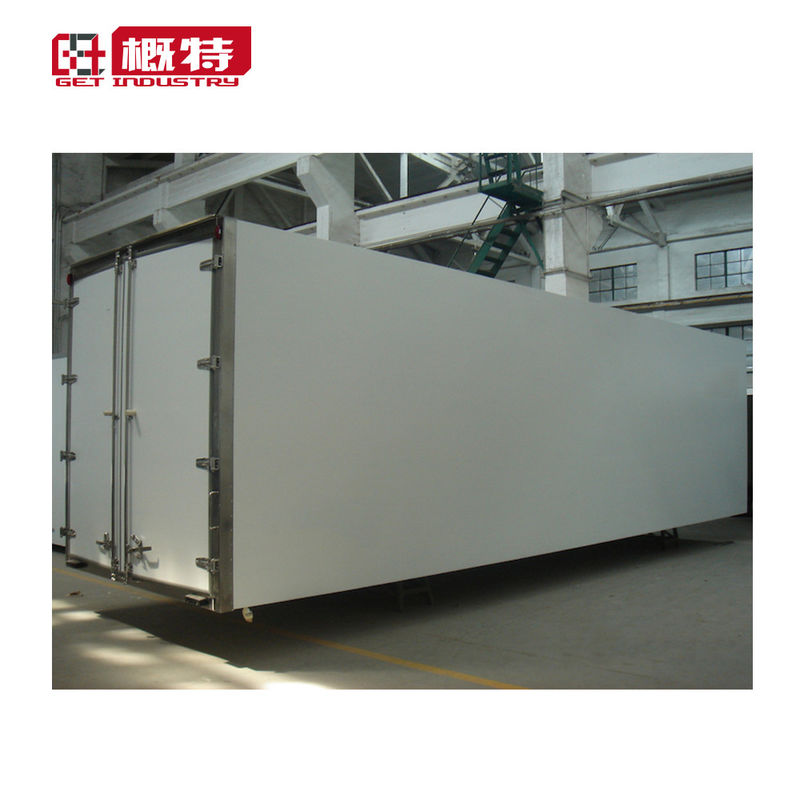

Product Name:	7865x2600x2660 Refrigerated Insulated Truck Box With FRP PU Sandwich Panels	Box Application:	Refrigerated Trucks /Insulated Trucks/expedition Box/RV
Truck Body Rear Door:	2-wings Opening Hinge Doors / Roll Up Door	Quick Installation:	Glue Fast Installation 3 People 1.5 Hour / Unit
Amount Chassis:	ISUZU/Toyota/ FOTON/Ford/JAC	Skin Material:	FRP / FiberGlass Composite Material
Truck Body Core Material:	PUR -Polyurethanes	Portal:	Stainless Steel Mirror Surface
Shipment:	SKD/CKD /CBU	Truck Body Working Life:	10-15 Years Per The Working Condition

K .Value for the Truck Body Box		0.295 W/㎡ ℃
Max. Overall Length	25.8 ft	7,865 mm	0~14750mm can choose
Max. Overall Width	8.53 ft	2,600 mm	0~ 3200 mm can choose
Max. Overall Height	8.73 ft	2,660 mm	0~3200 mm can choose
Max. Floor Thinckness	4 .13 inch	105 mm	45-105mm can choose
Side Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Front Wall Thickness	3 .31 inch	84 mm	45-105mm can choose
Rear Door Panel	3 .31 inch	84 mm	45-105mm can choose
Roof Wall	4 .13 inch	105 mm	45-105mm can choose

6. Other Truckbody Equipment
Ceiling Light	4 (Four) Sets of 12/24V Multi-Voltage LED
Ceiling Light Switch	1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Marker Light	2 Sets Of White LED On Front; 2 Sets Of Red LED On Rear
Insulating Curtain	European Standard -40 C PVC Strip Curtain System For Rear Door
Refrigeration Unit Service Ladder	Stainless Steel
Refrigeration Unit Service Platform	None/Optional

Food Name	Refrigerating Temperature (℃)	Relative Humidity (%)	Storage Period(Month)	Freezing Point (℃)	Specific Heat(KJ/Kg.℃)		Latent Heat (KJ/Kg)	Storage Capacity (m3/t)
Food Name	Refrigerating Temperature (℃)	Relative Humidity (%)	Storage Period(Month)	Freezing Point (℃)	Above Frozen Point	Below Frozen Point	Latent Heat (KJ/Kg)	Storage Capacity (m3/t)
Apple	-1~1+1	85~95	(2~7)	-2	3.85	2.09	218	7.5
Banana	+11.7	85	14	-1.7	3.35	1.76	251	15.6
Pear	-0.5~+1.5	85~95	1-6	-2	3.77	2.00	281	7.5
Grapes	1~-+3	85~90	(1~4)	-4	3.6	1.84	272	9.4
Onion	-1.5	80	(3)	-1	3.77	1.93	289	9.4
Cabbage	0~+1	85~90	(1~3)	-0.5	3.89	1.97	306	15.6
Potato	+3~+5	85~90	(6)	-1.2
Egg	-1~-0.5	85~85	(8)	-2.2	3.18	1.67	226
Fresh Pork	0~+1.2	85~90	3-10	-2.2	2.26	1.34	126
Frozen Pork	-24~-15	85~90	(2~8)					8.2
Frozen Poultry	-30~-10	80	(3~8)					6.2
Frozen Mutton	-12~-18	80~85	(3~8)					6.2
Frozen Egg	-18		(12)
Sausage	-4~+5	85~90	7~21
Milk Oil	0~+2	80	7					7.5
Sugar	+7~+10	<60	(12~36)	0.2	0.84	1.67
Rice	+1.5	65	(6)	-1.7	1.09
Beer	0~+5		(6)	-2	3.77	1.88	301	10.6
