Highlight:
Hinged Door Refrigerated Truck Bodies
, TS16949 Refrigerated Truck Bodies
Product Name: |
Refrigerated Insulated Truck Box With FRP PU Sandwich Panels |
Box Application: |
Refrigerated Trucks /Insulated Trucks/expedition Box/RV |
Skin Material: |
FRP / FiberGlass Composite Material |
Core Material: |
PUR -Polyurethanes |
Portal: |
Stainless Steel Mirror Surface |
Rear Door: |
2-wings Opening Hinge Doors / Roll Up Door |
Amount Chassis: |
ISUZU/Toyota/ FOTON/Ford/JAC |
Quick Installation: |
Glue Fast Installation 3 People 1.5 Hour / Unit |
Shipment: |
SKD/CKD /CBU |
Working Life: |
10-15 Years Per The Working Condition |

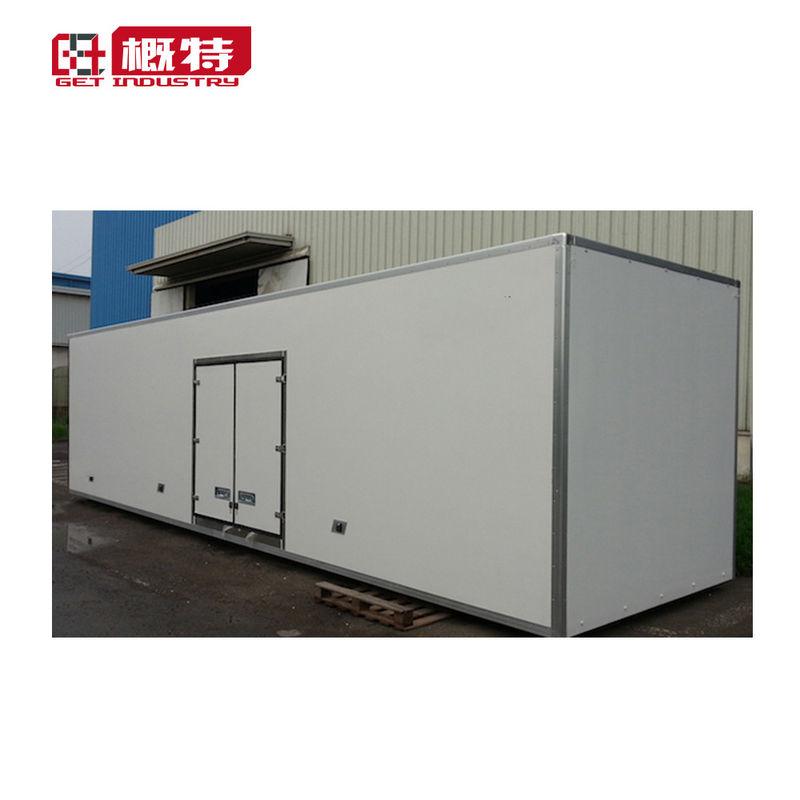

8600x2500x2440 FRP PU Sandwich Panels Hinged door Refrigerated Truck Bodies
System technology of refrigerated carriage:
1 piece assembled "sandwich" plate bonding type, domestic larger refrigerated vehicle production enterprises are using this technology, the use of this technology to produce refrigerated vehicle heat insulation performance is higher.
2 slice assembly injection foaming type.
3 The whole skeleton is injected with foaming type.
4 Vacuum adsorption paste
| K .Value for the Truck Body Box |
|
0.295 W/㎡ ℃ |
|
| Max. Overall Length |
28.22 ft |
8,600 mm |
0~14750mm can choose |
| Max. Overall Width |
8.2 ft |
2,500 mm |
0~ 3200 mm can choose |
| Max. Overall Height |
8.01 ft |
2,440 mm |
0~3200 mm can choose |
| Max. Floor Thinckness |
4 .13 inch |
105 mm |
45-105mm can choose |
| Side Wall Thickness |
3 .31 inch |
84 mm |
45-105mm can choose |
| Front Wall Thickness |
3 .31 inch |
84 mm |
45-105mm can choose |
| Rear Door Panel |
3 .31 inch |
84 mm |
45-105mm can choose |
| Roof Wall |
4 .13 inch |
105 mm |
45-105mm can choose |
Truck Body Rear Door
Refrigerated Storage Requirements of Food and Physical Nature
| Food Name |
Refrigerating Temperature
(℃) |
Relative Humidity
(%) |
Storage Period(Month) |
Freezing Point
(℃) |
Specific Heat(KJ/Kg.℃)
|
Latent Heat
(KJ/Kg) |
Storage Capacity
(m3/t) |
| Above Frozen Point |
Below Frozen Point |
| Apple |
-1~1+1 |
85~95 |
(2~7) |
-2 |
3.85 |
2.09 |
218 |
7.5 |
| Banana |
+11.7 |
85 |
14 |
-1.7 |
3.35 |
1.76 |
251 |
15.6 |
| Pear |
-0.5~+1.5 |
85~95 |
1-6 |
-2 |
3.77 |
2.00 |
281 |
7.5 |
| Grapes |
1~-+3 |
85~90 |
(1~4) |
-4 |
3.6 |
1.84 |
272 |
9.4 |
| Onion |
-1.5 |
80 |
(3) |
-1 |
3.77 |
1.93 |
289 |
9.4 |
| Cabbage |
0~+1 |
85~90 |
(1~3) |
-0.5 |
3.89 |
1.97 |
306 |
15.6 |
| Potato |
+3~+5 |
85~90 |
(6) |
-1.2 |
|
|
|
|
| Egg |
-1~-0.5 |
85~85 |
(8) |
-2.2 |
3.18 |
1.67 |
226 |
|
| Fresh Pork |
0~+1.2 |
85~90 |
3-10 |
-2.2 |
2.26 |
1.34 |
126 |
|
| Frozen Pork |
-24~-15 |
85~90 |
(2~8) |
|
|
|
|
8.2 |
| Frozen Poultry |
-30~-10 |
80 |
(3~8) |
|
|
|
|
6.2 |
| Frozen Mutton |
-12~-18 |
80~85 |
(3~8) |
|
|
|
|
6.2 |
| Frozen Egg |
-18 |
|
(12) |
|
|
|
|
|
| Sausage |
-4~+5 |
85~90 |
7~21 |
|
|
|
|
|
| Milk Oil |
0~+2 |
80 |
7 |
|
|
|
|
7.5 |
| Sugar |
+7~+10 |
<60 |
(12~36) |
0.2 |
0.84 |
1.67 |
|
|
| Rice |
+1.5 |
65 |
(6) |
-1.7 |
1.09 |
|
|
|
| Beer |
0~+5 |
|
(6) |
-2 |
3.77 |
1.88 |
301 |
10.6 |
what is a Insulated / Refrigerated truck trailer
A refrigerator/Refrigerated truck trailer is a van or truck designed to carry perishable freight at specific temperatures. Like refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit), neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent. Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers. Research is done on fuel cell auxiliary power units. The first successful mechanically refrigerated trucks were introduced by the ice cream industry in about 1925.There were around 4 million refrigerated road vehicles in use in 2010 worldwide
What is refrigerated truck box body?
Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.
Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers’ request and designing request.
The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.
What’s the material of your refrigerated truck body?
We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.
What is the CKD and CBU means ?
CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
