Customizable Expedition Overland Travel Motorhomes with Alcove and Roof Skylights

Product Details

Place of Origin: China

Brand Name: GET VEHICLES | RV

Payment & Shipping Terms

Price: $16,300.00 - $16,950.00/units

Packaging Details: 1. CKD type with All panels cut to size (other than departure angle),
2. CBU type with assembled box per your requirements.

by Container Shipment

Supply Ability: 50 Unit/Units per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                truck camper shells, truck camper box


Max Payload:	20T	Size:	Customize
OE NO.:	GET.5EXP.size	Product Name:	Alcove Box-DIY Motorhome TruckBody
Alcove Length:	1,000 Mm -1,500mm, Single Bed Or Queen Bed	Alcove Capacity:	Min. 200kg, Can Customized With Strengthen Embedded
Wall Material:	FRP : Glassfibre Reinforced Polyester.1.5~2.5mm	Thermo Material:	XPS / PIR 40-45kg/cbm
Wall Thickness And Insulation Value:	50(side)/83.5(Roof & Floor) Mm, 0.296 K.m2/W	Roof Skylights:	Roof Skyllight 700 X 500 Mm (HxW)
Windows:	Double Glazing Acrylic Glass Insulation Caravan Windows	Embedded Frame:	Side Awing Fame, Roof Rail ,Rear Spare Tire Frame
Working Experience:	35 Years For Composite Materials	Port:	QINGDAO,CHINA

Max Payload:	20T
Size:	Customize
OE NO.:	GET.5EXP.size
Product Name:	Alcove Box-DIY Motorhome TruckBody
Alcove Length:	1,000 Mm -1,500mm, Single Bed Or Queen Bed
Alcove Capacity:	Min. 200kg, Can Customized With Strengthen Embedded
Wall Material:	FRP : Glassfibre Reinforced Polyester.1.5~2.5mm
Thermo Material:	XPS / PIR 40-45kg/cbm
Wall Thickness And Insulation Value:	50(side)/83.5(Roof & Floor) Mm, 0.296 K.m2/W
Roof Skylights:	Roof Skyllight 700 X 500 Mm (HxW)
Windows:	Double Glazing Acrylic Glass Insulation Caravan Windows
Embedded Frame:	Side Awing Fame, Roof Rail ,Rear Spare Tire Frame
Working Experience:	35 Years For Composite Materials
Port:	QINGDAO,CHINA

Product Description

Product Overview

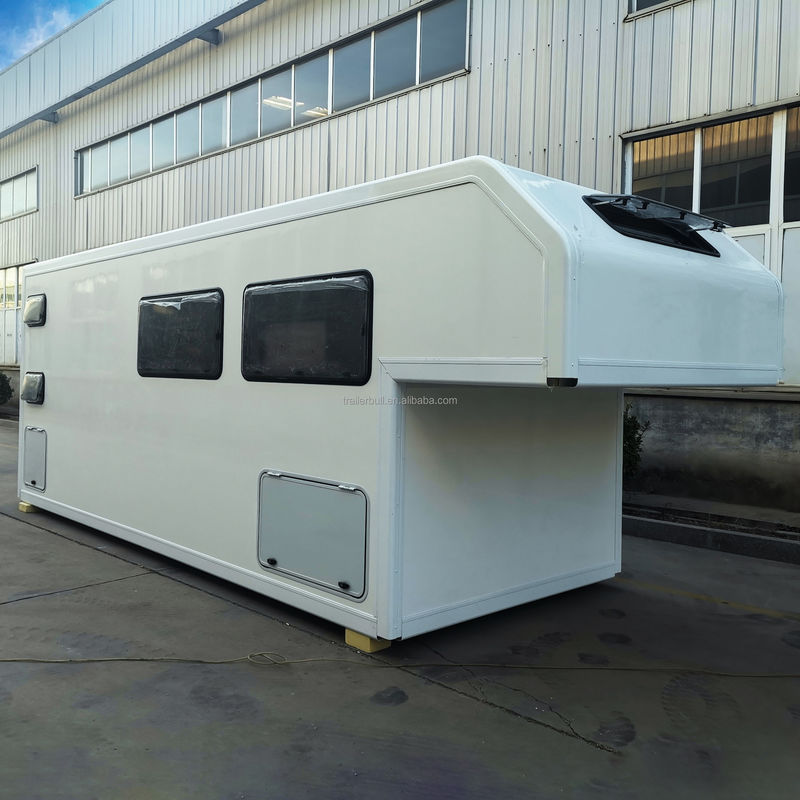

Alcove Truck camper Box-DIY Motorhome TruckBody

The GET industry Alcove-Box concept provides an excellent basis for family, long-term journey, and expedition vehicles. 1. The alcove accommodates either a fixed double bed across its width or two single beds in the direction of travel. This option offers comfortable twin beds and leaves space in the rear for a cozy round sofa. The alcove height can be tailored individually. 2. For families the Alcove-Box can offer bunk and lift beds, generously proportioned seating areas, family sized bathrooms and kitchens as well as large garages with a lowered/retractable floor in your choice. 3. The Alcove-Box is available up to 14.8 m in length and with a variety of wall thicknesses and facings. 4. The Alcove-Box is offered as an FRP or aluminum composite box and is available either fully assembled or as a self-build kit. 5. The integrated Plywood Timber and/or Steel ,Aluminum Embeded in the floor panel with connecting points for the suspension and optimal stiffnes.. An optional double floor for installing water tanks, batteries, and different floor heating solutions is available. This will optimize weight distribution and improve frost resistance. 6. A full range of doors, windows, hatches and skylights is available at prices tailored to your requirements.

FEATURES AT A GLANCE

1. Light net Weight : 30% lighter than Europe Metal frame type.

2. Better insulation: K value < 0.295 W/㎡ ℃

3. High in strength :

* ANTI-PRESSURE:>180MPa

* ANTI-CURVE: >220MPa

CUT STRENGTH: 24.6MPa

4. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

5. Easy assembly and repair at site ,3 work 4 hours for one box.

Right elevation

Interior elevation

Amount Truck elevation

DESIGN & ORDER MEASUREMENTS REQUEST

BOX INSTALLATION PROCESS

FRP-PIE MODULAR PANEL FINISHED BOX SHOW CASE

Windows Side Elevation

Tail Elevation

Door Side Elevation

FRP SANDWICH PANEL FINISHED BOX SHOW CASE

Windows Side Elevation

Tail Elevation

Door Side Elevation

Brief Instruction

GET INDUSTRY TRUCK CAMPERS

GET.6EXP. LIGHT AND STRONGER MODULAR BOX BY TRAILERBULL TRAILERBULL engineered expedition box types are available to accommodate your ideas about Expedition Vehicles. Though the basic needs of globetrotters are much the same, their demands on the vehicle itself differ lone traveler, twosome, family, class of driving license, destination, infrastructure, terrain, duration of the journey … All these criteria ultimately determine the optimum vehicle and the suitable chassis. GET.6EXP can translates these criteria into 3 Expedition box models geared to these different requirements thanks to our durable GRP Sandwich panel composite technology offers top performing strength. TRAILERBULL With different wall panels (FRP-Pie Modular Panel, FRP-Plast Sandwich Panel) to meet all the popular chassis and requirements in the world and already have proven themselves on the actual journeys of many satisfied cust.

FAQ

Q '-What’s the material of your Truck Camper body?
A.- We can produce FRP (Fiberglass Reinforced Plastic), PPGI steel and Aluminum composite with XPS/PU insulation Sandwich panels for the truck camper box. The Core Material can be PU, XPS.

Q '- If want the price, what should offer us the information?
A.-You need offer us the material, size (LxWxH and the thickness of the panel) and quantity of the truck body as the basic
information. The sketch or the design drawing is much appreciated.

Q '-Can you pre-cut openings for windows and doors?
A.-We can offer this service with cost as we have embedded strengthen parts inside, but that will be confirmed before producing. your own Openings can easily be cut with a jigsaw and plastic rated blade, but the embedded strengthen parts cannot make. So if it will work in really bad expedition, you'd better let us pre-cut openings for windows and doors.

Q '-Can you do departure angles?
A.-Yes, we have two sizes of the box shape, one is the standard square shape, the other is the departure angle design. Please mark the desired angle (including dimensions) in the quoting template if you need.

Q '-Can you design subframes?
A.-We have the service of this, but you need supply the full chassis layout to us in advance.

Q '-Can I use different windows and doors than what’s listed on your specification?
A.-Yes. However, we highly recommend our windows and doors as they work in perfect balance with our camper bodies.

Q '-Can I order a camper body with an alcove?
A.-Yes. Please ask us for our alcove quoting template.

Q '–What’s included in the shipment?
A.-1. CKD type with All panels cut to size (other than departure angle), 2. CBU type with assembled box per your requirements.

Q '–Can you help with the interior layout?
A'–No. We are solely a camper body supplier, not a full-scale outfitter/design office.
