Best Insulation Design Allows a temperature change inside the tank down to 0.2 0C every 4 hours
GENERAL EAST CO.,LTD info@trailerbull.com +86-531-59639518
Product Details
Place of Origin: China
Brand Name: GET ENERGY | GET VEHICLES
Payment & Shipping Terms
Price: $27,000.00 - $30,800.00/units
Packaging Details: A. CBU type can ship with Rol-Rol and General Cargo Vessels and The flatbed Container .
B.CKD& SKD Type can ship with Container
Supply Ability: 100 Unit/Units per Month
Use: |
Truck Trailer |
Type: |
Semi-Trailer |
Material: |
Steel |
Size: |
13000x2500x3900 |
Max Payload: |
40000 L |
Tank Series: |
Insulated Tanker Semi Trailer 3 Axles |
Tanker Volume: |
40,000L |
Tanker Application: |
Palm Oil, Crude Oil,Bitumen Heptane,Ethylene, |
Truck Trailer Axle: |
Square Drum Axle Brand FUWA / BPW |
Trailer Suspension: |
Mechanical Tandem / Air Spring / Bogie |
Trailer Brake System: |
Dual Air Brake System, WABCO/HALDEX Relay Valve, OPTIONS: ABS/EBS |
Heat System: |
Hot Steam Pipe Or Diesel Burner System |
Insulation Material:: |
Rock Wool 50mm Optional: 50mm PU Foam |
Trailer Surface: |
Clean SA-2.5 Grade With Marine Paint Of Not Less Than 80μm |
Usage: |
Urban Close Distance Transportation |
Port: |
QINGDAO,CHINA |
Use: |
Truck Trailer |
Type: |
Semi-Trailer |
Material: |
Steel |
Size: |
13000x2500x3900 |
Max Payload: |
40000 L |
Tank Series: |
Insulated Tanker Semi Trailer 3 Axles |
Tanker Volume: |
40,000L |
Tanker Application: |
Palm Oil, Crude Oil,Bitumen Heptane,Ethylene, |
Truck Trailer Axle: |
Square Drum Axle Brand FUWA / BPW |
Trailer Suspension: |
Mechanical Tandem / Air Spring / Bogie |
Trailer Brake System: |
Dual Air Brake System, WABCO/HALDEX Relay Valve, OPTIONS: ABS/EBS |
Heat System: |
Hot Steam Pipe Or Diesel Burner System |
Insulation Material:: |
Rock Wool 50mm Optional: 50mm PU Foam |
Trailer Surface: |
Clean SA-2.5 Grade With Marine Paint Of Not Less Than 80μm |
Usage: |
Urban Close Distance Transportation |
Port: |
QINGDAO,CHINA |
|

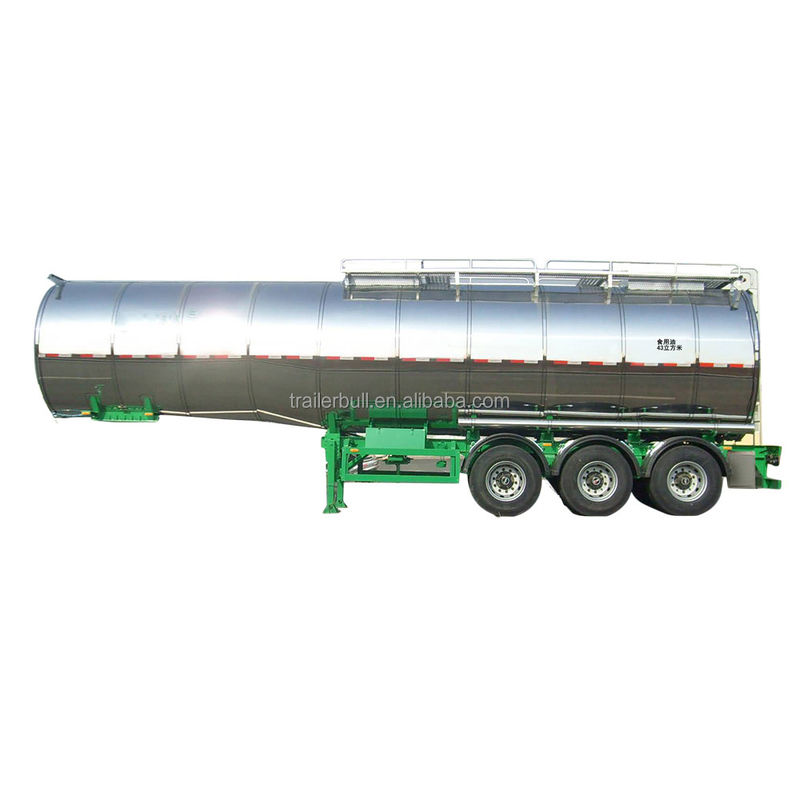

40000L 30T insulated Aluminum Tanker Semi-Trailer 3 axles for Organic Chemical of Dibutyl
|
|
|
|
|
|
|||||
|
Items
|
|
GET9403GHY.BW.AL.Ecomic
|
GET9403GHY.BW.AL.Plus
|
GET9403GHY.BW.AL.Plus+
|
GET9403GHY.BW.AL.Deluxe
|
|||||
|
Tank Material
|
|
Aluminum Alloy
|
|
|
|
|||||
|
Overall Exterior dimension (mm)
|
Length
|
12990
|
|
|
|
|||||
|
|
Width
|
2485
|
|
|
|
|||||
|
|
Height (unload)
|
3900
|
|
|
|
|||||
|
Outside dimension of tank body (mm)
|
Length
|
11550
|
|
|
|
|||||
|
Rated Volume (L)
|
|
40000+5% Breath Space
|
|
|
|
|||||
|
GVW (kg)
|
|
37000
|
|
|
|
|||||
|
Curb Weight (kg)
|
|
7000
|
|
|
|
|||||
|
Rated payload (kg)
|
|
30000
|
|
|
|
|||||
|
Wheel base (mm)
|
|
7200+1350+1350
|
|
|
|
|||||
|
Tread (mm)
|
Front
|
|
|
|
|
|||||
|
|
Rear
|
/2050/2050/2050
|
|
|
|
|||||
|
Front/Rear Overhang (mm)
|
|
1440
|
|
|
|
|||||
|
Approach/Departure angle (°)
|
|
/22
|
|
|
|
|||||
|
Rated payload of 5th wheel
|
|
16000
|
|
|
|
|||||
|
Trailer Running System
|
Trailer Axle
|
GET SQUARE AXLE 12T*2
|
BPW 12T*2
|
GET SQUARE AXLE12T*2
|
BPW 12T*2
|
|||||
|
|
Tires
|
425/65R22.5*6
|
|
|
|
|||||
|
|
Suspension
|
Tandem Steel Leaf Spring Mechinical Suspension
|
|
Air Bag Spring Suspension
|
|
|||||
|
|
Brake System
|
Dual air brake system, Wabco relay emergency valve with ABS OPTIONS: EBS
|
|
|
|
|||||
|
|
Kingpin:
|
3.5” /2” JOST.
|
|
|
|
|||||
|
|
Landing Gear:
|
2 speed road side winding with sand shoe,Type: JOST C200T.
|
|
|
|
|||||
|
|
Electrical System:
|
Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
|
|
|
|
|||||
|
Temperature Control System
|
Insulation
Material: |
Rock Wool 50mm
Optional: 50mm PU Foam |
|
|
|
||||
|
|
Heat System
|
We supply three type of Heat System for the bitumen or Crude Oil Transport
1. Outlet Hot Steam with Inside Pipe System 2. Exhaust Heat System with Tank Inside Pipe 3. Diesel Powered Burner with Inner Heated Oil Pipes |
|
|
|
||||
|
Tank Safety Valves
|
Manhole Cover
|
Aluminum Material Size : φ460, 560,580 witih P/V vent Valves and Safety Valves Optional : Stainless Steel
|
|
|
|
||||
|
|
Emergency Foot Valves
|
Aluminum Alloy Material size : 2" (80) , 3" (100) ,Pneumatic Control Optional : Stainless Steel
|
|
|
|
||||
|
|
API Adaptor Valves
|
Aluminum Alloy Material size : 3' (100) API Adaptor Valves. Optional : Stainless Steel
|
|
|
|
||||
|
|
Pneumatic Control System
|
|
|
|
|
||||
|
Suitable Liqulid Mediums
|
|
Heptane,Ethylene,Cyclohexylamine,acetic acid,methyl alcohol,butyl oxide,methylmethane, Jet,Gasline, Disel, Water etc.
|
|
|
|
||||
|
Others:
|
|
Spare Tire Carrier: Equipped two sets per chassis without spare tire.
Side Guard: Steel. Tool Box: Equipped one set. Painting: Color by customer’s requirement. Marking: By customer’s requirement. Options: Oil Tank: 300L carbon steel. |
|
|
|
||||
