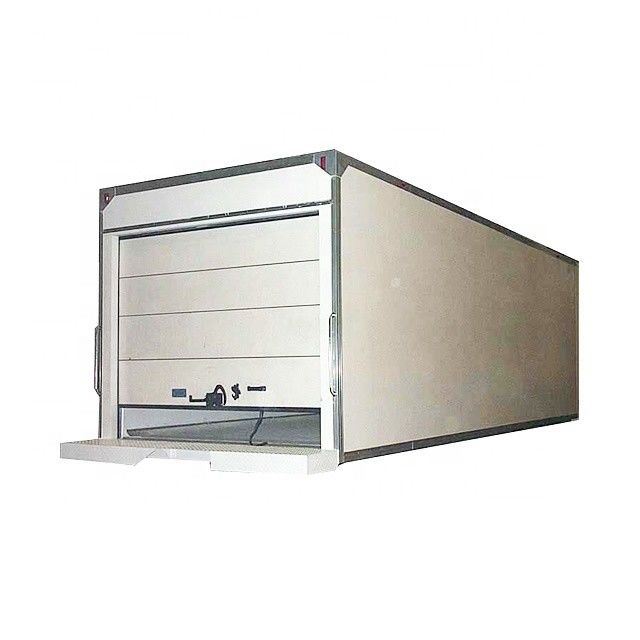

AIRCRAFT FEED TRUCK BODY
WITH ALL-PLASTIC FRP BOX _TRUCK BODY FOR AIRCRACFT FEED TRUCKS
|
|
|
|
|
1. MODEL:
|
|
|
AIRCRAFT FEED TRUCK BODY
|
|
ALL-PLASTIC FRP BOX is a pre-installed truck box which can be mounted directly onto the chassis of the vehicle using its lower fixed frame, This TRUCK BODY made with our All-plastic Van body panels, can equip the Thermoking or carrier refrigerator units to transport the frozen or fresh food and vegetables with temperature from -18 ℃ to 15℃. can also be refitted to be the RV MOTORHOME , expedition TRUCK BODY or Camper box with inside Furniture layout.
|
|
|
|
|
2. SPECIAL REQUIREMENTS
|
|
|
|
|
REAR DOOR
|
AUTOMATIC ROLL UP REAR DOOR
|
|
|
|
FRONT DOOR
|
AUTOMATIC ROLL UP REAR DOOR
|
|
|
|
STEPS
|
STEPS TO THE PLANE DOOR FOR THE CART OR HAND FORLIFT EQUIPMENTS
|
|
|
|
STRENGTHED FLOOR
|
SPECIAL EMBEDDED FLOOR WITH SUPER STRENGTH DESIGN FOR THE SCISSOR HYDRAULIC SYSTEM INSTALLATION
|
|
|
|
3. GENERAL
|
|
|
|
|
K .Value for the Composite Box
|
|
0.295 W/㎡ ℃
|
|
|
Max. Overall Length
|
48 ft
|
14,750 mm
|
0~14750mm can choose
|
|
Max. Overall Width
|
10 ft
|
3,200 mm
|
0~ 3200 mm can choose
|
|
Max. Overall Height
|
10 ft
|
3,200 mm
|
0~3200 mm can choose
|
|
Max. Floor Thinckness
|
4 .13 inch
|
105 mm
|
45-105mm can choose
|
|
Side Wall Thickness
|
3 .31 inch
|
84 mm
|
45-105mm can choose
|
|
Front Wall Thickness
|
. inch
|
|
ROLL UP DOOR
|
|
Rear Door Panel
|
. inch
|
|
ROLL UP DOOR
|
|
Roof Wall
|
4 .13 inch
|
105 mm
|
45-105mm can choose
|
|
4. Box Structure
|
|
|
|
|
super Structure
|
self-supporting body, without cross bars , inside and outside skin made of glass fibre reinforced polyester, reinforced with Z-Straps , the Core of hard foam with best insulation properties.
Without metallic carrier elements = without direct heat conductivity
The body are water tight
the plastic elements are flam resistant
|
|
|
|
Rear Wall
|
ROLL UP DOOR
|
|
|
|
Portal
|
stainless Steel
|
|
|
|
Surface
|
The Plastic elements are painted white, White gelcoat colour both side, uv resistant, food grade approval
|
|
|
|
5. Installation:
|
|
|
|
|
It is very easy to assemble our insulated bodies, because applying polyurethane adhesive to the joint area of the all-plastic
sandwich panels, which ensures the joint reliability and optimum insulation, forms them. All bodies ckd we provide have included
all necessary accessories such as aluminum angles, aluminum corner, sealing glues, screws, side guards, etc. Therefore, you can
assemble them by yourself without purchasing any material. Generally, 3-4 workers can assemble 5-6 bodies everyday. Moreover, at
the beginning we will assign our engineers to supply you some technical guidance.
|
|
|
|
|
CKD Panel Kits
|
1. Prepare the chassis
2. Mount the partial Sub-Chassis and the floor plate on the chassis with Supplied U bolts and other parts
3. Mount the side, front and the roof and the Rear Door Portal and the door with Glues approx.1.5 hours, with a set time At Least 8 h at +20 ℃ .
4. Install the required options
5. Finishing
|
|
|
|
CBU Box
|
1.Prepare the chassis
2. Mount the BOX tog with subframes on the chassis
3. Install the required options
4. Finishing
|
|
|
|
6. Aluminum Profiles :
|
|
|
|
|
The used aluminum profile andonized silver , heat treated , harden metal which is made 6063 alloys,to wear resistance and strength
to the box.
|
|
|
|
|
External Angle
|
Extruded Angle 100 X 150 X 3mm,Made Of Aluminum Include Front , Rear, Top And Lower Round Corners. To Protect The Corner And The
Side Of The Van.
|
|
|
|
Interior wrapping edge
|
Made of aluminum only the top side to arrange the wire of the light.
|
|
|
|
External wrapping edge
|
Made of aluminum alloy to protect the side edge of the van,vertical in the front is half round model, horizontal side is 90 degree
angle model.
|
|
|
|
7. Box profiles options:
|
|
|
|
|
Rear Doors
|
Tri-Wing rear door
|
|
|
|
|
Roll up rear door
|
|
|
|
|
Single-open side door
|
|
|
|
|
Double-open side door
|
|
|
|
Curtains for doors
|
Side door curtains
|
|
|
|
|
Rear door curtains
|
|
|
|
Floor profiles
|
M-coat floor-composite type
|
|
|
|
|
Alu. Checked plate floor 3mm -composite type
|
|
|
|
|
Stainless steel plate floor 1.5mm -composite type
|
|
|
|
|
Side air duct - alu.u channel vertical direction
|
|
|
|
|
Kick plate-aluminum 300*2mm-composite type
|
|
|
|
Aluminum Profiles
|
|
|
|
|
Cargo profiles
|
Cargo fix track
|
|
|
|
|
Side door steps
|
|
|
|
|
Evaporator proctor
|
|
|
|
|
Moveable compartment system ( box >5000mm can choose)
|
|
|
|
Meat carcass hanger system
|
Meat hang box design 3,4,5, 6 lines of sliding rail
|
|
|
|
|
Meat hooks
|
|
|
|
8. Temperature control
|
|
|
|
|
Refrigeration units
|
Refrigeration units: thermoking or Carrier with standby
|
|
|
|
Temperature sensor
|
Temperature sensors for medicine
two constant monitoring sensors, with the led interface panel in driver’s room for continuous monitoring of temperature, equipped with an alarm system.
|
|
|
|
|
Temperature sensors for normal carogs:
one constant monitoring sensors, with the led interface panel in driver’s room for continuous monitoring of temperature, equipped with an alarm system.
|
|
|
|
9. Hydraulic tail plate voltage: cantilever type 12/24v dc
|
|
|
|
|
1t model
|
Capacity:1000kgs
|
|
|
|
|
height: ≤1300mm
|
|
|
|
|
weight: 425kg (steel)
|
|
|
|
|
standard platform widthxheight: 1800*1650 mm
|
|
|
|
1.5t model
|
Capacity:1500kgs
|
|
|
|
|
height: ≤1300mm
|
|
|
|
|
weight: 620kg (steel)
|
|
|
|
|
standard platform widthxheight: 2300*1800 mm
|
|
|
|
2t model
|
Capacity:2000kgs
|
|
|
|
|
height: ≤1300mm
|
|
|
|
|
weight: 620kg (steel)
|
|
|
|
|
standard platform widthxheight: 2300*1800 mm
|
|
|
