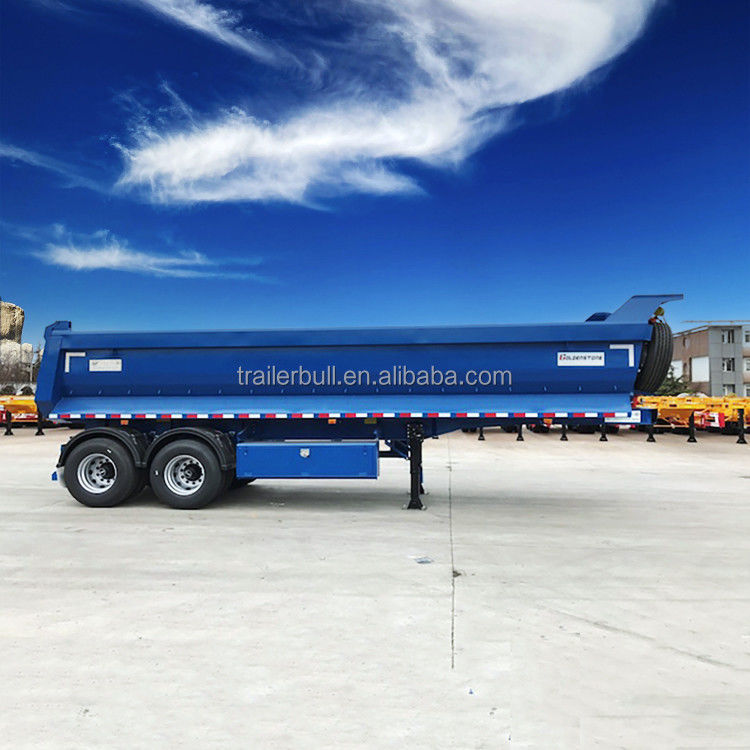

22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials

22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials

Product Details

Place of Origin: China

Brand Name: GET VEHICLES | CIMC-TRAILERBULL

Payment & Shipping Terms

Price: $18,800.00/units

Get Best Price

Product Details

Product Description
Product Details
Highlight:

22 Cbm Rounded Tipper Semi Trailer

,

Soil Construction Tipper Semi Trailer

Use:
Truck Trailer
Type:
Semi-Trailer, Tipper Semi-trailers
Material:
Steel
Size:
9,250x2,500x3,325
Max Payload:
>30000 Kg
Body:
Rounded Carbon Steel Body
Dump Box Inner Dimension(mm):
8,440x2,300x1,200 Mm
Tipper Trailer Dimension /Volume:
9,250x2,500x3,325 /22 CBM
Dump Body Material:
Floor: 6mm Side: 3mm, NM450
Axles:
Tandem Axles 13T Square Drum Type
Chassis:
High Strength Carbon Steel
Hydraulic System:
HYVA Front Lift Hydraulic System
Suspension:
Mechanical Suspension / Air Suspension
Application:
Sticky Sand Soil Construction Materials
Use:
Truck Trailer
Type:
Semi-Trailer, Tipper Semi-trailers
Material:
Steel
Size:
9,250x2,500x3,325
Max Payload:
>30000 Kg
Body:
Rounded Carbon Steel Body
Dump Box Inner Dimension(mm):
8,440x2,300x1,200 Mm
Tipper Trailer Dimension /Volume:
9,250x2,500x3,325 /22 CBM
Dump Body Material:
Floor: 6mm Side: 3mm, NM450
Axles:
Tandem Axles 13T Square Drum Type
Chassis:
High Strength Carbon Steel
Hydraulic System:
HYVA Front Lift Hydraulic System
Suspension:
Mechanical Suspension / Air Suspension
Application:
Sticky Sand Soil Construction Materials
Product Description



Rounded Tipper Semi Trailer with 2 Axles for city construction
GET-TraileBull Rounded tipper trailers with their rounded steel bodies represent the all-purpose transport solution for building materials. Thanks to their excellent wear resistance, these tippers are perfect for abrasive materials.
Type
Tipper semi-trailers GET.9UZX.2/22
Body
Rounded steel body :8,440x2,300x1,200 mm
Volume
22 m³
Tipper Dimension
9,250x2,500x3,325
Body depth
1,200~1500 mm
Axles
2
Chassis
Carbon Steel
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 0
Your Benefits
More payload with the new chassis generation.

More safety: the Wabco best Brake System give you an safe Drive at all times.
Trailer chassis concept for use with two and three-axle semi-trailer tractor units.

Trailer chassis concept for use with two and three-axle semi-trailer tractor units.
Wear-resistant fine-grain rounded steel body for durability, low maintenance and high value retention.

Robust, welded steel chassis and running gear suitable for off-road terrain.
Body shape prevents goods from sticking. This increases safety when unloading.


22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 1
Trailer Chassis
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 2



Standard chassis
The steel chassis is durable, low-maintenance and ideal for off-road operations. Its torsionally rigid construction ensures that the chassis has excellent tipping stability. Optional hot galvanising for the best possible corrosion protection.
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 3



Heavy-duty chassis *
Designed for use on poor-quality roads and extreme winter conditions, the Heavy-Duty running gear delivers maximum value retention and excellent safety. Optional hot galvanising for the best possible corrosion protection.
Running Gear
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 4

Air Suspension Optionals

Outstanding driving characteristics, thanks to BPW /SAF air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 5

Lifting axle

The lifting axle and starting aid function improve efficiency, driving safety and traction off-road.
Lighting
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 6

Lighting

A range of LED lighting options further ensures the best possible safety on the road and during operations.
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 7

Flashing side marking lights

The flashing side marking lights (SML) help to avoid accidents when turning. When the driver indicates, the side marking lights on the semi-trailer also flash, signalling to other road users that the vehicle is about to turn.
Tipper Body
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 8

Rounded steel body

The flat, wider floor of the robust rounded steel body has a lower centre of gravity, increasing driving stability and tipping safety. Goods slide out effectively from the trailer, thanks to the shape of the rounded body.
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 9

Floor and side wall thicknesses

Different floor and side wall thicknesses are matched to your applications.
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 10

Wear plates *

In the event of frequent loading and unloading of abrasive materials, the particularly exposed areas of the body can be equipped with wear plates, extending their service life.
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 11

Sliding tarpaulin *

Convenient and secure tarpaulin system. The tarpaulin can be quickly and easily operated from the ground. Available as a manual or electric version.
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 12

Roller tarpaulin *

Easy-to-operate and robust well cover protects the cargo from moisture and dirt, especially during transport. An optional quick-release clamping mechanism saves time and simplifies operation.
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 13

Plastic cladding *

This also prevents bulk goods from adhering to the floor of the body. It is also possible to evenly unload at a reduced tilting angle. The plastic lining increases safety during tipping.
Main Parameters
22 Cbm Rounded Tipper Semi Trailer For Sticky Sand Soil Construction Materials 14
Weights
permitted

technical

Total permissible weight (GG)
36,000 kg

39,000 kg

Axle load (AL)
24,000 kg

27,000 kg

Fifth wheel load (SL)
11,000 kg

12,000 kg

Tyres
385/65 R 22.5"



Dimensions
laden

unladen

5th Wheel Height – min. recommendation to max. permissible (AG )
1,140 mm –1,265 mm

1,170 mm –1,295 mm

Semi-trailer height – semi-trailer horizontal
1,150 mm

1,180 mm

Axle spacing
1,310 mm

1,310 mm

Wheelbase (WB)
6200 mm

6000 mm

Body height (BH)
1,300 mm
1,460 mm
1,560mm
1,660 mm
Loading capacity with chute (V)
21.2 m³
24.0 m³
25.8 m³
27.5 m³
Overall height, unladen, horizontal, without roof cover (BD)
2,765 mm
2,925 mm
3,025 mm
3,125 mm
Overall height, unladen, tipped, without roof cover (TH)
7,770 mm
7,850 mm
7,940 mm
8,030 mm
Internal length with chute (L)
7,300 mm
7,300 mm
7,300 mm
7,300 mm
Front overhang with body only (QX)
795 mm
840 mm
840 mm
840 mm
Max. tipping angle
45 degrees
45 degrees
45 degrees
45 degrees
Height from fifth wheel to body floor (C)
285 mm
285 mm
285 mm
285 mm
Centre of rear axle to rear edge of body/chute
1,410 mm
1,410 mm
1,410 mm
1,410 mm
