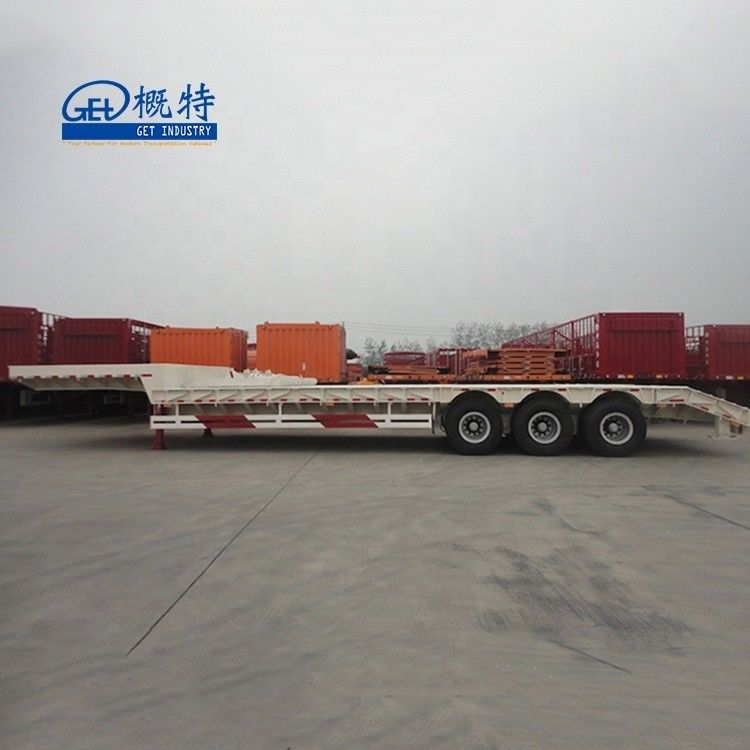

Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN

Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN

Product Details

Place of Origin: China

Brand Name: G.E.T

Certification: DOT

Payment & Shipping Terms

Price: $50,000.00 - $53,000.00/units

Packaging Details: 2 or 3 units packed tog with bulk shipment or roll-roll shipment

Supply Ability: 20 Unit/Units per Quarter

Get Best Price

Product Details

Product Description
Product Details
Highlight:

lowboy semi trailer

,

low deck trailer

Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Size:
15000 X 3800 X1750 Mm
Max Payload:
150T
Low Bed Trailer Type:
Straight Beam Loading Platform Design
Trailer Application:
Super Heavy Machine / Industry Equipments / Construction Machines
Trailer Material:
ASTM A572 Grade 50 Or Equivalent (Q345)
Trailer Suspension:
Rigid Suspension System With Capacity Of 120T
Trailer King Pin:
Jost Brand 2" And 3.5"
Trailer Tire:
12R22.5 Tubeless Triangle / Michelin
Low Bed Loading Ramp:
Spring Assisted Mechanical Loading Ramp, Option Hydraulic Ramp
Trailer Brake:
Dual Air Brake System, WABCO Relay Valve, OPTIONS: ABS/EBS
Trailer Surface:
Electrophoretic Spraying
Trailer Lights:
OPTRONICS 12-volt LED Lighting With Phillips Mold Seal Wiring Harness,
Port:
QINGDAO,CHINA
Use:
Truck Trailer
Type:
Semi-Trailer
Material:
Steel
Size:
15000 X 3800 X1750 Mm
Max Payload:
150T
Low Bed Trailer Type:
Straight Beam Loading Platform Design
Trailer Application:
Super Heavy Machine / Industry Equipments / Construction Machines
Trailer Material:
ASTM A572 Grade 50 Or Equivalent (Q345)
Trailer Suspension:
Rigid Suspension System With Capacity Of 120T
Trailer King Pin:
Jost Brand 2" And 3.5"
Trailer Tire:
12R22.5 Tubeless Triangle / Michelin
Low Bed Loading Ramp:
Spring Assisted Mechanical Loading Ramp, Option Hydraulic Ramp
Trailer Brake:
Dual Air Brake System, WABCO Relay Valve, OPTIONS: ABS/EBS
Trailer Surface:
Electrophoretic Spraying
Trailer Lights:
OPTRONICS 12-volt LED Lighting With Phillips Mold Seal Wiring Harness,
Port:
QINGDAO,CHINA
Product Description
Details Images
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 0
Trailer & Tanker Shipment
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 1
Product Paramenters
Straight flatbed Platform 120T 150T Rigid Suspension Fixed Gooseneck FGN low loader
LOW BED SEMI TRAILER
1. MODEL:
GET9150TD
This Low bed semi trailer is designed stright loading platform for transporting heavy construction machine or heavy and higher facilities . it meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications.
2. GENERAL
Overall Length
49.21 ft
15,000 mm
Can Customized design from 12m to 18m
Overall Width
12.47 ft
3,800 mm
Foldable Extend Part unfold : 4520mm
Overall Height
5.77 ft
1,760 mm
loading Ramp hanged
Gooseneck Length
11.48 ft
3,500 mm
Loading Platform Length
33.22 ft
10,125 mm
Loading Platform Height
4.27 ft
1,300 mm
Fifth Wheel Height
4.08 ft
1,245 mm
Kingpin Location
2.13 ft
650 mm
From the rear face of the front bolster
Landing Gear Location
7.55 ft
2,300 mm
From the kingpin center
Axle Spread
4.33 ft
1,320 mm
Tandem Location
30.18 ft
9,200 mm
From Kingpin to Front Suspension Hanger
Tare Weight
33,070 Ibm
15,000. kg
Payload
33,070 Ibm
15,000. kg
Can Customized design from 20T to 150 T
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 2
3. STEEL STRUCTURE AND COMPONENTS
Main beam
Auto-welt Main Beam With High strength low alloy steel with 350 MPa yield hot-rolled I-beam, ASTM A572 Grade 50 or equivalent (Q345)
Flanges
High strength low alloy steel with 350 MPa yield hot-rolled I-beam, ASTM A572 Grade 50 or equivalent (Q345)
Low Platform Floor
1/5" ( 5mm) Thickness ASTM A572 grade 50 Checked Steel Plate
Low Platform type
Standard Straight Platform with loading ramp
Option: 1.Middle Concavity Design
2. Tire Exposed Straight Platform
Upper coupler
1/4” pick up plate with JOST 2” diameter square type king pin per SAE standard
Loading Ramp
Standard Spring assisted Mechinical loading ramp loading capacity 50T
Options: Hydraulic Loading ramp with pump
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 3
4.TRAILER RUNNING GEAR
Landing gear
25T ( 55,000 lbs) capacity, 2-speed 19” travel with low “T” shoes
Crank handle is located on the driver’s side of the chassis.
Suspension
Super Heavy Capacity Mechanical tandem suspension with leaf springs.
Options: Air Suspension , Bogie Suspension
Axles
Rigid Suspension System with capacity of 120T

190mm (7 1/2") Square axles with 30 T capacity, 1254mm (49.37” ) track, S311x 190mm (12.24”X7.48”) brake; hub internally vented;
10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options)
Wheels
steel disc wheel, 10 holes ISO, ; Option: Aluminum alloy rim
Tires
Tubeless Tires , 8.25R15,8.25R20,11.00R22.5,12.00R22.5,12.00R20,385/65R22.5,425/65R22.5 ,
Manufactuter: Double Coin, Triangle, Michelin, Firestone
Brake System
Dual line pneumatic brake, SAE hose and connector, WABCO relay emergency valve, OPTIONS: ABS brake system
T30/30 spring brake chambers, T30 brake chambers
3/8” blue air tube for control and 3/8” red for supply, 40L air tanks
Electrical
OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards.
Receptacle:7 way socket SAE standard, China
Wiring: Electric cable protected by PVC conduit on main frame
Painting
Electrophoretic spraying, that is, water-based coating, can be dissociated into a water-soluble film-forming material which can form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of the object to form a coating film
MISC
GET standard marking, document holder, conspicuity tape, Steel or black rubber mud flaps
Option
Hubodometer, PSI tire inflation system
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 4

CUSTOMIZED DESIGN

Based on full understanding and analysis about transportation environment of various regions, refer to the millions of trailers’
producing experience and customer’s private condition, we design all the trailers privately to different customers..
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 5

TBEST STEEL CONSTRUCTION

Material choose the High strength low alloy steel with 350 mpa yield strength is used for welded I-beam and 235 mpa in other
fabricated parts and the original ALCOA aluminum for the tanks and dry logistic box.
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 6

AXLE SYSTEM

High quality axle from world brand of BPW, SAF TO China Famous brand FUWA, L1 with strong bearing capacity from 9T to 20T and ABS options to fit full demand of requirements.
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 7

SUSPENSION SYSTEM

High quality suspension from world brand of BPW, SAF TO China Famous brand FUWA, L1, from Leaf-spring plate type, bogie type to Air-Spring type and rubber type to fit different requirements of the cargo delivery condition
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 8

TIRES AND RIMS

High quality tires from world brand of MICHELIN, BRIDGESTONE, PIRELLI to China Brand DOUBLE COIN, TRI-ANGLE, Coupled with RIMS
from STEEL to ALUMINUM.
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 9

SAFETY CONTROL SYSTEM

World brand brake system WABCO Valves with ABS or EBS to keep the trailers under control at any cases.
Low Bed Trailer Families
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 10
Company Profile
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 11
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 12
More Truck Trailers
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN 13
FAQ

What is a Low bed Semi-Trailer ?

Lowbed trailer (low boy in US, low-loader in British English, low-bed in western Canada and South Africa or float in Australia and eastern Canada) is a semi-trailer with two drops in deck height: one right after the gooseneck and one right before the wheels. This allows the deck to be extremely low compared with other trailers. It offers the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers cannot. Lowboys are used to haul heavy equipment such as bulldozers, industrial equipment etc.

Are we manufacturers or traders? Why you are just show Trade company ? ?

We are manufacturer, we have 3 factories in China for different Vehicles and projects with different names for 30 years.We do business like to visit them and meeting in face to face before , so we have no Stores in Internet, but this year, the virus reason , we can not travel again , have to make it in internet. GET industry is a new company established in Jinan City , the Center of China Havy Machine to organize the international business of all our factories , so it is just show as a trading company in Alibaba.

Tags:

gooseneck lowboy trailer,

lowboy trailer,

low loader trailer

Categories

Refrigerated Truck Box

(78)

Truck Camper Motorhomes

(82)

DIY RV Recreational Vehicle Kits

(157)

Flat Bed Semi Trailer

(68)

Container Chassis Trailer

(57)

Tipper Truck Trailers

(22)

Low Bed Semi Trailer

(29)

Fuel Tank Trailers

(89)

Insulated Tanker Trailers

(39)

Liquefied Gas Tank

(38)

Pneumatic Cement Tanker

(11)

Reefer Semi Trailer

(39)

Walk In Cold Rooms

(15)

Heavy Duty Cargo Truck

(19)

Heavy Construction Machine

(30)

Special Trucks

(20)

Truck Trailer Spare Parts

(60)
Contacts
Contacts: Mr. Happle Hoo
Tel: +86-531-59639518
Fax: 86-531-59639518
Contact Now
Mail Us
Our Products
Similar Products
Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN Video

Straight Beam Low Bed Semi Trailer 120T 150T Rigid Suspension Fixed Gooseneck FGN

Get Best Price
Dual Circuit WABCO Brake 13m FGN Low Bed Truck Semi Trailer for Excavator Transport Video

Dual Circuit WABCO Brake 13m FGN Low Bed Truck Semi Trailer for Excavator Transport

Get Best Price
Super Heavy Duty 4 Axle 13m FGN Low Bed Truck Semi-Trailer with Hydraulic Tail Ramp Video

Super Heavy Duty 4 Axle 13m FGN Low Bed Truck Semi-Trailer with Hydraulic Tail Ramp

Get Best Price
Max. Payload 60T Exterior Dimension 8m*3 Heavy Construction Machine Transit Fixed Gooseneck FGN Low Bed Trailer Video

Max. Payload 60T Exterior Dimension 8m*3 Heavy Construction Machine Transit Fixed Gooseneck FGN Low Bed Trailer

Get Best Price
80 Ton Capacity FGN Low Bed Trailers with Wabco Brake System and Loading Deck 596 x 3 Video

80 Ton Capacity FGN Low Bed Trailers with Wabco Brake System and Loading Deck 596 x 3

Get Best Price
52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation Video

52ft Double Deck Flatbed Truck Semi Trailer for General Cargo and Pipe Transportation

Get Best Price
Fixed Gooseneck FGN Low Bed Semi Trailer 60 Ton Video

Fixed Gooseneck FGN Low Bed Semi Trailer 60 Ton

Get Best Price
16.5m 80t Capacity Low Bed Semi Trailer With 4 Axles Video

16.5m 80t Capacity Low Bed Semi Trailer With 4 Axles

Get Best Price
14m 80t Capacity 4 Axles Semi Lowbed Trailer Video

14m 80t Capacity 4 Axles Semi Lowbed Trailer

Get Best Price
80t Capacity 4 Axles Fixed Gooseneck Fgn Low Bed Semi Trailer Video

80t Capacity 4 Axles Fixed Gooseneck Fgn Low Bed Semi Trailer

Get Best Price
16.5m 60t Capacity 3 Axle Low Bed Trailer Heavy Duty Video

16.5m 60t Capacity 3 Axle Low Bed Trailer Heavy Duty

Get Best Price
About Us
Company Profile
Factory Tour
Quality Control
Contact Us
Sitemap
Privacy Policy
products

Refrigerated Truck Box

Truck Camper Motorhomes

DIY RV Recreational Vehicle Kits

Flat Bed Semi Trailer

Container Chassis Trailer

Tipper Truck Trailers

Contact UsGENERAL EAST CO.,LTD
info@trailerbull.com
+86-531-59639518
NO 8001 JINGSHI EAST ROAD,JINAN CHINA
China Good Quality Refrigerated Truck Box Supplier. Copyright © 2018-2025 GENERAL EAST CO.,LTD . All Rights Reserved.
