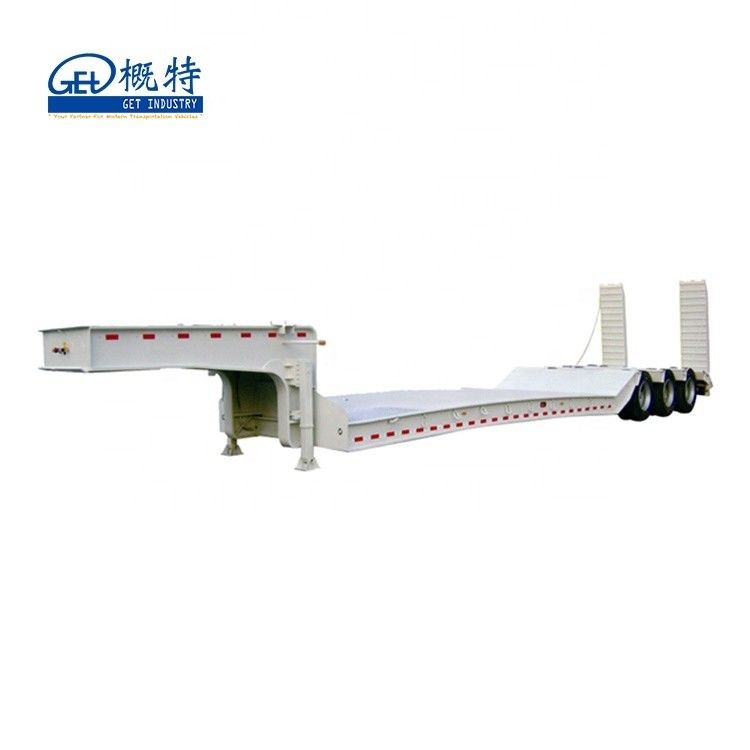

Electrophoretic Spraying 120T Fixed Gooseneck FGN Low Loader Trailer for Industrial

Product Details

Place of Origin: China

Brand Name: G.E.T

Certification: DOT

Payment & Shipping Terms

Minimum Order Quantity: 3 units

Price: $10,000.00 - $25,000.00/units

Packaging Details: 2 or 3 units packed tog with bulk shipment or roll-roll shipment

Supply Ability: 50 Unit/Units per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Motorhomes Truck DIY Kits, Expedition Trucks DIY Kits


Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Size:	12- 18 M
Max Payload:	150 T	Low Bed Trailer Type:	Tire Expose Super Lower Loading Platform Design
Trailer Application:	Super Heavy Machine / Industry Equipments / Construction Machines	Trailer Material:	ASTM A572 Grade 50 Or Equivalent (Q345)
Trailer Axle:	Square Drum Axle Brand FUWA / BPW	Trailer Suspension:	Mechanical Tandem / Air Spring / Bogie
Mechanical Tandem / Air Spring / Bogie:	Jost Brand 2" And 3.5"	Trailer Tire:	12R22.5 Tubeless Triangle / Michelin
Low Bed Loading Ramp:	Spring Assisted Mechanical Loading Ramp, Option Hydraulic Ramp	Trailer Brake:	Dual Air Brake System, WABCO Relay Valve, OPTIONS: ABS/EBS
Trailer Surface:	Electrophoretic Spraying	Port:	QINGDAO,CHINA

Use:	Truck Trailer
Type:	Semi-Trailer
Material:	Steel
Size:	12- 18 M
Max Payload:	150 T
Low Bed Trailer Type:	Tire Expose Super Lower Loading Platform Design
Trailer Application:	Super Heavy Machine / Industry Equipments / Construction Machines
Trailer Material:	ASTM A572 Grade 50 Or Equivalent (Q345)
Trailer Axle:	Square Drum Axle Brand FUWA / BPW
Trailer Suspension:	Mechanical Tandem / Air Spring / Bogie
Mechanical Tandem / Air Spring / Bogie:	Jost Brand 2" And 3.5"
Trailer Tire:	12R22.5 Tubeless Triangle / Michelin
Low Bed Loading Ramp:	Spring Assisted Mechanical Loading Ramp, Option Hydraulic Ramp
Trailer Brake:	Dual Air Brake System, WABCO Relay Valve, OPTIONS: ABS/EBS
Trailer Surface:	Electrophoretic Spraying
Port:	QINGDAO,CHINA

Product Description

Details Images

Ordering Guide

Trailer & Tanker Shipment

Product Paramenters

Alcove Platform Concavity Rigid Suspension 120T Fixed Gooseneck FGN Low Loader type LOW BED TRUCK SEMI TRAILER
1. MODEL:				GET9120TDAX
This Low bed semi trailer is designed Concavity Design platform to lower the height of loading platform for transporting heavy construction machine or heavy and higher facilities which may over the bridge limitation. it meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications.
2. GENERAL
Overall Length	52.49 ft	16,000 mm	Can Customized design from 12m to 18m
Overall Width	13.78 ft	4,200 mm
Overall Height	12.63 ft	3,850 mm	loading Ramp hanged
Gooseneck Length	10.99 ft	3,350 mm
Loading Platform Length	24.87 ft	7,580 mm
Loading Platform Height	2.62 ft	800 mm	around 1000mm at the loading ramp
Fifth Wheel Height	4.43 ft	1,350 mm
Kingpin Location	1.64 ft	500 mm	From the rear face of the front bolster
Landing Gear Location	7.55 ft	2,300 mm	From the kingpin center
Axle Spread	4. ft	1,220 mm
Tandem Location	38.42 ft	11,710 mm	From Kingpin to Front Suspension Hanger
Tare Weight	33,070 Ibm	15,000. kg
Payload	264,560 Ibm	120,000. kg	Can Customized design from 20T to 150 T

3. STEEL STRUCTURE AND COMPONENTS
Main beam	Auto-welt Main Beam With High strength low alloy steel with 350 MPa yield hot-rolled I-beam, ASTM A572 Grade 50 or equivalent (Q345)
Flanges	High strength low alloy steel with 350 MPa yield hot-rolled I-beam, ASTM A572 Grade 50 or equivalent (Q345)
Low Platform Floor	1/5" ( 5mm) Thickness ASTM A572 grade 50 Checked Steel Plate
Low Platform type	Center Concavity Platform with loading ramp Option: 1,Standard Straight Platform 2. Tire Exposed Straight Platform
Upper coupler	1/4” pick up plate with JOST 2” diameter square type king pin per SAE standard
Loading Ramp	Standard Spring assisted Mechinical loading ramp loading capacity 50T Options: Hydraulic Loading ramp with pump

4.TRAILER RUNNING GEAR
Landing gear	25T ( 55,000 lbs) capacity, 2-speed 19” travel with low “T” shoes
Landing gear		Crank handle is located on the driver’s side of the chassis.
Suspension	Super Heavy Capacity Mechanical tandem suspension with leaf springs. Options: Air Suspension , Bogie Suspension
Axles	Rigid Suspension System with capacity of 120T 190mm (7 1/2") Square axles with 30 T capacity, 1254mm (49.37” ) track, S311x 190mm (12.24”X7.48”) brake; hub internally vented; 10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options)
Wheels	steel disc wheel, 10 holes ISO, ; Option: Aluminum alloy rim
Tires	Tubeless Tires , 8.25R15,8.25R20,11.00R22.5,12.00R22.5,12.00R20,385/65R22.5,425/65R22.5 , Manufactuter: Double Coin, Triangle, Michelin, Firestone
Brake System	Dual line pneumatic brake, SAE hose and connector, WABCO relay emergency valve, OPTIONS: ABS brake system
		T30/30 spring brake chambers, T30 brake chambers
		3/8” blue air tube for control and 3/8” red for supply, 40L air tanks
Electrical	OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards. Receptacle::7 way socket SAE standard, China Wiring: Electric cable protected by PVC conduit on main frame
Painting	Electrophoretic spraying, that is, water-based coating, can be dissociated into a water-soluble film-forming material which can form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of the object to form a coating film
MISC	GET standard marking, document holder, conspicuity tape, Steel or black rubber mud flaps
Option	Hubodometer, PSI tire inflation system

Low Bed Trailer Families

Enterprise Profiles

More Truck Trailers

FAQ

What is a Low bed Semi-Trailer ?

Lowbed trailer (low boy in US, low-loader in British English, low-bed in western Canada and South Africa or float in Australia and eastern Canada) is a semi-trailer with two drops in deck height: one right after the gooseneck and one right before the wheels. This allows the deck to be extremely low compared with other trailers. It offers the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers cannot. Lowboys are used to haul heavy equipment such as bulldozers, industrial equipment etc.

Are we manufacturers or traders? Why you are just show Trade company ?

We are manufacturer, we have 3 factories in China for different Vehicles and projects with different names for 30 years.We do business like to visit them and meeting in face to face before , so we have no Stores in Internet, but this year, the virus reason , we can not travel again , have to make it in internet. GET industry is a new company established in Jinan City , the Center of China Havy Machine to organize the international business of all our factories , so it is just show as a trading company in Alibaba.
