Home > products > DIY RV Recreational Vehicle Kits > Refrigerated Truck Body Panel with Injection PU Foam and Durable Aluminum/FRP Skin

Product Details

Place of Origin: China

Brand Name: GET Industry | TRAILERBULL

Payment & Shipping Terms

Minimum Order Quantity: 200 square meters

Price: $100.00 - $300.00/square meters

Packaging Details: CKD /SKD /CBU SHIPPED IN CONTAINER

Supply Ability: 60000 Square Meter/Square Meters per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Motorhome Truck DIY Kits, Expedition Truck DIY Kits


Super Structure:	Injection Foaming Closed Sandwich	Wall Skin:	PPGL /Aluminum Plate/ Stainless Steel / Steel
Application:	Refrigerated Truck Body /Cold Room	Insulation Core:	PUR
Technology:	Positive Injection Foaming	Wall Thickness:	45,80,105,mm
Shippment Packing:	SKD/CKD /CBU	Character:	Aluminum Profile Edge Closed For Quick Installing
Working Life:	Standard 5-10 Years Per The Working Condition	Favourite Place:	America
Port:	QINGDAO,CHINA

Super Structure:	Injection Foaming Closed Sandwich
Wall Skin:	PPGL /Aluminum Plate/ Stainless Steel / Steel
Application:	Refrigerated Truck Body /Cold Room
Insulation Core:	PUR
Technology:	Positive Injection Foaming
Wall Thickness:	45,80,105,mm
Shippment Packing:	SKD/CKD /CBU
Character:	Aluminum Profile Edge Closed For Quick Installing
Working Life:	Standard 5-10 Years Per The Working Condition
Favourite Place:	America
Port:	QINGDAO,CHINA

Product Description

Product Parameters

Injection Foaming Sandwich Panel
1. Instruction of Injection Foaming Sandwich Panel
The Injection Foaming Sandwich Panel, with outstanding insulation, saves time when cooling down, and energy when transporting temperature- controlled freight. The polyurethane core of our panels with Injection Foaming Technology process is up to 7% thicker than with conventional bodies. Vapor-impermeable metal cover layers prevent the absorption of moisture, protecting against the accumulation of additional weight and preventing the foam core from losing its efficient helps the body to retain its value through low operating costs and a high resale value. The quality of food transport stands and falls with the refrigerated box body quality. We have combined all the quality components of our sandwich panels with European main production process to build this new panels for the box less than 5m.
2. General Of the Injection Foaming Sandwich Panel
Max. Length of the Panel Kits			9000
Max Wideth of the panel Kits			3200mm
Thickness of the Panel Kits			45,80,105,mm
K Value of the FRP-Pie Truck Body
Tensile strength			>180MPa
Flexural strength			>220MPa
Barcol hardness			24.6MPa

Super Structure

4.Description of material
Core Thermal Polyurethane Foam The foaming Chemical 245fa material adopts environmentally friendly, are selected from internationally brands such as Honeywell and BASF to ensure the quality of foamed polyurethane. The premixing of foaming materials is controlled by computer and quantitative to ensure the stability and stability of foamed polyurethane. After testing, the polyurethane density is stable at around 45kg/m3, the door and the Floor is particularly Strengthened. The molded polyurethane test has a compressive strength of more than 240 KPa (according to DIN EN ISO 844) and a flexural strength of more than 490 KPa (according to ISO 1209-1), which ensures good strength and rigidity of the panel.

Fast Installation

6.Assembly
Sandwich panel box is a pre-installed trailer box body which can be mounted directly onto the chassis of the vehicle using its lower fixed frame. It is important that all specifications and guidelines from the chassis manufacturer be observed during assembly. Requirements for installation: Crane or alternative lifting equipment Standard assembly tools, i.e. pneumatic screwdriver, wrenches, etc. FRP-PLAST SANDWICH PANEL KIT: Prepare the chassis Mount the partial frame and the floor plate on the chassis Mount the side, front and rear walls and the roof Install the required options Finishing FRP-PLAST SANDWICH PANEL BOX: Prepare the chassis Mount the BOX tog with sub frames on the chassis Install the required options Finishing

Truck Body Application

FAQ

We are manufacturer, we have 3 factories in China for different Vehicles and projects with different names for 30 years.We do business like to visit them and meeting in face to face before , so we have no Stores in Internet, but this year, the virus reason , we can not travel again , have to make it in internet. GET industry is a new company established in Jinan City , the Center of China Havy Machine to organize the international business of all our factories , so it is just show as a trading company in Alibaba.

A cold chain is a temperature-controlled supply chain. An unbroken cold chain is an uninterrupted series of storage and
distribution activities which maintain a given temperature range. It is used to help extend and ensure theshelf life of products such as fresh agricultural produce,[1] seafood, frozen food, photographic film, chemicals, and pharmaceutical drugs.[2] Such products, during transport and when in transient storage, are called cool cargo.[3] Unlike other goods or merchandise, cold chain goods are perishable and always en route towards end use or destination, even when held temporarily in cold stores and hence commonly referred to as cargo during its entire logistics cycle.

A refrigerator/Refrigerated truck trailer is a van or truck designed to carry perishable freight at specific temperatures. Like
refrigerator cars, refrigerated trucks differ from simple insulated and ventilated vans (commonly used for transporting fruit),
neither of which are fitted with cooling apparatus. Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent. Most of the long-distance refrigerated transport by truck is done in articulated trucks pulling refrigerated semi-trailers. Research is done on fuel cell auxiliary power units. The first successful mechanically refrigerated trucks were introduced by the ice cream industry in about 1925.There were around 4 million refrigerated road vehicles in use in 2010 worldwide

is an integrated family of sandwich panels designed for quick cold room assembly. The panel configuration has been reduced to a minimum, so the overall effect is to offer the clients maximum design possibilities for cold rooms with a minimum amount of panels required on the site. All products from the modular range can be easily assembled without the need for special tools. Likewise they can be dismantled easily in order to move or enlarge them. The modular range has a wide variety of applications from general food storage to mortuary chambers. diagram of modular cold room panels

The Cold Room Panels: Sandwich panels comprise of two steel skins that are injected with a high pressure polyurethane foam, with tongue and groove jointing method orinner hook joint.

Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.

Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers’ request and designing request.

The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.

We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.

It depends how will use it. Normally, the life is about 15~20 years

Food Name	Refrigerating Temperature （℃）	Relative Humidity （%）	Storage Period（Month）	Freezing Point （℃）	Specific Heat（KJ/Kg.℃)			Latent Heat (KJ/Kg）	Storage Capacity （m3/t）
Food Name	Refrigerating Temperature （℃）	Relative Humidity （%）	Storage Period（Month）	Freezing Point （℃）				Latent Heat (KJ/Kg）	Storage Capacity （m3/t）	Above Frozen Point	Below Frozen Point
Apple	-1~1+1	85~95	（2~7）	-2	3.85	2.09	218	7.5
Banana	+11.7	85	14	-1.7	3.35	1.76	251	15.6
Pear	-0.5~+1.5	85~95	1-6	-2	3.77	2.00	281	7.5
Grapes	1~-+3	85~90	(1~4)	-4	3.6	1.84	272	9.4
Onion	-1.5	80	(3)	-1	3.77	1.93	289	9.4
Cabbage	0~+1	85~90	(1~3)	-0.5	3.89	1.97	306	15.6
Potato	+3~+5	85~90	(6)	-1.2
Egg	-1~-0.5	85~85	(8)	-2.2	3.18	1.67	226
Fresh Pork	0~+1.2	85~90	3-10	-2.2	2.26	1.34	126
Frozen Pork	-24~-15	85~90	(2~8)					8.2
Frozen Poultry	-30~-10	80	(3~8)					6.2
Frozen Mutton	-12~-18	80~85	(3~8)					6.2
Frozen Egg	-18		(12)
Sausage	-4~+5	85~90	7~21
Milk Oil	0~+2	80	7					7.5
Sugar	+7~+10	<60	(12~36)	0.2	0.84	1.67
Rice	+1.5	65	(6)	-1.7	1.09
Beer	0~+5		(6)	-2	3.77	1.88	301	10.6

The above form shows the best suitable temperature for the refrigerating storage of different food materials of fruit, vegetable, meat, drink beverage etc.. So you can take the listed temperature range as reference to design and build your walk-in cold storage warehouse and refrigerated warehouse for your restaurant, hotel kitchen, supermarket, chain store, vegetable & fruit market and other cold storage logistics plant.

Tags:

Contacts: Mr. Happle Hoo

Tel: +86-531-59639518

Fax: 86-531-59639518

Contact Now

Mail Us

Our Products

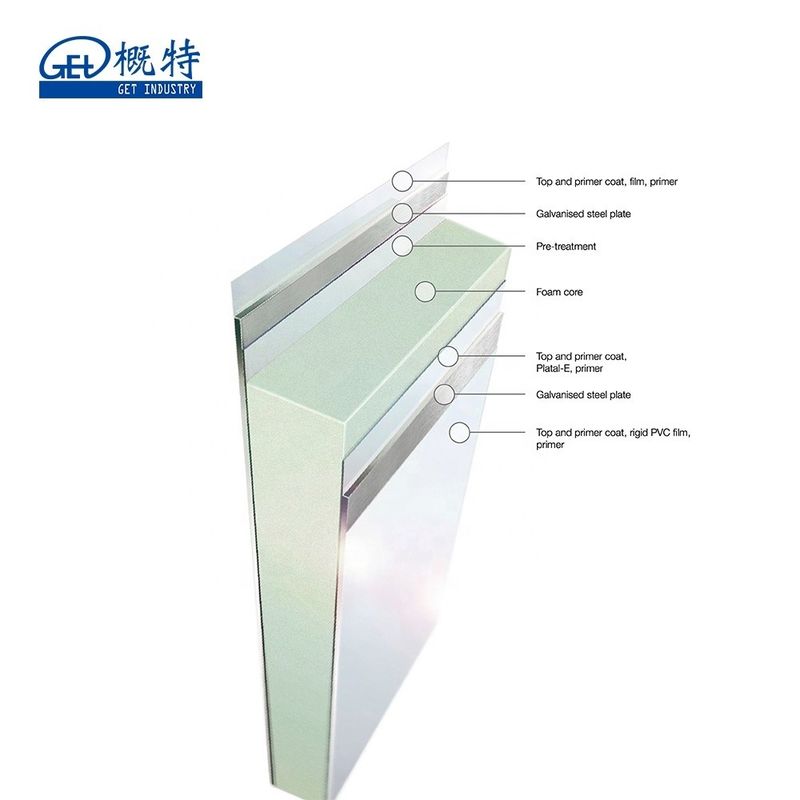

3. Super Structure of Injection Foaming Sandwich Panel

Self-supporting Panel, The Aluminum Kicked plate is the standard equipment that can avoid the damage of the cargo against.it is also fully welt to the aluminum rail, which ensures the excellent waterproof performance and easy cleaning.

Aluminum Profiles assembling to let the installation easy like a LEGO Toys, 3 experience workers can finish it in 2 hours with our technology support, so we can supply all the box at CKD and SKD type to load more in the container to save the freight and leave more profits to customers.

The Floor panel covers an aluminum alloy rail layer, and the aluminum rails are spliced and fully welded to ensure the strength and excellent water resistance.

There are a variety of aluminum alloy rail styles and heights to choose depending on the loading requirements.

Wall Panel Kits

Floor Panel Kits

Length 0-6000mm
Width 0-3000mm
Thickness 80 ,105mm

Length 0-6000mm
Width 0-3000mm
Thickness:80 ,105mm ( not include the Rail Height)

1. Insulated & refrigerated truck body side and roof wall.
2. Mobile Cold Room Side Walls

1. Insulated & refrigerated truck body Floor.
2. Mobile Cold Room Floor Wall
