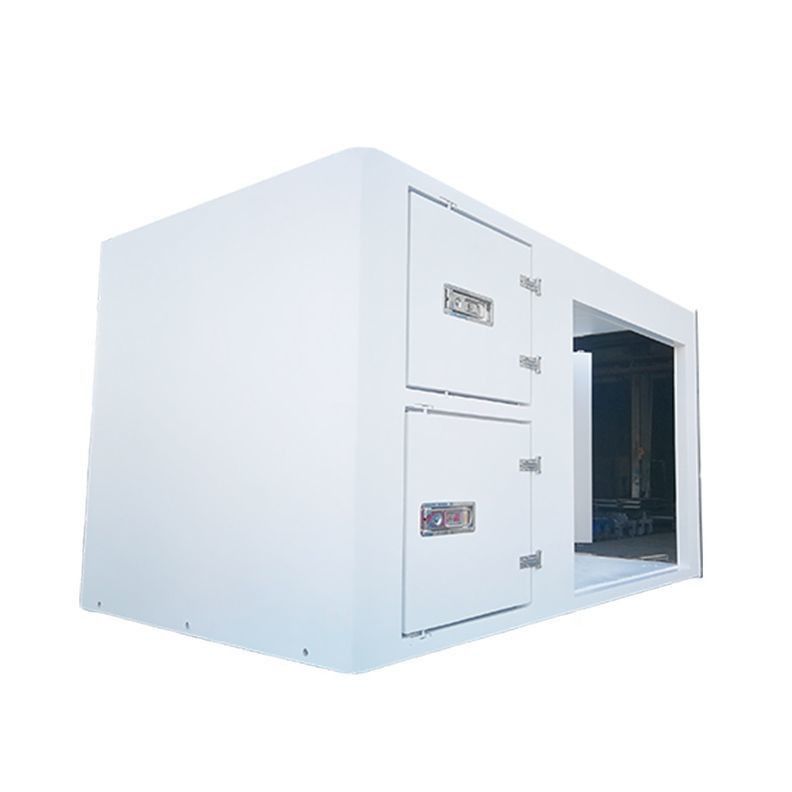

Wheel Driving Urban Distribution Truck Box High Performance
Wheel Driving Urban Distribution Truck Box High Performance
Wheel Driving Urban Distribution Truck Box High Performance
Wheel Driving Urban Distribution Truck Box High Performance
Wheel Driving Urban Distribution Truck Box High Performance
Wheel Driving Urban Distribution Truck Box High Performance
Wheel Driving Urban Distribution Truck Box High Performance
Wheel Driving Urban Distribution Truck Box High Performance

Wheel Driving Urban Distribution Truck Box High Performance

Product Details

Certification: ISO9001

Payment & Shipping Terms

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Wheel Driving Urban Distribution Truck Box

,

High Performance Urban Distribution Truck Box

,

Urban Distribution Truck Box

Model NO.:
GET. 6KDX. XPS.
Min.Temperature Range:
-18 Degree Centigrade
Wall Thickness And K Value:
82/90/105mm, 0.296 K.M2/W
Side Wall Material:
Cfrt/FRP(Interior) +XPS+FRP(Exterior)
Floor:
Aluminum Air Duct And Side Kick Plate
Portal And Rear Door:
SS304 Portal With Two-Wings Full Open
Fire-Retardant Grade:
"B", According To En 13501-01
Shipment:
Complete Built Up (CBU) Or Flat-Packed
Driving System Parts:
Wheel
Main Market:
Southeast Asia
Transport Package:
CKD /SKD /CBU Shipped In Container
Specification:
3525x2000x1925
Trademark:
GET VEHICLES GET COLD-CHAIN
Origin:
China
HS Code:
8707909000
Supply Ability:
200 Unit/Units Per Month
Customization:
Available
Material:
FRP+XPS+FRP
Type:
Refrigeration Cargo Truck Box
Model NO.:
GET. 6KDX. XPS.
Min.Temperature Range:
-18 Degree Centigrade
Wall Thickness And K Value:
82/90/105mm, 0.296 K.M2/W
Side Wall Material:
Cfrt/FRP(Interior) +XPS+FRP(Exterior)
Floor:
Aluminum Air Duct And Side Kick Plate
Portal And Rear Door:
SS304 Portal With Two-Wings Full Open
Fire-Retardant Grade:
"B", According To En 13501-01
Shipment:
Complete Built Up (CBU) Or Flat-Packed
Driving System Parts:
Wheel
Main Market:
Southeast Asia
Transport Package:
CKD /SKD /CBU Shipped In Container
Specification:
3525x2000x1925
Trademark:
GET VEHICLES GET COLD-CHAIN
Origin:
China
HS Code:
8707909000
Supply Ability:
200 Unit/Units Per Month
Customization:
Available
Material:
FRP+XPS+FRP
Type:
Refrigeration Cargo Truck Box
Product Description
Brief Instruction

GET VEHICLES | COLD CHAIN BOX Refrigeration Truck body ,Thanks to the modular system, our box body can be individually configured for a wide range of applications. Logistics challenges are rising with consumers' more exacting requirements. The GET COOL truck box body is a high performance truck with box body designed to meet individual requirements, which fits all well-known truck manufacturers' chassis.

Main Parameters
Urban Distribution Truck Box
Multi-Compartments Truck Body for Urban Distribution Truck
MODEL:  GET.6KDX.XPS.
There are many small Retails asked different cargos at small quanity which is also need to delivery under cold Chain to keep its fresh and healthy. Our this Urban Distribution can amount to all the City Pick Up Chassis, box divide to different compartments for the cargos basket with Rails , that can help you to distribute more kinds of cargos for more retails in the downtown .
Special REQUIREMENTS
Multi-Compartments With different compartments for different temperature and food like fruits and vegetables and meat.

Some compartments is insulation only for normal food, some is frozen with refrigeration units for meat and frozen cargos, some is cool place for fresh vegetable or other fruints to meet the urban distribution purpose.
GENERAL PARAMETERS
K .Value for the Composite Box 0.295 W/m2 ºC
Max. Overall Length 12 ft 3,525 mm 0~14750mm can customized
Max. Overall Width 7 ft 2,000 mm 0~ 3200 mm can customized
Max. Overall Height 6 ft 1,925 mm 0~3200 mm can customized
Max. Floor Thinckness 3 .23 inch 82 mm 45-105mm can customized
Side Wall Thickness 3 .23 inch 82 mm 45-105mm can customized
Front Wall Thickness 3 .23 inch 82 mm 45-105mm can customized
Rear Door Panel 3 .23 inch 82 mm 45-105mmcan customized
Roof Wall 3 .23 inch 82 mm 45-105mmcan customized
Compartment Walls 1 .77 inch 45 mm
FRP 2mm/PUR:40kg/m³±2 FRP Panels (Excluding Floor)
Panel Details Wall types Thickness Structure( Inter.Skin + Insulation+Exter. Skin) Remark
Side Wall Panel 80.00mm FDA "Approvable" CFRP + XPS + FRP
Front Wall Panel 80.00mm FDA "Approvable" CFRP + XPS + FRP With Refrigeration Units Installation Embedded Beam
Rear Wall Panel 80.00mm FDA "Approvable" CFRP + XPS + FRP with Door Hinger Installation Embedded Strengthen
Roof Wall Panel 90.00mm FDA "Approvable" CFRP (Interior) + XPS + Anti UV FRP (exterior)
Floor Panel 80.00mm Aluminum Air Duct (Interior)+PUR (injection Foaming 45kg/m³)+FRP With Cross Beam Embedded
Standard: Floor with Alu.Duct for America Market

Best Cold Air Circle		 Urban Distribution Truck Box

Urban Distribution Truck Box



Rear Door

Urban Distribution Truck Box Urban Distribution Truck Box



Your Benefits


Standard Floor : Aluminum Duct

(H=15mm,20mm,35mm,50mm)
Urban Distribution Truck Box

Aluminum Extrusion

90 Degree Aluminum Extrusion, L shap or Round Corner Choice
Urban Distribution Truck Box

Cargo Fix Racks

Stainless Steel material for cargo fix installed on the side wall interior.

Profiles Options
Urban Distribution Truck Box

Refrigeration Units


Urban Distribution Truck Box

Production Workshop

Urban Distribution Truck Box



Urban Distribution Truck Box

FAQ

What is refrigerated truck box body?

Refrigerated truck, sometimes we call it reefer truck box body. Sometimes we call it freezer truck box body. Sometimes chiller truck box body. Sometimes cold room truck box body. All in all, We calls it refrigerated truck.Reefer truck box body is a kind of box which can load the cargoes which need to keep cold and fresh. Such as icecream, chill chicken, chill fish, freezer meat, sometimes vegetables and so on.

Our refrigerated truck box body is the Sandwich structure. External FRP material+PU core+Internal FRP. Normally, the thickness of FRP is 2mm. It also can be customized. As the PU core, normally, the density is more than 40kg/m. And the thickness is changeable by customers' request and designing request.

The parts of FRP reefer truck box body is adopted the highest configuration. They are 304 stainless steel parts for door lock and door frame. Aluminum profile for connecting all the panels. The importing rubbers make the door be sealing. So the whole reefer truck box body is all-closed without any gap.

What's the material of your refrigerated truck body?

We can produce FRP(Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless Steel Material for the refrigerated truck body.The Core Material can be PU,XPS.

If want the price, what should offer us the information?

You need offer us the material, size(length, width, height and thickness of the panel) and quantity of the truck body as the
basic information.

What is the CKD and CBU means ?

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.

How long life of your truck body?

It depends how will use it. Normally, the life is about 15~20 years
