Model NO.:	GET. 9UZX. 3/30	Wheel Base:	4615X1310X1310
Tread:	2240mm	Grade:	Heavy Duty
Types Of Suspension Systems:	Leaf Spring Suspension	Shape:	Rounded Body
Axle Number:	3	Tire Number:	12
Self-dumping:	Self-dumping	ABS Anti-lock Braking System:	ABS Anti-lock Braking System
Material:	Steel	Condition:	New
Trailer Type:	Tipper Truck Trailer	Tipper Body Design:	Solid Rounded Dump Body
Dump Body:	30 Cbm	Body Size:	8,440X2,300X1650 Mm
Hydraulic Syste:	Hyva Original	Payload:	50,000kg
Chassis:	Carbon Steel	Axles:	3 Sets
Transport Package:	Container Shipment	Specification:	30 Cbm
Trademark:	GET VEHICLES	Origin:	China
HS Code:	8716399000	Supply Ability:	50 Unit/Units Per Month
Customization:	Available	Type:	Tipper Semi-Trailers
Load Capacity:	50T

Type	Tipper semi-trailers
Body	Rounded steel body
Volume	21-56m³
Type length	7.2 / 8.2 / 9.6 / 10.5
Body depth	1,300-2,500mm
Axles	3
Chassis	Carbon Steel

More payload with the new chassis generation.		More safety: the Wabco best Brake System give you an safe Drive at all times.
Trailer chassis concept for use with two and three-axle semi-trailer tractor units.		Trailer chassis concept for use with two and three-axle semi-trailer tractor units.
Wear-resistant fine-grain rounded steel body for durability, low maintenance and high value retention.		Robust, welded steel chassis and running gear suitable for off-road terrain.
Body shape prevents goods from sticking. This increases safety when unloading.


Rounded steel body The flat, wider floor of the robust rounded steel body has a lower centre of gravity, increasing driving stability and tipping safety. Goods slide out effectively from the trailer, thanks to the shape of the rounded body.	Floor and side wall thicknesses Different floor and side wall thicknesses are matched to your applications.	Wear plates * In the event of frequent loading and unloading of abrasive materials, the particularly exposed areas of the body can be equipped with wear plates, extending their service life.

Sliding tarpaulin * Convenient and secure tarpaulin system. The tarpaulin can be quickly and easily operated from the ground. Available as a manual or electric version.	Roller tarpaulin * Easy-to-operate and robust well cover protects the cargo from moisture and dirt, especially during transport. An optional quick-release clamping mechanism saves time and simplifies operation.	Plastic cladding * This also prevents bulk goods from adhering to the floor of the body. It is also possible to evenly unload at a reduced tilting angle. The plastic lining increases safety during tipping.

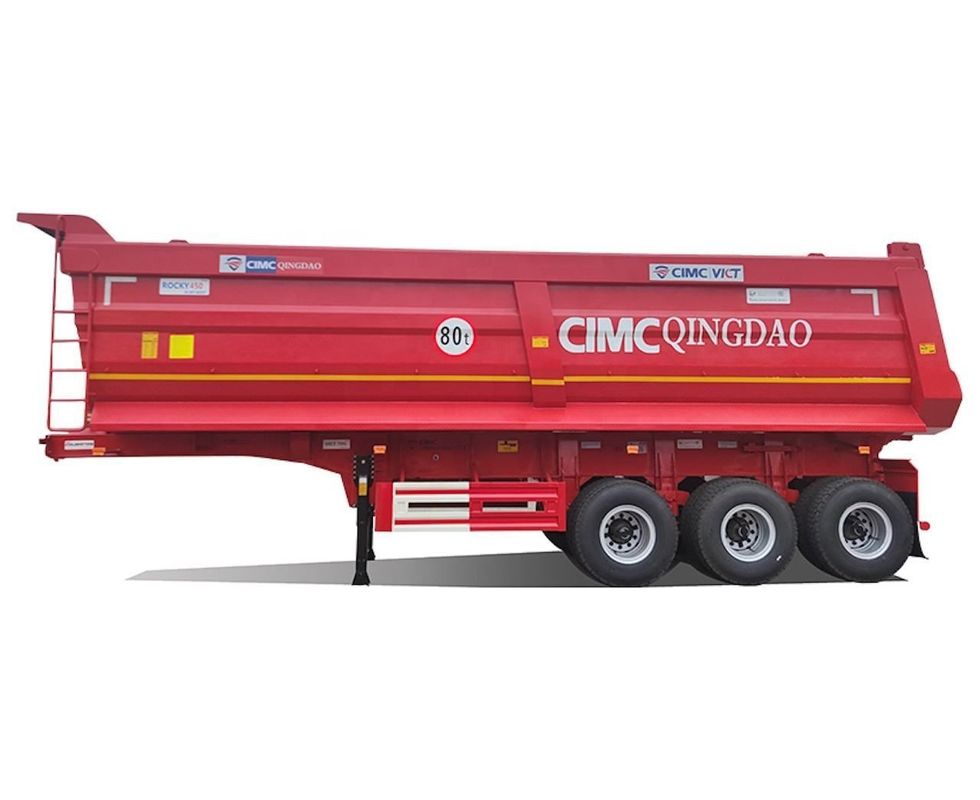

Type		30CBM U-type Tipping Trailer with Three Axles
Model		GET.9UZX.3/30
Parameter	Overall Dimension (mm)	Length×width×height:9,370x2,500x3,650mm (The height will be adjusted according to the tractor specification)
	Inner Dimension(mm)	Length×width×height:8,440x2,300x1,650mm
	Capacity	30m³
	Fifth Wheel Height (mm)	The height will be adjusted according to the tractor specification
	Tare Weight (kg) (±5%)	9,400
	Payload (kg)	50,000
	Gross Weight (kg)	59,400
Fabric &Configuration	Main Beam	Submerged arc welding, high strength steel
	Body	Bottom 6mm/Side 3mm, BHNM450/wear-resistant steel.
	Tire	12R22.5, equip 12pcs per chassis.
	Rim	9.0-22.5, equip 12pcs per chassis
	Axle	13T, 3sets, without ABS
	Suspension	Enforced mechanical suspension
	Landing Gear	CIMC 30T
	Kingpin	3.5", exchanged
	Hydraulic system	Full set of hydraulic system, not including the PTO.
	Brake System	Dual air brake system,30/30 type on rear two axles, WABCO brake valve.
	ABS	Non
	Electrical System	24V, LED lamp
	Spare Tire Carrier	Equip 2 sets per chassis
	Tool Box	1 set
	Paint	Primer + top coat, polyurethane paint
	Color	By customer's requirement.
Others		Main beam: stick "GET VEHICLES,TRAILERBULL" logo Nameplate: English model
