Tri Axle Carbon Steel Tanker Trailer , Oil And Diesel Fuel Tank Trailer 40000L

Name: Tri Axle Carbon Steel Tanker Trailer , Oil And Diesel Fuel Tank Trailer 40000L
Brand: GENERAL EAST CO.,LTD
SKU: 9403GYY
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO 9001/TS16949

Model Number: 9403GYY

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Packaging Details: packed in nude

Delivery Time: 30 working days

Payment Terms: T/T, L/C

Supply Ability: 50 units per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                diesel fuel tank trailer, oil tank trailer


Material:	Carbon Steel Q345/Q235	Tanker Volume:	40,000L
Axle No.:	3	Transport Liqulid:	Gasoline,Diesel,Water Etc
Color:	Customized	Tanker Shape:	Square-Round

Material:	Carbon Steel Q345/Q235
Tanker Volume:	40,000L
Axle No.:	3
Transport Liqulid:	Gasoline,Diesel,Water Etc
Color:	Customized
Tanker Shape:	Square-Round

Product Description

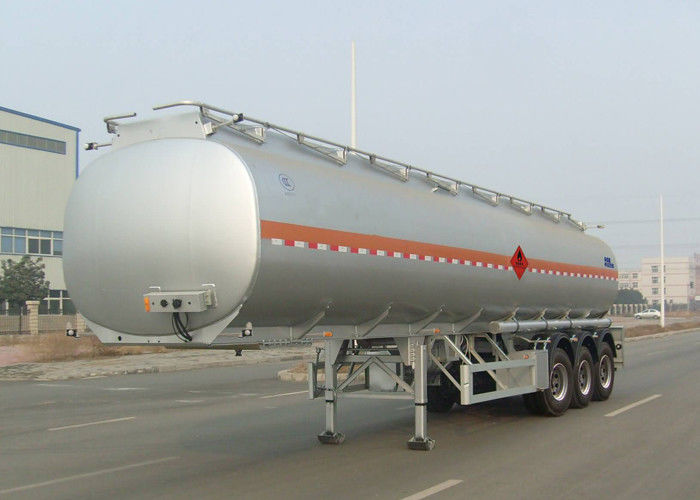

40000L Carbon Steel Tanker Semi Trailer 3 axles for oil and diesel

Carbon Steel is the favorite material of Chinese Tankerer-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs.

We provides high-volume and small-size carbon steel fuel Tanker semi-traile with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry.

Tankerer series, Liquid foods, Water, Fuel, LPG, CNG, CO2, grain, powder cement, chemical liquids etc.
Tanker Size: Round Shape, Square Round shap,Ellipse Shap etc.

Tank trailer or tanker Trailer (United States usage) or tanker (United Kingdom usage), is a Trailer designed to carry liquefied loads, dry bulk cargo or gases on roads.

Carbon Steel is the favorite material of Chinese tanker-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs

40000L Carbon Steel Tanker Semi Trailer 3 axles for oil and diesel			9403GYY
Tankerer Semi-Trailer overall outside dimension(mm)		Length	12930
		Width	2470
		Height (unload)	3565
Tankerer Semi-Trailer Outside dimension of Tanker body(mm)		Length	12670
Tankerer Body Capacity(L)			40500
Tankerer Body Compartments			4
Tankerer Semi-Trailer GVW(kg)			39960
Tankerer Semi-Trailer vehicle total weight(kg)			10000
Tankerer Semi-Trailer rated payload(kg)			27130
Tankerer Semi-Trailer Wheel base(mm)			7430+1350+1350
Tread(mm)	Tread at front		1830
	Tread at rear		1830
Front/Rear Overhang(mm)			-/1440
Tankerer Semi-Trailer Approach/Departure angle(°)			-/22
Tankerer Semi-Trailer Rated payload of Vehicle saddle			16000
Axle			BPW 12T*3
Tires			11R22.5
This design is for Tanzaina
OPTIONS : 1. FUEL/WATER PUMP FOR PRIME TRACTOR 2. INSULATED COVER TO BE AN INSULATED Tanker
Steel Structure: Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.
Tanker Safety Facilities : 1. Manhole Cover witih P/V vent Valves and Safety Valves : Carbon Steel material, Aluminum and Stainless options 2. Emergency Foot Valves with Aluminum Alloy Material for Each Compartment. 3. Pneumatic Control System Options: 4. API Adaptor Valves for Oil Diesel and JET 5. Optic Sensor and Socket for Overloading Protect System 6.Vent Recovry System: Vapor Vent Valve,Combing Vent Valve,Vapor Adaptor Valve,Vapor Recovery Joint
OEM Parts Configuration: King Pin: 3.5” /2” JOST. Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T. Suspension:Mechanical with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension Axles: square axle with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Michelin,BRIDGESTONE,Double Coin,Tri-angle Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS. Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
Others: Spare Tire Carrier: Equipped two sets per chassis without spare tire. Side Guard: Steel. Tool Box: Equipped one set. Painting: Color by customer’s requirement. Marking: By customer’s requirement. Options: Oil Tankerer: 300L carbon steel.
Carbon Steel Tanker With 3 Axles Max. Volume 50000 Liter Min. Weight 9200 Kg European ADR Standard Able to be transportation in container at CKD and SKD type, and we supply the technology support for assembling. Effective volume: 3000L----80000L

OUR QUALITY GUARRANTY
Stability System  The stability system of GET Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control.
Operation Monitoring System  Operation-monitoring system detects the whole process about tank loading, transportation and tank unloading. All real-time information about manholes, cut off valves, API connections, pipes and bottom valves will be detected and saved.
Closed Loading System  There are many significant advantages offered by Closed Loading System, such as fire prevention, spill prevention, higher operation safety, vapor recovery, avoidance of product contamination, faster loading and less expensive loading islands. It has become a standard required by the government.
Lift-up Axle System  Lift-up Axle System can increase driving distance and reduce costs of tires significantly. Test results indicate that the total distance of tires mounted on this system can be up to 750000 km, twice or more than traditional system.
Air Suspension  Comparing to traditional leaf spring suspension, air suspension can adjust the extent of soft or firm and the height of the vehicle, provide enhanced performance of shock-absorbing and driving safety.
