Home > products > Fuel Tank Trailers > 36000L Double Axle Aluminum Tanker Trailer For Carry Liquefied Loads

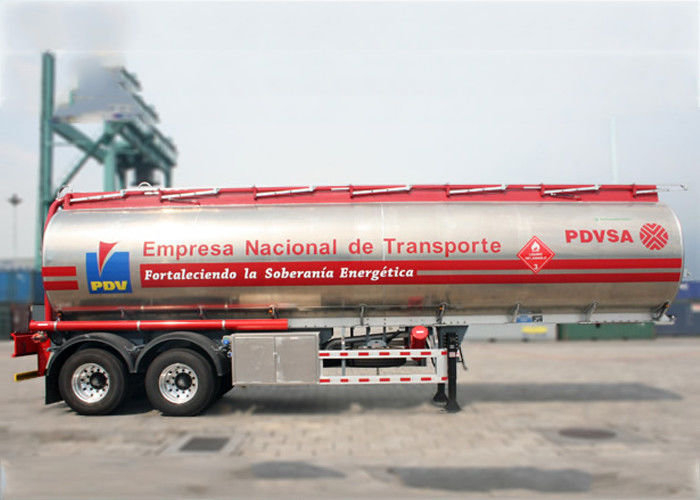

36000L Double Axle Aluminum Tanker Trailer For Carry Liquefied Loads

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO 9001/TS16949

Model Number: 9362GHYAL

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Packaging Details: packed in nude

Delivery Time: 30 working days

Payment Terms: T/T, L/C

Supply Ability: 100 units per month

Get Best Price
Product Details
Highlight:

aluminium tanker trailer

,

fuel tanker semi trailer

Material:
Aluminum Alloy
Tanker Volume:
36 000L
Tanker Shape:
Round
Surface:
Matte Type Or Mirror
Axle No.:
2
Shipment Type:
Complete Or CKD And SKD By Container
Material:
Aluminum Alloy
Tanker Volume:
36 000L
Tanker Shape:
Round
Surface:
Matte Type Or Mirror
Axle No.:
2
Shipment Type:
Complete Or CKD And SKD By Container
Product Description

36000L light Aluminum Tanker Trailer with super single tires for Pure Fuel and Jet





Aluminum Tank trailer or tanker Trailer (United States usage) or tanker (United Kingdom usage), is a Trailer designed to carry liquefied loads, dry bulk cargo or gases on roads.



As Aluminum alloy reduces the weight up to 65% comparing to traditional carbon steel,it can made to be lihgter but with larger Volume capacity.



As Aluminum Alloy can not get rust,can keep the transporation quality of the liqulid, so it is popular for the Aircraft Jet.





36000L light Aluminum Tanker Trailer with super single tires for Pure Fuel and Jet 9362GHYAL
overall outside dimensio(mm) Length 9400
Width 2490
Height (unload) 3850
Outside dimension of tank body(mm) Length 8990
capacity(L) 36000
GVW(kg) 29200
vehicle total weight(kg) 5000
rated payload(kg) 24200
Wheel base(mm) 5400+1300
Tread(mm) Tread at front
Tread at rear /2040/2040
Front/Rear Overhang(mm) /1500
Approach/Departure angle(°) /21
Rated payload of Vehicle saddle 11200
Axle BPW 12T*2
Tyres 425/65R22.5*4
Tank Material Aluminum Alloy
Transport Liqulid Material: Heptane,Ethylene,Cyclohexylamine,acetic acid,methyl alcohol,butyl oxide,methylmethane, Jet,Gasline, Disel, Water etc.
Options: Insulated Cover is avaliable
Aluminum Alloy Tank With 2 Axles

Max Volume 42000 Liter
Min Weight 5500 Kg
European ADR Standard

We provides lightweight and high-volume aluminum fuel tank semi-trailer with 2 axles to customers. With 42000 liter max volume, 5500kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry.

Able to be transportation in container
at CKD and SKD type, and we supply the technology support for assembling.
Tank Safety Facilities :

1. Manhole Cover witih P/V vent Valves and Safety Valves : Carbon Steel material, Aluminum and Stainless options
2. Emergency Foot Valves with Aluminum Alloy Material for Each Compartment.
3. Pneumatic Control System
Options:
4. API Adaptor Valves for Oil Diesel and JET
5. Optic Sensor and Socket for Overloading Protect System
6.Vent Recovry System: Vapor Vent Valve,Combing Vent Valve,Vapor Adaptor Valve,Vapor Recovery Joint
OEM Parts Configuration:

King Pin: 3.5” /2” JOST.
Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T.
Suspension:Mechanical with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension
Axles: square axle with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1.
Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand , Made in China.
Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS.
Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
Side Lights: reflectors (orange);
Rear Lights: direction indicators (orange) /brakes (red)/rear warning (white).
Others:
Spare Tire Carrier: Equipped two sets per chassis without spare tire.
Side Guard: Steel.
Tool Box: Equipped one set.
Painting: Color by customer’s requirement.
Marking: By customer’s requirement.
Options: Oil Tanker: 300L carbon steel.

OUR QUALITY GUARRANTY

Aluminum Alloy Technology



Aluminum alloy reduces the weight up to 65% comparing to traditional carbon steel. The aluminum fuel tankers of G.E.T Vehicles provide substantially improved performance than traditional carbon steel fuel tankers in aspects of fuel economy, safety and durability.

36000L Double Axle Aluminum Tanker Trailer For Carry Liquefied Loads 0

Stability System




The stability system of GET Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control.

36000L Double Axle Aluminum Tanker Trailer For Carry Liquefied Loads 1

Operation Monitoring System




Operation-monitoring system detects the whole process about tank loading, transportation and tank unloading. All real-time information about manholes, cut off valves, API connections, pipes and bottom valves will be detected and saved.

36000L Double Axle Aluminum Tanker Trailer For Carry Liquefied Loads 2

Closed Loading System




There are many significant advantages offered by Closed Loading System, such as fire prevention, spill prevention, higher operation safety, vapor recovery, avoidance of product contamination, faster loading and less expensive loading islands. It has become a standard required by the government.

36000L Double Axle Aluminum Tanker Trailer For Carry Liquefied Loads 3

Lift-up Axle System




Lift-up Axle System can increase driving distance and reduce costs of tires significantly. Test results indicate that the total distance of tires mounted on this system can be up to 750000 km, twice or more than traditional system.

36000L Double Axle Aluminum Tanker Trailer For Carry Liquefied Loads 4

Air Suspension




Comparing to traditional leaf spring suspension, air suspension can adjust the extent of soft or firm and the height of the vehicle, provide enhanced performance of shock-absorbing and driving safety.

36000L Double Axle Aluminum Tanker Trailer For Carry Liquefied Loads 5
