23000L Steel LPG Skid Station With Filling System And Storage Tanker

Name: 23000L Steel LPG Skid Station With Filling System And Storage Tanker
Brand: GENERAL EAST CO.,LTD
SKU: 23000Skid
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GET/CIMC

Certification: ISO 9001/TS16949

Model Number: 23000Skid

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Packaging Details: packed in nude

Delivery Time: 90 working days

Payment Terms: T/T, L/C

Supply Ability: 50 units per 3 month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                23000L LPG Skid Station, Steel LPG Skid Station, LPG Skid Station With Storage Tanker


Material:	Q345R For Head	Tanker Volume:	23000L/40ft
Transit Material:	LPG	Design Pressure:	1.61 Mpa

Material:	Q345R For Head
Tanker Volume:	23000L/40ft
Transit Material:	LPG
Design Pressure:	1.61 Mpa

Product Description

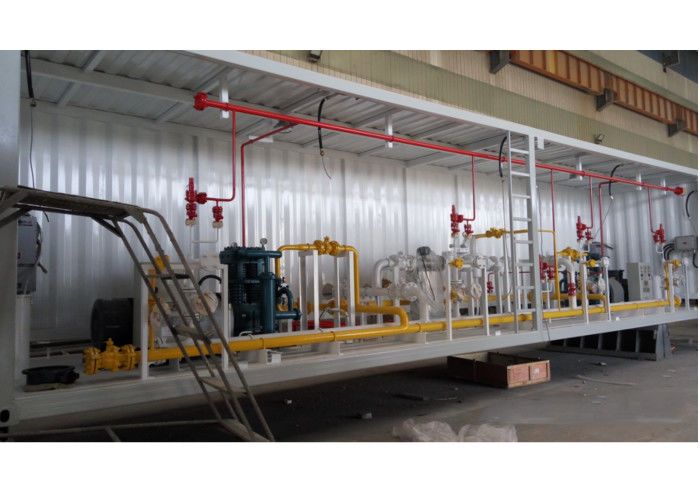

23,000L LPG Filling Skid with Filling system and storage tanker for 40 ft contianer ship

LPG Tank trailer or tanker Trailer (United States usage) or tanker (United Kingdom usage), is a Trailer designed to carry Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), which also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles. As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years.

23,000L LPG Filling Skid
including one unit (1) 23000L LPG Storage Tank,
one unit (1) LPG compressor ,
one unit (1) LPG Pump and
two (2)units manual vertical valve bottling scales with vertical valve bottling gun,
valves, instruments ,piping and control system etc.
All in Chinese Standard.

1. Technical Specification for 23 cbm LPG Storage Tank

Product Name

LPG Storage Tank

Design Standard

Chinese Standard

Capacity

23m3

Filling Medium

LPG

Design Pressure

1.61MPa

Working Pressure

≤1.60MPa

Design Temperature

50 ℃

Working Temperature

0~50 ℃

Main Material

Q345R

Medium Characteristics

Flammable and explosive

Filling Ratio

0.9

2. Manual Vertical Valve Filling Scale

Type

Manual Filling Type, Chinese Brand

Maximum Weighing

150KG

Degree of Accuracy

0IMLGrade

Working Temperature

-10~40

Working Humidity

10%~95%

Rated Voltage

AC220V

Maximum Power

19.5W

LPG Pressure

1.0~1.6MPa

Dimensions of the Weighing Platform

420x550mm

Explosion-proof Sign

d(ib) BT4

3.LPG Compressor

Model No.

ZW-0.8/10-16

Brand

Chinese Brand

Application Medium

LPG

Nominal Capacity

0.8m3/min

Rotating speed

740r/min

4.LPG Pump

Model No

40WBG150-5

Flow rate

5m3/h

Application Medium

LPG

Brand

Chinese Brand

5.Valves,Control and Piping System

Included (Chinese Standard)

23000L Steel LPG Skid Station With Filling System And Storage Tanker 2
