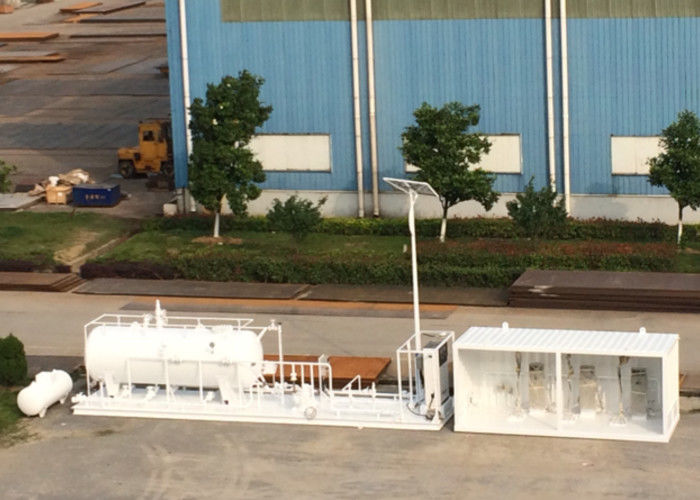

Customized 10m3 LPG Skid Mounted Tank / Mobile LPG Gas Filling Station

Name: Customized 10m3 LPG Skid Mounted Tank / Mobile LPG Gas Filling Station
Brand: GENERAL EAST CO.,LTD
SKU: 10,000Skid
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GET/CIMC

Certification: ISO 9001/TS16949

Model Number: 10,000Skid

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Packaging Details: packed in nude

Delivery Time: 90 working days

Payment Terms: T/T, L/C

Supply Ability: 50 units per 3 month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                Mobile Customized lpg gas filling station, 10m3 lpg gas filling station, Skid Mounted lpg gas filling station


Material:	Q345R For Head	Tanker Volume:	10000L/20ft
Transit Material:	LPG	Design Pressure:	1.61 Mpa

Material:	Q345R For Head
Tanker Volume:	10000L/20ft
Transit Material:	LPG
Design Pressure:	1.61 Mpa

Product Description

10,000L LPG Filling Skid with Filling system and storage tanker for 20ft container shippment

LPG Tank trailer or tanker Trailer (United States usage) or tanker (United Kingdom usage), is a Trailer designed to carry Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), which also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles. As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years.

10,000L LPG Filling Skid

Tank Capacity:10m3, Chinese GB standard;
Skid Design Code: Chinese GB Standard;
LPG Pump: 40WBG150-5,Chinese Brand;
LPG dispenser: Chinese Brand with double filling guns
Valves, Instruments, Tanker Unloading Hose, Explosion-proof Power Panel: Chinese good quality brand;
With flammable gas detector and alarm apparatus

1. Technical Specification for 10 cbm LPG Storage Tank

Product Name

LPG Storage Tank

Design Standard

Chinese Standard

Capacity

10m3

Filling Medium

LPG

Design Pressure

1.61MPa

Working Pressure

≤1.60MPa

Design Temperature

50 ℃

Working Temperature

0~50 ℃

Main Material

Q345R

Medium Characteristics

Flammable and explosive

Filling Ratio

0.9

Reference pictures

2. Manual Vertical Valve Filling Scale

Type

Manual Filling Type, Chinese Brand

Maximum Weighing

150KG

Degree of Accuracy

0IMLGrade

Working Temperature

-10~40

Working Humidity

10%~95%

Rated Voltage

AC220V

Maximum Power

19.5W

LPG Pressure

1.0~1.6MPa

Dimensions of the Weighing Platform

420x550mm

Explosion-proof Sign

d(ib) BT4

3.LPG Compressor

Model No.

ZW-0.8/10-16

Brand

Chinese Brand

Application Medium

LPG

Nominal Capacity

0.8m3/min

Rotating speed

740r/min

4.LPG Pump

Model No

40WBG150-5

Flow rate

5m3/h

Application Medium

LPG

Brand

Chinese Brand

5.Valves,Control and Piping System

Included (Chinese Standard)

Customized 10m3 LPG Skid Mounted Tank / Mobile LPG Gas Filling Station 0
