Construction Material Carbon Steel Tanker Trailer , Concrete Mixer Trailer 12 CBM

Name: Construction Material Carbon Steel Tanker Trailer , Concrete Mixer Trailer 12 CBM
Brand: GENERAL EAST CO.,LTD
SKU: 9122GJB
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GET

Certification: ISO 9001/TS16949

Model Number: 9122GJB

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Packaging Details: packed in nude

Delivery Time: 45 working days

Payment Terms: T/T, L/C

Supply Ability: 10 units per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                diesel fuel tank trailer, fuel transfer trailer


Material:	Carbon Steel Q345/Q235	Tanker Volume:	12,000L
Axle No.:	2	Transport Liqulid:	Concrete
Color:	Customized	Tanker Shape:	Round

Material:	Carbon Steel Q345/Q235
Tanker Volume:	12,000L
Axle No.:	2
Transport Liqulid:	Concrete
Color:	Customized
Tanker Shape:	Round

Product Description

12 CBM Concrete Mixer Tanker Semi Trailer for Construction Material

concrete mixer Special concrete transport trucks (in-transit mixers) are made to mix concrete and transport it to the construction site. They can be charged with dry materials and water, with the mixing occurring during transport. They can also be loaded from a "central mix" plant; with this process the material has already been mixed prior to loading. The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery. The interior of the drum on a concrete mixing truck is fitted with a spiral blade. In one rotational direction, the concrete is pushed deeper into the drum. This is the direction the drum is rotated while the concrete is being transported to the building site. This is known as "charging" the mixer. When the drum rotates in the other direction, the Archimedes' screw-type arrangement "discharges", or forces the concrete out of the drum. From there it may go onto chutes to guide the viscous concrete directly to the job site. If the truck cannot get close enough to the site to use the chutes, the concrete may be discharged into a concrete pump, connected to a flexible hose, or onto a conveyor belt which can be extended some distance (typically ten or more metres)

12 CBM Concrete Mixer Tanker Semi Trailer for Construction Material			9122GJB
Tanker Semi-Trailer overall outside dimension(mm)		Length	9035
		Width	2550
		Height (unload)	3950
Tanker Body Capacity(L)			12000L
Tanker Body Compartments
Tanker Semi-Trailer GVW(kg)			47000
Tanker Semi-Trailer vehicle total weight(kg)			12000
Tanker Semi-Trailer rated payload(kg)			35000
Tanker Semi-Trailer Wheel base(mm)			5200+1350
Tread(mm)	Tread at front		1830
	Tread at rear		1830
Front/Rear Overhang(mm)			-/1440
Tanker Semi-Trailer Approach/Departure angle(°)			-/22
Tanker Semi-Trailer Rated payload of Vehicle saddle			16000
Axle			BPW 12T*2
Tires			12R22.5
MAIN SPECIFICATION OF 12 CBM MIXER
Body	Drum Volume	18.6m3
	Agitating Capacity	12 m3
	Drum Slope	10
	Drum Rotating Speed	0-16 r/min
	Water Tank Volume	400 liters or 600 liters
	Discharged remain ratio	< 0.2%
Agitator	The material of the Agitator is the mix steel		B520JJ
	Thickness of the tank body (mm)	End plate cover	8
		Front Conical parts	5
		Rear Conical parts	5
		Cylindrical parts	5
		Drum Bottom	5
	over length (mm)		5250
	Max. Diameter (mm)		2360
	Academic volume (m³)		18.7
	Agitator mixing cubage (m³)		12
	Agitator leaning angle (°)		11
	Agitator rotation speed (rpm)		1-12
	Feeding speed (m³/min)		≥3
	Discharging speed (m³/min)		≥2
	Surplus rate (%)		≤0.5
	Water tank volume (L)		400
Steel Structure: Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.
OEM Parts Configuration: King Pin: 3.5” /2” JOST. Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T. Suspension:Mechanical with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension Axles: square axle with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Michelin,BRIDGESTONE,Double Coin,Tri-angle Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS. Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
Others: Spare Tire Carrier: Equipped two sets per chassis without spare tire. Side Guard: Steel. Tool Box: Equipped one set. Painting: Color by customer’s requirement. Marking: By customer’s requirement. Options: Oil Tanker: 300L carbon steel.

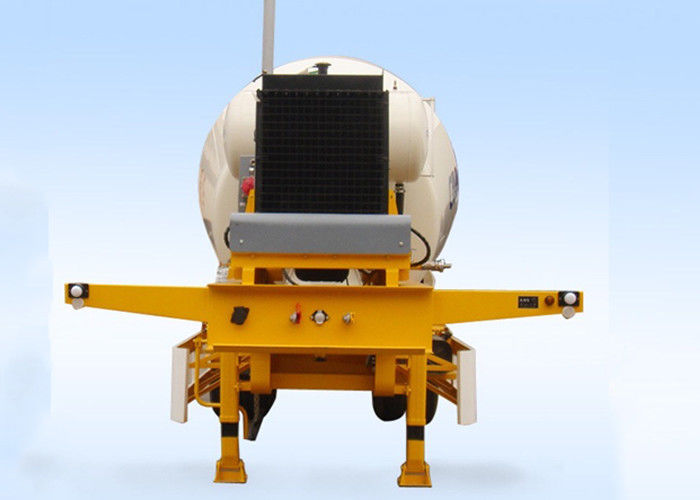

Construction Material Carbon Steel Tanker Trailer , Concrete Mixer Trailer 12 CBM 0
