products

Home > products > Truck Trailer Spare Parts > GETH804B -80/100 Truck Spare Parts Bottom Valves Emergency Valves Foot Valves

GETH804B -80/100 Truck Spare Parts Bottom Valves Emergency Valves Foot Valves

Name: GETH804B -80/100 Truck Spare Parts Bottom Valves Emergency Valves Foot Valves
Brand: GENERAL EAST CO.,LTD
SKU: GETH804B-80/100
Price: 226.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ADR,DOT

Model Number: GETH804B-80/100

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: CASES

Delivery Time: 10 WORKING DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 UNITS / MONTH

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                commercial truck parts and accessories, truck trailer parts


Product Description

Bottom Valves-Emergency Valves	GET	H804B-80/100
Technical Data
Emergency Valves Norminal Diameter	3"
Emergency Valves Working Pressure	0.6MPa
Emergency Valves Material	304 Stainless Steel
Emergency Valves Open Method	MECHANICAL
Emergency Valves Temperature Trange	-20~+70℃
Description of Emergency Valves
Emergency shut valve is installed on the bottom of the tanker, the tope parts is tightly sealed inside the tanker. When pipeline or valve is broken sddenly, it will keep the tanker still tightly sealed to avoid the fuel leaking out to improce the safety during transportation. The main body is made of 304 Stainless Steel under the precision die casting with the advantage of simple structure , longer service life, easy servicing, etc. It can be made of 326 Stainless Steel if need, but Please inform us before order.
Benefit and features of Emergency Valves
1. it is suitable for Chemicals transportation. 2. Temperature Range: -20℃~+150℃ 3. Discharge Cable Controller To do the mechanical Control 4. To Install the Cylinder To make it into Pneumatic Control

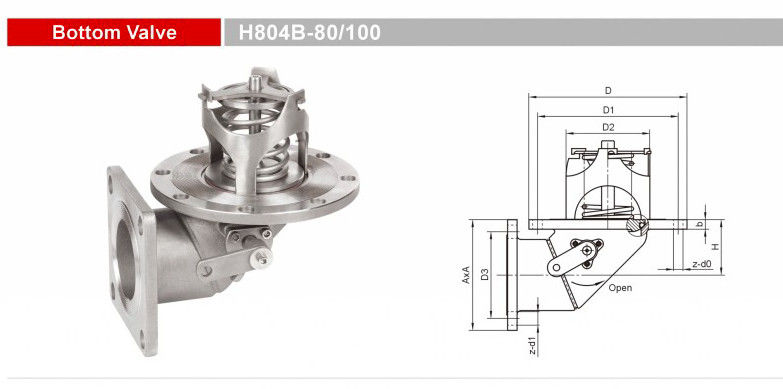

Main Size Data of Bottom Valves-Emergency Valves

Name

Model

z-d0

z-d1

Diameter

Pressure

BOTTOM VALVE

GET

H804B-80

144

ϕ200

ϕ178

ϕ105

ϕ160

8-ϕ14

4-ϕ17

0.6MPa

GET

G804B-100

155

ϕ220

ϕ190

ϕ130

ϕ170

8-ϕ14

4-ϕ17

0.6MPa

GETH804B -80/100 Truck Spare Parts Bottom Valves Emergency Valves Foot Valves 0

GETH804B -80/100 Truck Spare Parts Bottom Valves Emergency Valves Foot Valves 2

GETH804B -80/100 Truck Spare Parts Bottom Valves Emergency Valves Foot Valves 3
