Safe And Reliable Truck Spare Parts Tank Manlid Manhole Cover GETC801B-560/580

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ADR,DOT

Model Number: GETC801B-560/580

Payment & Shipping Terms

Minimum Order Quantity: 5

Packaging Details: CASES

Delivery Time: 10 WORKING DAYS

Payment Terms: L/C, T/T, Western Union

Supply Ability: 1000 UNITS / MONTH

Get Best Price
Product Details
Highlight:

truck replacement parts

,

commercial truck parts and accessories

Product Description

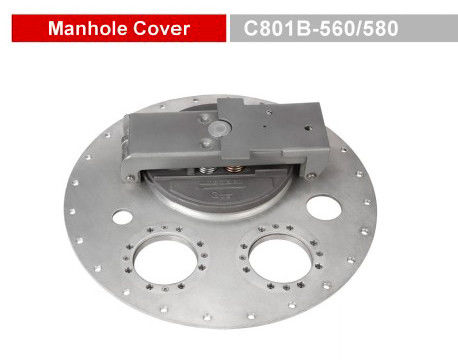

Aluminum Alloy Tank Manlid , Manhole Cover for tankers , GETC801B-560/580



Aluminum Alloy Tank Manlid , Manhole Cover for tankers , GETC801B-560/580
TANKER PARTS TECHNICAL DATA
whole diameter of Manhole Cover 20"
Norminal Diameter of Manhole Cover 10"
Emergency open pressure of Manhole Cover 21KPa-32KPa
Manhole Cover Max emergency flow rate 7000m³/h (When 34 Kpa)
Manhole Cover Material Aluminum Alloy
Manhole Cover Installment mode Flanged
Temperature range of Manhole Cover -20~+70℃

Main Size Data
Name Model D0 D1 D2 H b z-d
manhole cover GET C801B-560 ϕ560 “ϕ”530   88 7 24-ϕ11
GET C801B-580 ϕ580 “ϕ”542   88 7 24-ϕ11

Description of Manhole Cover
Manhole Cover is installed on the top of the tanker to prevent the inside fuel from leakage when the tanker is over rolled. With P/V vent inside to adjust the pressure, When where is pressure differences inside and outside the tanker, it will automatically inlet or exhaust air to adjust the pressure so that it can ensure the safety and environmental protection. It is suitable to transport petroleum, diesel, kerosene, and the other light fuel, etc
Benefit and Features of Manhole Cover
1. Emergency Exhausting Design
When the tanker truck is in high temperature condition, the manhole will automatically exhaust the air inside to release the pressure, ensuring the safety of the tanker

2. With P/V vent inside
When there is pressure differences inside and outside the tanker it will automatically inlet or exhaust air to adjust the pressure so that it can ensure the safety and environmental protection.

3. Secondary Open Design
When open the up blinder plate, it will release the pressure out to prevent the workers’ from pushing over

4. Blinding holes design
In the main plate of the manhole, there are three blinding holes can be installed with vapor vent valve, optic Sensor, Dip tube or Ou Tamale Vacuum Valve according to the user’s demand

5. Superior Process Performance
The main Plate is stamped, it is more light and sturdy
