Stainless Steel 304/316 Positive / Negative Pressure Safety Valve For Chemical Tankers

Product Details

Place of Origin: China

Brand Name: GET | TRAILERBULL

Payment & Shipping Terms

Minimum Order Quantity: 6 sets

Price: $360.00 - $450.00/sets

Packaging Details: Packed in Case

Supply Ability: 2000 Set/Sets per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                stainless steel 304 pressure safety valve, stainless steel 316 pressure safety valve, chemical tankers pressure safety valve


Material:	Stainless Steel 304/316	Certificate:	API
Usage:	Chemical Tankers	Function:	Set Pressure Customized
Lining:	None	Port:	QINGDAO,CHINA

Material:	Stainless Steel 304/316
Certificate:	API
Usage:	Chemical Tankers
Function:	Set Pressure Customized
Lining:	None
Port:	QINGDAO,CHINA

Product Description

Product Paramenters

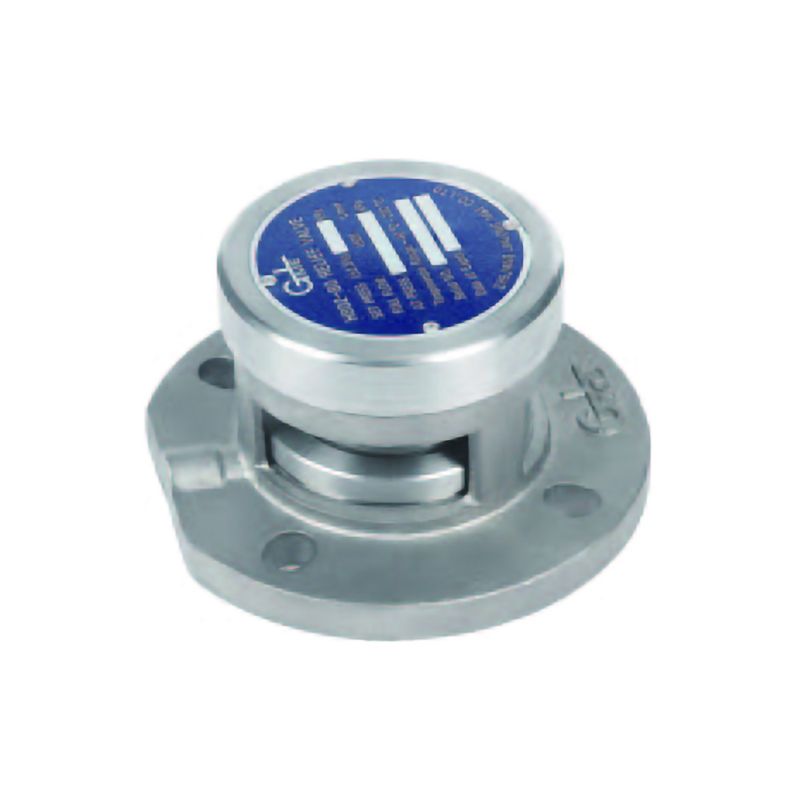

Positive/Negative Pressure Safety Valve

It is installed on the top of the tanker, with the function of releasing the emergency pressure.When the internal pressure is higher than the rated releasing pressure,it will be open and release the extra pressure.

Nominal diameter	3"
Working Pressure	0.6MPa
Main Material	Stainless Steel
Installation	Flanged
Open Pressure	0.05Mpa-0.4Mpa
Temperature range	-20~+120℃

Function& Feature

Outer Diameter: 3”
Structure Feature:
With pressure measure hole can install pressure gauge too observe the pressure in the tanker.
With negative pressure suction device, it can adjust the pressure difference between tanker inside and outside.

Products Description

Bottom Valve Introduction

It install on the bottom of the tanker with the disc sealed inside it.Valve body with self-cut groove.When in the event of
accidental damage the external housing will break away from the self-cut groove, keeping the connection to the valve tank
mounting flange, leaving the bottom valve sealing mechanism within the tank compartment intact, efficiently protecting the tanker from leakage, ensuring the safety of transportation.It is suitable for water, diesel, petrol and other light fuel.

Function & Feature
Special surface treatment

Aluminum alloy surface is treated by oxidation to improve the anti-corrosion.
Large Flow

Reasonable fluid mechanics design to ensure large flow of input and output.
Emergency shut off

When hit with a strong force, the valve body will break down along the shear groove,
to keep the tanker sealed.
Mechanical Switch

When pneumatic switch can not be opened,it can open by mechanical switch
Automatically closed
When the temperature rise 75℃±5℃,during the working, it can automatically closed with fusible element.
