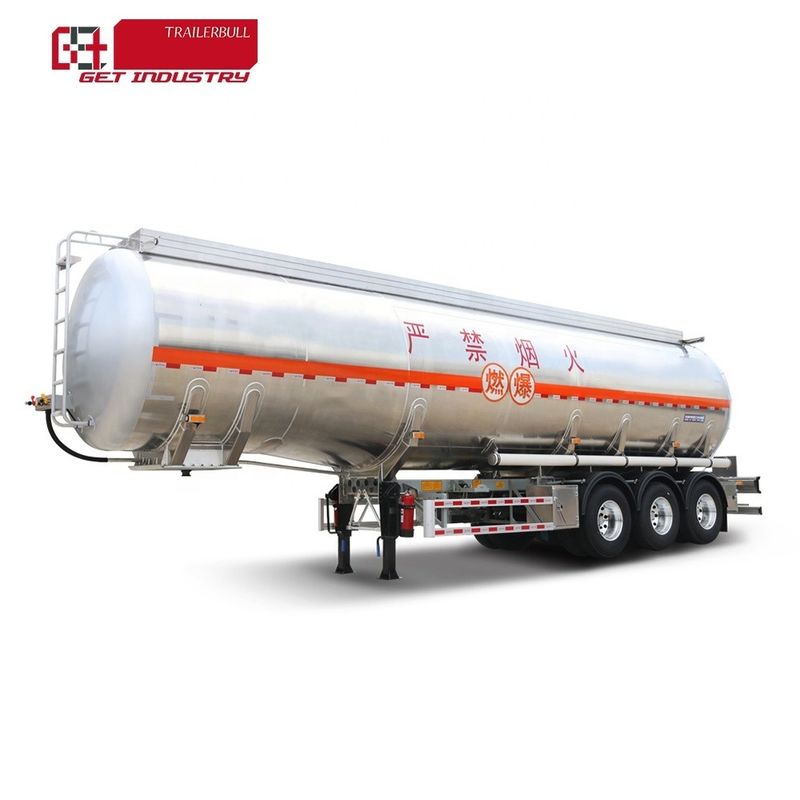

Mechanical Tandem Suspension Aluminum Tanker Truck Semi Trailer with 3 Axles

Product Details

Place of Origin: China

Brand Name: GET

Certification: DOT

Payment & Shipping Terms

Minimum Order Quantity: 3 units

Price: $20,000.00 - $45,000.00/units

Packaging Details: Bulk vessel or Roll-Roll

Supply Ability: 200 Unit/Units per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                tanker semi trailer, tank semi trailer


Use:	Truck Trailer	Type:	Semi-Trailer
Material:	Steel	Max Payload:	50 000 L
Tanket Material:	Aluminum Alloy	Tanker Application:	Fuel , Oil , Diesel, JET, Gasoline, Water,Bitumen
Trailer Axle:	3 Sets Square Drum Axle Brand FUWA / BPW	Trailer Suspension:	Mechanical Tandem / Air Spring / Bogie
Trailer Brake:	Dual Air Brake System, WABCO/HALDEX Relay Valve, OPTIONS: ABS/EBS	Tanker Loading:	Pneumatic Bottom API Adaptor Loading Valve System
Tanker Valve Options:	Emergency Shut Foot Valve ,Vapor Adaptor Valve,Combing Vent	Trailer Surface:	Clean SA-2.5 Grade With Marine Paint Of Not Less Than 80μm
Port:	QINGDAO,CHINA

Use:	Truck Trailer
Type:	Semi-Trailer
Material:	Steel
Max Payload:	50 000 L
Tanket Material:	Aluminum Alloy
Tanker Application:	Fuel , Oil , Diesel, JET, Gasoline, Water,Bitumen
Trailer Axle:	3 Sets Square Drum Axle Brand FUWA / BPW
Trailer Suspension:	Mechanical Tandem / Air Spring / Bogie
Trailer Brake:	Dual Air Brake System, WABCO/HALDEX Relay Valve, OPTIONS: ABS/EBS
Tanker Loading:	Pneumatic Bottom API Adaptor Loading Valve System
Tanker Valve Options:	Emergency Shut Foot Valve ,Vapor Adaptor Valve,Combing Vent
Trailer Surface:	Clean SA-2.5 Grade With Marine Paint Of Not Less Than 80μm
Port:	QINGDAO,CHINA

Product Description

Carbon Steel Tanker Truck Semi Trailer with 3 Axles
What is a Tanker Truck Trailer
	Tank Truck trailers or chassis or "tanker" trailers are used for hauling liquids such as gasoline, diesel, jet and alcohol ,LPG ,LNG and liquid food or powder , and also the water and other chemical liquid, or various types of gases. They are similar in principle to intermodal trailers but with a very different frame intended to be attached to a liquid or gas tank, hence the name. Most of them are designed with a lowered centre of gravity to ensure greater stability. Generally bottom loaded and emergency valves with the ability to recover any waste vapor for safety reasons. For the material there are mainly Carbon Steel, Aluminum alloy and Stainless steel, even composite material like FRP for chemicals.

Why Choose Aluminum Alloy

1. Aluminum alloy reduces the weight up to 65% comparing to traditional carbon steel,it can made to be lihgter but with larger Volume capacity. 2. Aluminum Alloy can not get rust,can keep the transporation quality of the liqulid, so it is popular for the Aircraft Jet. 3. Easy to Recycle and Remain a good residual value for material sale

Our Tanker Advantages

1. light weight and high-volume
Max Volume 50000 Liter Min Weight 6600 Kg European ADR Standard G.E.T Vehicles provides lightweight and high-volume aluminum fuel tank semi-trailer with 3 axles to customers. With 50000-liter max volume, 6600kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry.

2. Operation Monitoring System

Operation monitoring system detects the whole process about tank loading, transportation and tank unloading. All real-time information about manholes, cut off valves, API connections, pipes and bottom valves will be detected and saved.

3. Closed Bottom Loading System-ADR Valves

There are many significant advantages offered by Closed Loading System, such as fire prevention, spill prevention, higher operation safety, vapor recovery, avoidance of product contamination, faster loading and less expensive loading islands. It has become a standard required by the government.

4. Air Suspension - BPW ,SAF

Comparing to traditional leaf spring suspension, air suspension can adjust the extent of soft or firm and the height of the vehicle, provide enhanced performance of shock-absorbing and driving safety BPW,SAF,York,FUWA as options.

5. Stability System-ABS , EBS

The stability system of G.E.T Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control. Brake System: WABCO/HALDEX relay emergency valve, ABS,EBS as Optional

6. Lift-up and Self-Steering Axle System-BPW ,SAF Axles

Lift-up and Self-Steering Axle System can increase driving distance and reduce costs of tires significantly. Test results indicate that the total distance of tires mounted on this system can be up to 750000 km, twice or more than traditional system.

ADR Tanker Safety Valves

Emergency Cutting Valves	Aluminum Alloy	φ 4" (100)
API Adaptor	Aluminum Alloy	φ 4" (100)
Vapor Vent Valve	Aluminum Alloy	φ 3" (80)
Combing Vent Valve	Aluminum Alloy	φ 3" (80)
Pneumatic Control Block	Aluminum Alloy	0.4~0.8MPa
Optic Sensor and Optic Socket	The optic sensor is installed in the fuel tanker truck when doing the bottom loading work,it will detect the inside situation of the tanker,with the platform of the filling system to ensure the safety of the bottom loading to avoid the leakage.The length and material of pole can be ordered by user’s demand
Water Vapor Separator	It is installed in the pipework.Before the air goes into the pipeline,it will enter this separator to be analyzed.The air will be atomized and added the lubricate.Then it will enter the pipeline to lubricate the space parts.There is a regulating valve in the separator in order to adjust the air pressure.
Interlock Valve	It is installed in the vapor adaptor valve to interlock amon the pneumatic valves.Two-ways-t-structure with automaticback.When the handle is pressed, it will go back the original position after release.
Fuel Predictor	It is installed on the loading position ,the internal roller with 8 labels.The labels can be manually changed to predict the inside fuel. JET A1 /Empty/Fuel Oil /Kerosene /Diesel /Gasoline /Unleaded /Super Gasoline
Flow Meter	It is installed on the discharge pipe to measure the volume of the dischage fuel.
Refuel System	Oil Pump DC/ Refuel Measure Machine / Refuel Gun with 5/ 9m Pipe/ Pipe Roller

Truck Trailer Chassis Running systems
	Landing gear	25T ( 55,000 lbs) capacity, 2-speed 19” travel with low “T” shoes, Jost Brand
	Landing gear			Crank handle is located on the driver’s side of the chassis.
		Suspension	Mechanical Tandem suspension with leaf springs. Brand : BPW, SAF,FUWA,York Options: Air Suspension , Bogie Suspension
		Axles	Drum Brake Square or Round Axles capacity from 8T to 20T ; Option : Disc Type Manufacturer: FUWA ,Options: BPW,SAF
		Wheels	22.5 x 8.25 hub-piloted Steel wheels. Option : Aluminum Alloy
		Tires	11R22.5-16PR tubeless type,TRIANGLE /DOUBLE COIN/ MICHELIN / Bridgestone as optional
		Brake System	Dual air brake system, WABCO/HALDEX relay emergency valve, OPTIONS: ABS brake system
		Electrical	OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards. The proof design is used for 4” LED lighting.
		Ladder	Detachable, RIGID STEEL fabrication, mounted at rear center of tanker. The ladder vertical riser will be 175mm above the coaming.
		Hose Carries	PVC ∅160*5200mm
		Painting	Abrasive blast of all metal surfaces – not less than SA-2.5 to achieve clean bare steel Surface will be coated with marine paint of minimum 70% Zinc- Rich primer and true acrylic aliphatic urethane topcoat, color optional, total thickness not less than 80μm after dry membrane
		MISC	GET standard marking, document holder, conspicuity tape, 24”x27” black rubber mud flaps
		Option	Hubodometer, PSI tire inflation system

FAQ

Are we manufacturers or traders? Why you are just show Trade company ?

We are manufacturer, we have 3 factories in China for different Vehicles and projects with different names for 30 years.We do business like to visit them and meeting in face to face before , so we have no Stores in Internet, but this year, the virus reason , we can not travel again , have to make it in internet.

GET industry is a new company established in Jinan City , the Center of China Havy Machine to organize the international business of all our factories , so it is just show as a trading company in Alibaba.

WHY CHOOSE CARBON STEEL TANK SEMI TRAILER ?

Max. Volume 50000 Liter Min. Weight 9200 Kg European ADR Standard Carbon Steel is the favorite material of Chinese tanker-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs. G.E.T Vehicles provides high-volume and small-size carbon steel fuel tank semi-trailer with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry.
