Product Details
Place of Origin: China
Brand Name: TRAILERBULL
Certification: CE
Payment & Shipping Terms
Minimum Order Quantity: 2 units
Price: $20,000.00/units 2-4 units
Packaging Details: SKD OR CKD TYPE WITH CONTAINER
CBU TYPE BY DRY BULK OR ROLL-ROLL
Supply Ability: 200 Box/Boxes per Month
Use: |
Truck Trailer |
Type: |
Semi-Trailer |
Material: |
Plastic |
Size: |
30ft |
Max Payload: |
12 T |
Truck Body Structure: |
FRP +PU Polyurethanes+FRP |
K.VALUE: |
0.295 W/㎡ ℃ |
Min.Temperature With Refrigerator: |
-32 ℃ For Air Frozen / -40 ℃ For Eutectic Plates |
Truck Body Roof: |
FRP Composite Sandwich Panels With UV Protection Coating |
Truck Body Floor: |
Plywood And Timber Cross Beam Embeded |
Truck Body Portal: |
Stainless Steel 304 ,2-wings Opening Hinge Doors / Roll Up Door |
Refrigeration Units: |
Air Cooling Or Eutectic Plates As Optionals |
Trailer Axles: |
12T FUWA ( BPW) ABS Axles |
Suspension: |
Mechanical Suspension ( Air Spring Optional) |
Truck Body Working Life: |
10-15 Years According To The Working Condition |
OE NO.: |
GET.9XLC.1/30 |
Port: |
QINGDAO,CHINA |
Use: |
Truck Trailer |
Type: |
Semi-Trailer |
Material: |
Plastic |
Size: |
30ft |
Max Payload: |
12 T |
Truck Body Structure: |
FRP +PU Polyurethanes+FRP |
K.VALUE: |
0.295 W/㎡ ℃ |
Min.Temperature With Refrigerator: |
-32 ℃ For Air Frozen / -40 ℃ For Eutectic Plates |
Truck Body Roof: |
FRP Composite Sandwich Panels With UV Protection Coating |
Truck Body Floor: |
Plywood And Timber Cross Beam Embeded |
Truck Body Portal: |
Stainless Steel 304 ,2-wings Opening Hinge Doors / Roll Up Door |
Refrigeration Units: |
Air Cooling Or Eutectic Plates As Optionals |
Trailer Axles: |
12T FUWA ( BPW) ABS Axles |
Suspension: |
Mechanical Suspension ( Air Spring Optional) |
Truck Body Working Life: |
10-15 Years According To The Working Condition |
OE NO.: |
GET.9XLC.1/30 |
Port: |
QINGDAO,CHINA |

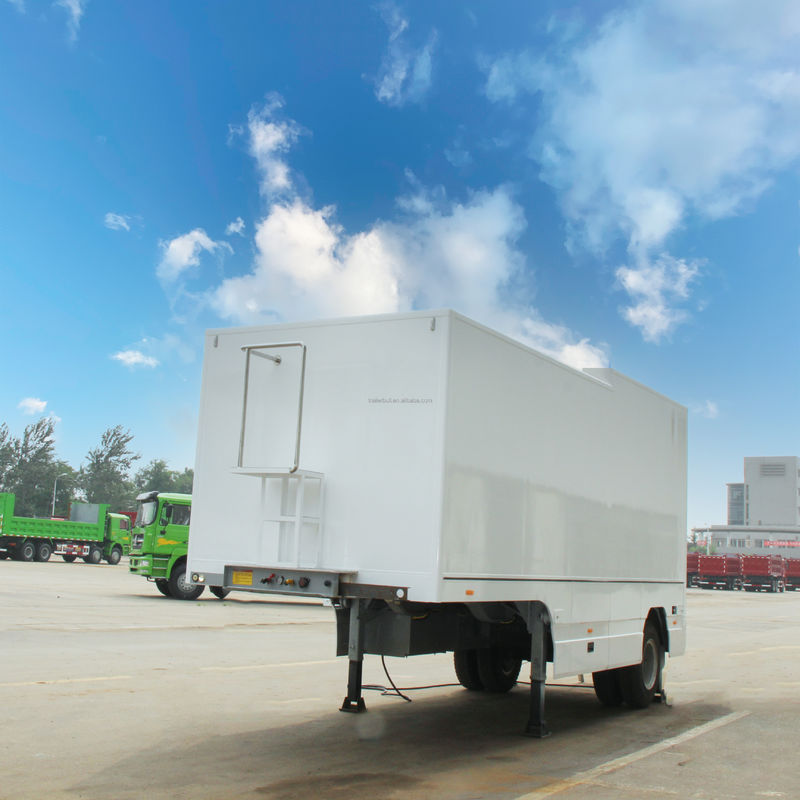

30ft Frozen food FRP coating Refrigerated Semi Trailer with Thermoking carrier Refrigerator Units for Frozen meat ice cream | ||||||
1. MODEL: | GET.9XLC.1/30 | |||||
This insulated/Refrigerated semi trailer made with our FRP-Pie Modular Sandwich Panels, can equip the Thermoking or carrier refrigerator units to transport the frozen or fresh food and vegetables with temperature from -18 ℃ to 15℃. it meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications. | ||||||
2. GENERAL PARAMETERS | ||||||
Overall Length | 28 ft | 8,600 mm | ||||
Overall Width | 8 ft | 2,480 mm | ||||
Overall Height | 13 ft | 4,000 mm | ||||
Fifth Wheel Height | 4 ft | 1,200 mm | ||||
Kingpin Location | 2 ft | 700 mm | From the rear face of the front bolster | |||
Landing Gear Location | 8 ft | 2,420 mm | From the kingpin center | |||
Axle Spread | 4 ft | 1,310 mm | ||||
Tandem Location | 21 ft | 6,350 mm | From Kingpin to Front Suspension Hanger | |||
Tare Weight | 13,190 Ibm | 5,980. kg | ||||
Payload | 26,460 Ibm | 12,000. kg | ||||
3.Insulated & Refrierated Van | ||||||
K .Value for the Composite Box | 0.295 W/㎡ ℃ | |||||
MAX.BOX VOLUME: | 31.12 m³ | |||||
Overall Length | 20 ft | 6,010 mm | Exterior dimenion | |||
Overall Width | 8 ft | 2,290 mm | Exterior dimenion | |||
Overall Height | 9 ft | 2,720 mm | Exterior dimenion | |||
Floor Thinckness | 4 .13 inch | 105 mm | ||||
Side Wall Thickness | 3 .31 inch | 84 mm | ||||
Front Wall Thickness | 3 .31 inch | 84 mm | ||||
Rear Door Panel | 3 .31 inch | 84 mm | ||||
Roof Wall | 4 .13 inch | 105 mm | ||||
4. Box Structure | ||||||
super Structure | self-supporting body, without cross bars , inside and outside skin made of glassfibre reinforced polyester, reinforced with Z-straps ,the Core of hard foam with best insulation properties. Without metallic carrier elements = without direct heat conductivity The body are watertight The plastic elements are flam resistant | |||||
Rear Wall | Two-wing full open Rear door , approx ,80 mm thick with 5-fold special sealing ,rigid frame joints. Each Door Wing with 1 external power-brace lock with one -hand operation Door Wings inclinable to the sidewalls with hold-open device (loose) | |||||
Portal | stainless Steel 304 | |||||
Surface | The Plastic elements are painted white | |||||
7. STEEL STRUCTURE AND TRAILER CHASSIS SYSTEM | ||||||
Main beam | Deep: 450 mm (17.7") Auto-welt Main Beam With High strength low alloy steel with 350 MPa yield hot-rolled I-beam, ASTM A572 Grade 50 or equivalent (Q345) | Flanges | Upper Flanges: 14mm (1/2 "), Lower Flanges: 16mm (2/3 ") High strength low alloy steel with 350 MPa yield hot-rolled I-beam, ASTM A572 Grade 50 or equivalent (Q345) | |||
Rear Bumper | 100x100mm (4” x 4” ) square tube step with taper “H” section vertical member | Landing gear | 25T ( 55,000 lbs) capacity, 2-speed 19” travel with low “T” shoes | |||
Bar is welded to uprights and main beam. | Crank handle is located on the driver’s side of the chassis. | |||||
Suspension | mechanical tandem suspension with leaf springs. Options: Air Suspension , Bogie Suspension | Upper coupler | 1/4” pick up plate with JOST 2” diameter square type king pin per SAE standard | |||
Axles | 150mm (6") Square axles with 13T (28,660lb) capacity, 1840mm (72.5” ) track, 420x 180mm (16.5”X7”) brake; TIMKEN bearing/seal, 37 spline, HALDEX 6.0” automatic slack adjusters, hub internally vented; 10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options) Brake Type: Drum Brake ; Option : Disc Type Manufacturer: FUWA ,Options: BPW,SAF | |||||
Wheels | 22.5 x 8.25 hub-piloted wheels | Tires | 11R22.5-14PR tubeless type | |||
Brake System | Dual air brake system, WABCO/HALDEX relay emergency valve, OPTIONS: ABS brake system | |||||
Phillips glad hand 12-0061 and 12-0081 and T30/30 stroke brake chamber | ||||||
3/8” blue air tube for control and 3/8” red for supply, 40L air tanks, meet FMVSS 121 | ||||||
Electrical | OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards. The proof design is used for 4” LED lighting. | |||||
Painting | Abrasive blast of all metal surfaces – not less than SA-2.5 to achieve clean bare steel Surface will be coated with marine paint of minimum 70% Zinc- Rich primer and true acrylic aliphatic urethane topcoat, color optional, total thickness not less than 80μm after dry membrane | |||||
Option | Hubodometer, PSI tire inflation system | |||||
