Product Details
Place of Origin: China
Brand Name: G.E.T
Certification: DOT , CCC
Payment & Shipping Terms
Minimum Order Quantity: 3 units
Price: $12,000.00 - $17,000.00/units
Packaging Details: CONTAINER
Supply Ability: 200 Unit/Units per Month
Use: |
Truck Trailer |
Type: |
Semi-Trailer |
Material: |
Steel |
Size: |
ISO 40 Ft |
Max Payload: |
45T |
OE NO.: |
GET9453TJZP |
Trailer Size: |
ISO 40ft |
Trailer Application: |
Container / Regular Cargos / Pipes / Logs |
Trailer Material: |
ASTM A572 Grade 50 Or Equivalent (Q345) |
Trailer Axle: |
Square Drum Axle Brand FUWA / BPW |
Trailer Suspension: |
32T Grade Bogie Suspension Axle |
Trailer Tire: |
12R22.5 Tubless Triangle / Michelin |
Container Twist Locks: |
8 / 12 Sets For ISO Container |
Trailer Brake: |
Dual Air Brake , WABCO Relay Valve, OPTIONS: ABS/EBS |
Trailer Painting: |
Electrophoretic Spraying |
Port: |
QINGDAO,CHINA |
Use: |
Truck Trailer |
Type: |
Semi-Trailer |
Material: |
Steel |
Size: |
ISO 40 Ft |
Max Payload: |
45T |
OE NO.: |
GET9453TJZP |
Trailer Size: |
ISO 40ft |
Trailer Application: |
Container / Regular Cargos / Pipes / Logs |
Trailer Material: |
ASTM A572 Grade 50 Or Equivalent (Q345) |
Trailer Axle: |
Square Drum Axle Brand FUWA / BPW |
Trailer Suspension: |
32T Grade Bogie Suspension Axle |
Trailer Tire: |
12R22.5 Tubless Triangle / Michelin |
Container Twist Locks: |
8 / 12 Sets For ISO Container |
Trailer Brake: |
Dual Air Brake , WABCO Relay Valve, OPTIONS: ABS/EBS |
Trailer Painting: |
Electrophoretic Spraying |
Port: |
QINGDAO,CHINA |
Bogie Suspension heavy duty 40ft fuwa bpw axle ISO Container Drop-Deck Flatbed Truck Semi Trailer | ||||||
1. MODEL: | GET9452TJZPB | |||||
This Flat bed semi trailer is designed with bogie suspension for transporting a 40’ ISO container and two 20ft ISO Container and other cargos at bad road condition . It meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications. | ||||||
2. GENERAL | ||||||
Overall Length | 41 ft | 12,390 mm | ||||
Overall Width | 8 ft | 2,490 mm | ||||
Overall Height | 5 ft | 1,550 mm | ||||
Fifth Wheel Height | 4 ft | 1,200 mm | ||||
Kingpin Location | 4 ft | 1,150 mm | From the rear face of the front bolster | |||
Landing Gear Location | 8 ft | 2,420 mm | From the kingpin center | |||
Axle Spread | 5 ft | 1,550 mm | ||||
Tandem Location | 24 ft | 7,425 mm | From Kingpin to Front Suspension Hanger | |||
Tare Weight | 16,540 Ibm | 7,500. kg | ||||
Payload | 77,170 Ibm | 35,000. kg | ||||
3. STEEL STRUCTURE AND COMPONENTS | ||||||
Trailer Main beam | Deep: 450 mm (17.7") Auto-welt Main Beam With High strength low alloy steel with 350 MPa yield hot-rolled I-beam (Q345) | |||||
Flatbed Trailer Floor | 1/8" (3mm) Thickness ASTM A572 grade 50 Checked Steel Plate Options: 1/5" ( 5mm) | |||||
Kingpin Upper coupler | 1/4” pick up plate with JOST 2” diameter square type king pin per SAE standard | |||||
Flatbed Front Bolster | ASTM A572 grade 50 steel U form channel with 7'' wide x 6'' high x 5/16 thick open section, 3/8'' top plate | |||||
Rear Bolster | ASTM A572 grade 50 steel U form channel with 7'' wide x 7'' high x 5/16 thick open section, 3/8'' top plate | |||||
Rear Bumper | 100x100mm (4” x 4” ) square tube step with taper “H” section vertical member | |||||
Bar is welded to uprights and main beam. | ||||||
Twist lock | 8 Sets | 1x40ft Container and 2x20ft Container | ||||
4.TRAILER CHASSIS RUNNING GEAR | ||||||
Landing gear | Jost Or CIMC Brand 28T two speed telescopic manual landing gear | |||||
Crank handle is located on the driver’s side of the chassis. | ||||||

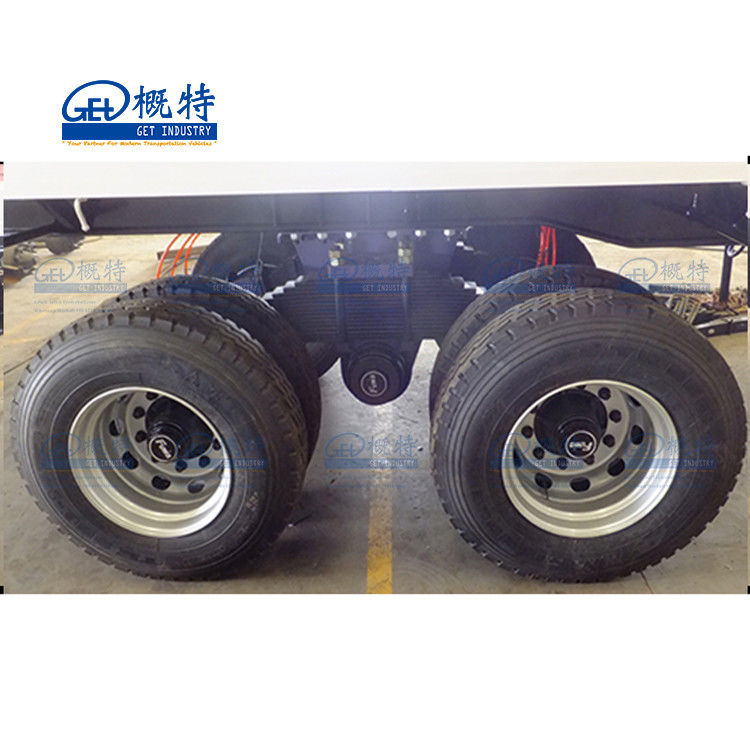

Trailer Suspension | 32T Grade Monoblock Bogie Suspension with axles 16T X 2 sets, | |||||
Axles | 150mm (6") Square axles with 13T/15T/16T/20T capacity, 10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options) Option : Disc Type Manufacturer: FUWA ,Options: BPW,SAF | |||||
Wheels | steel disc wheel, 10 holes ISO, ; Option: Aluminum alloy rim | |||||
Tires | Tubeless Tires , 8.25R15,8.25R20,11.00R22.5,12.00R22.5,12.00R20,385/65R22.5,425/65R22.5 , Manufactuter: Double Coin, Triangle, Michelin, Firestone | |||||
Brake System | Dual line pneumatic brake, SAE hose and connector, WABCO relay emergency valve, OPTIONS: ABS brake system | |||||
T30/30 spring brake chambers, T30 brake chambers | ||||||
3/8” blue air tube for control and 3/8” red for supply, 40L air tanks | ||||||
Electrical | OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards. Receptacle::7 way socket SAE standard, China Wiring: Electric cable protected by PVC conduit on main frame | |||||
Painting | Electrophoretic spraying, that is, water-based coating, can be dissociated into a water-soluble film-forming material which can form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of the object to form a coating film | |||||
MISC | GET standard marking, document holder, conspicuity tape, Steel or black rubber mud flaps | |||||
Option | Hubodometer, PSI tire inflation system | |||||
