C804as-100 Bottom Emergency Shut Tank Truck Safety Valves

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Truck And Trailer Spares, Truck Trailer Spares, Heavy Trailer Spares


Model NO.:	GET/C804AS-100	Connection Form:	Flange
Structure:	Butterfly	Pressure:	0.6MPa
Flow Direction:	Unidirection	Standard:	API
Application:	Industrial Usage, Fule Tankers	Body Material:	Aluminum Alloy
Temperature Of Media:	Low Temperature, Normal Temperature	Customized Support:	OEM
Open Method:	Mechanical /Pneumatic Can Choose	Power:	Mechanical
Certificate:	API	Usage:	Fuel ,Oil, Jet
Warranty:	1 Year	Transport Package:	Packed In Case
Specification:	4"	Trademark:	GET EnERGY GET VEHICLES
Origin:	China	HS Code:	8716900000
Supply Ability:	500 Set/Sets Per Month	Customization:	Available
Media:	Oil	Temperature:	-20~+70oc

Model NO.:	GET/C804AS-100
Connection Form:	Flange
Structure:	Butterfly
Pressure:	0.6MPa
Flow Direction:	Unidirection
Standard:	API
Application:	Industrial Usage, Fule Tankers
Body Material:	Aluminum Alloy
Temperature Of Media:	Low Temperature, Normal Temperature
Customized Support:	OEM
Open Method:	Mechanical /Pneumatic Can Choose
Power:	Mechanical
Certificate:	API
Usage:	Fuel ,Oil, Jet
Warranty:	1 Year
Transport Package:	Packed In Case
Specification:	4"
Trademark:	GET EnERGY GET VEHICLES
Origin:	China
HS Code:	8716900000
Supply Ability:	500 Set/Sets Per Month
Customization:	Available
Media:	Oil
Temperature:	-20~+70oc

Product Description

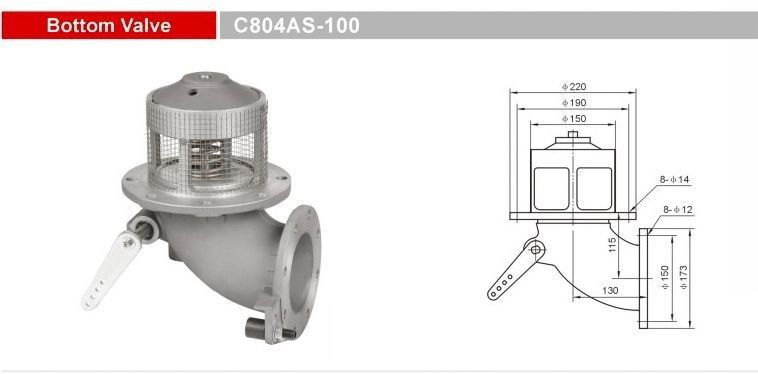

Bottom Emergency shut tank truck safety Valves

Bottom Valves-Emergency Valves	GET	C804AS-100
Technical Data
Emergency Valves Norminal Diameter	4"
Emergency Valves Working Pressure	0.6MPa
Emergency Valves Material	Aluminum Alloy
Emergency Valves Open Method	MECHANICAL
Emergency Valves Temperature Trange	-20~+70ºC
Description of Emergency Valves
Emergency shut valve is installed on the bottom of the tanker, the tope parts is tightly sealed inside the tanker. External shear groove design limits product spillage when the tanker is crashed down, it will automatically cut off itself via this groove under the situation there's no affectation on the sealing. This will efficiently protect the over rolled tanker from leakage to ensure the safety when transportation. This product is suitable for water, diesel, gasoline and kerosene and other light fuel, etc
Benefit and features of Emergency Valves
1. Special Surface treatment The whole valve body is passed a special surface process to improve the anti-corrosion 2. Hydrodynamic body Design and high lift poppet minimized pressure drop to give maximum flow rate. 3. External Shear Groove Meets the standard requirements to limit product spillage in the event of an accident. 4.Two Ways-Operation If need, can be installed a outernal cylinder to do the pneumatic control.

Function& Feature

1.Split structure,It can change valve sealing without remove the valve body.

2.Valve body is oxidized by hard anodes and is not easy abrasion when connecting with joint.

3.The interface dimensions is conform to standard APIRP1004,it can connect with standard API joint.

4.Pneumatic interlocking valve can be installed to realize interlock control by docking


MANHOLE COVE ( STEEL/ ALUMINUM/ STAINLESS STEEL)	EMERGENCY SHUT VALVES (ALUMINUM / STAINLESS STEEL / PTFE LAYER )

API ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER	VAPOR ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER
