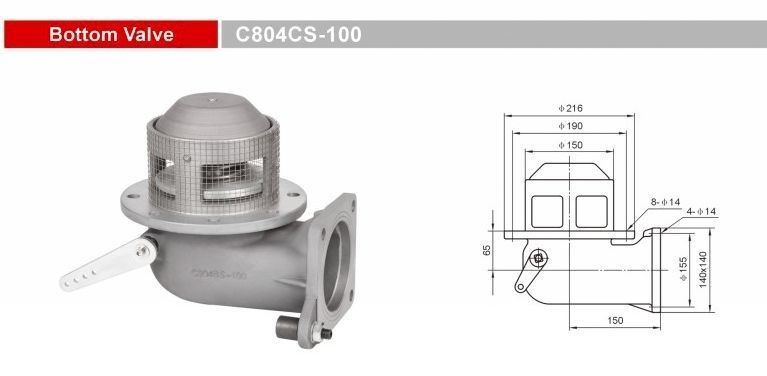

4 Inch Truck And Trailer Spares Dia 100 Bottom Valves-Emergency Valves

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Truck And Trailer Spares, Truck Trailer Spares, Heavy Trailer Spares


Model NO.:	GET/C804CS-100	Connection Form:	Flange
Structure:	Butterfly	Pressure:	0.6MPa
Sealing Form:	Bellows Globe Valve	Flow Direction:	Reversing
Standard:	API	Application:	Industrial Usage, Fule Tankers
Body Material:	Aluminum Alloy	Temperature Of Media:	Low Temperature, Normal Temperature
Customized Support:	OEM	Open Method:	Mechanical /Pneumatic Can Choose
Power:	Mechanical	Certificate:	API
Usage:	Fuel ,Oil, Jet	Warranty:	1 Year
Transport Package:	Packed In Case	Specification:	4"
Trademark:	GET Energy GET VEHICLES	Origin:	China
HS Code:	8716900000	Supply Ability:	500 Set/Sets Per Month

Model NO.:	GET/C804CS-100
Connection Form:	Flange
Structure:	Butterfly
Pressure:	0.6MPa
Sealing Form:	Bellows Globe Valve
Flow Direction:	Reversing
Standard:	API
Application:	Industrial Usage, Fule Tankers
Body Material:	Aluminum Alloy
Temperature Of Media:	Low Temperature, Normal Temperature
Customized Support:	OEM
Open Method:	Mechanical /Pneumatic Can Choose
Power:	Mechanical
Certificate:	API
Usage:	Fuel ,Oil, Jet
Warranty:	1 Year
Transport Package:	Packed In Case
Specification:	4"
Trademark:	GET Energy GET VEHICLES
Origin:	China
HS Code:	8716900000
Supply Ability:	500 Set/Sets Per Month

Product Description

API Adaptor Valve

It is installed on one side of bottom tanker, with the design of quick connecting structure,Interface dimension conform
to API RP1004.It is important component of bottom loading system to get quick detachment without leakage, ensuring much safer and reliable when loading & discharge.It suitable for diesel ,petrol, kerosene and other light fuel.

Emergency Valves Norminal Diameter			4"
Emergency Valves Working Pressure			0.6MPa
Emergency Valves Material			Aluminum Alloy
Emergency Valves Open Method			MECHANICAL
Emergency Valves Temperature Trange			-20~+70ºC

Function& Feature

1.Split structure,It can change valve sealing without remove the valve body.

2.Valve body is oxidized by hard anodes and is not easy abrasion when connecting with joint.

3.The interface dimensions is conform to standard APIRP1004,it can connect with standard API joint.

4.Pneumatic interlocking valve can be installed to realize interlock control by docking

API Adaptor Valve

API Adaptor Valve is installed on one side of the bottom of the tanker, with the design of quick connection structure. Interface dimension is designed according with the API RP1004 standards. This is an important component of the bottom loading system to get quick detachment without leakage, it is much more safe and reliable when doing the work of loading and uploading. This product is suitable for water, diesel gasoline and kerosene and other light fuel, but it cannot be used in corrosive acid or alkali medium.

Function & Feature

1. Hardening Treatment The whole valve body is passed a special hardening process to improve its service life

2. Second Gear Open When do the handle open, there are two stalls to set the flow rate according to the customer's demand.

3. Standardized size Interface dimension is designed according to the API RP1004 Standard, docking with the standard API connector.

4. Light Weight The main Body is made of aluminum alloy; it is more light and sturdy

5. Superior Process Performance Reasonable design for the less pressure differences ensures the large input and output flow rate

6. With the sight glass Convenient to observe the inner working situation

7. Foundation for interlock valve When install the interlock valve, the API Adaptor can be controlled by Air.

8. Easy-Maintenance When in the situation of no need to replace the valve, just to replace the sealing gasket.


MANHOLE COVE ( STEEL/ ALUMINUM/ STAINLESS STEEL)	EMERGENCY SHUT VALVES (ALUMINUM / STAINLESS STEEL / PTFE LAYER )

API ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER	VAPOR ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER
