C804aq-100 Bottom Emergency Shut Valves Heavy Trailer Spares

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Heavy Trailer Bottom Emergency Shut Valves, heavy trailer spares


Model NO.:	GET/C804AQ-100	Connection:	Flange
Pressure:	0.6MPa	Structure:	Pneumatic
Material:	Aluminum Alloy	Body Material:	Aluminum Alloy
Temperature Of Media:	Low Temperature, Normal Temperature	Customized Support:	OEM
Open Method:	Mechanical /Pneumatic Can Choose	Installment Mode:	Hooped
Power:	Pneumatic	Certificate:	API
Usage:	Fuel ,Oil, Jet	Warranty:	1 Year
Transport Package:	Packed In Case	Specification:	4"
Trademark:	GET EnERGY GET VEHICLES	Origin:	China
HS Code:	8716900000	Supply Ability:	500 Set/Sets Per Month
Customization:	Available	Media:	Oil
Certification:	CCC, ISO, CE

Model NO.:	GET/C804AQ-100
Connection:	Flange
Pressure:	0.6MPa
Structure:	Pneumatic
Material:	Aluminum Alloy
Body Material:	Aluminum Alloy
Temperature Of Media:	Low Temperature, Normal Temperature
Customized Support:	OEM
Open Method:	Mechanical /Pneumatic Can Choose
Installment Mode:	Hooped
Power:	Pneumatic
Certificate:	API
Usage:	Fuel ,Oil, Jet
Warranty:	1 Year
Transport Package:	Packed In Case
Specification:	4"
Trademark:	GET EnERGY GET VEHICLES
Origin:	China
HS Code:	8716900000
Supply Ability:	500 Set/Sets Per Month
Customization:	Available
Media:	Oil
Certification:	CCC, ISO, CE

Product Description

Emergency Shut Valves

Bottom Valves-Emergency Shut Valves		GET.C804AQ-100
Technical Data
Emergency Valves Norminal Diameter	4"
Emergency Valves Working Pressure	0.6MPa
Emergency Valves Material	Aluminum Alloy
Emergency Valves Open Method	Pneumatic
Emergency Valves Temperature Trange	-20~+70ºC
Description of Emergency Valves
Emergency shut valve is installed on the bottom of the tanker, the tope parts is tightly sealed inside the tanker. External shear groove design limits product spillage when the tanker is crashed down, it will automatically cut off itself via this groove under the situation there's no affectation on the sealing. This will efficiently protect the over rolled tanker from leakage to ensure the safety when transportation. This product is suitable for water, diesel, gasoline and kerosene and other light fuel, etc

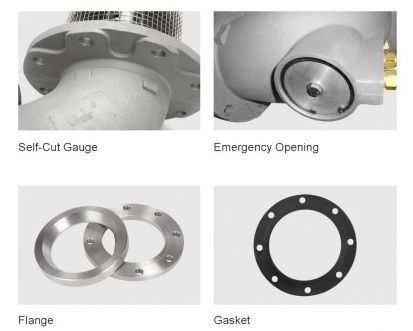

Benefit and features of Emergency Valves
1. Special Surface treatment The whole valve body is passed a special surface process to improve the anti-corrosion 2. Hydrodynamic body Design and high lift poppet minimized pressure drop to give maximum flow rate 3. External Shear Groove Meets the standard requirements to limit product spillage in the event of an accident 4. Manual Opening Device When need to emergency discharging, the pneumatic control is useless, it can be opened by manual way.


MANHOLE COVE ( STEEL/ ALUMINUM/ STAINLESS STEEL)	EMERGENCY SHUT VALVES (ALUMINUM / STAINLESS STEEL / PTFE LAYER )

API ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER	VAPOR ADAPTOR VALVE ALUMINUM / STAINLESS STEEL / PTFE LAYER
