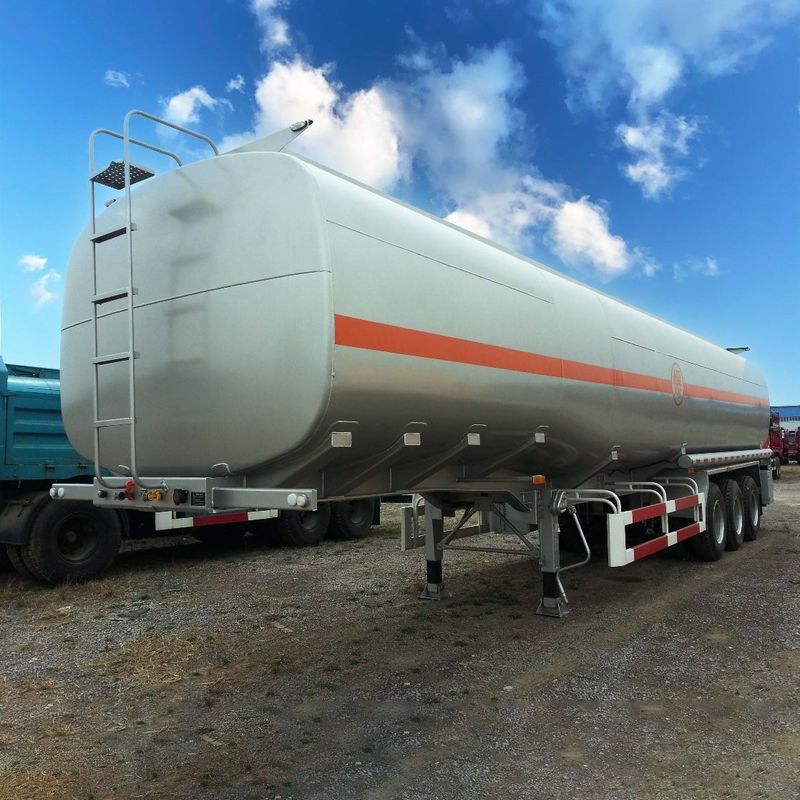

40000 Liters 3 Axle Diesel Fuel Tank Trailer Carbon Steel

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                3 Axle Fuel Tank Trailer, Carbon Steel Fuel Tank Trailer, 40000 Liters Fuel Tank Trailer


Model NO.:	GET9403GYY. Plus+	Wheel Base:	7430+1350+1350
Tread:	1820mm	Grade:	Heavy Duty
Types Of Suspension Systems:	Air Suspension	Shape:	Square-Round
Axle Number:	3	Tire Number:	12
Self-dumping:	Self-dumping	ABS Anti-lock Braking System:	ABS Anti-lock Braking System
Material:	Steel	Condition:	New
Tank Series:	Heavy Duty 3 Axles Carbon Steel Tank Semi Trailer	Customized Tank Volume:	Max. 50 000L Are All Available
Applicable Liquid Medium:	Fuel , Oil , Diesel, Jet, Gasoline, Water	Tank Discharge System:	Pneumatic Bottom API Adaptor Loading Valve System
Tank Safety Valve:	Emergency Shut Foot Valves ,Vapor Adaptor Valve	Truck Trailer Axle:	Fuwa , BPW As Optional
Trailer Suspension:	Mechanical Standard,Optional Air-Bag Spring	Brake System:	Wabco With ABS,Dual Air Brake System, Optional :E
Surface Paint:	Clean SA-2.5 Grade With Marine Paint Of Not Less	Transport Package:	Wax Paint
Specification:	12930x2470x3565	Trademark:	GET ENERGY GET VEHICLES
Origin:	China	HS Code:	8716311000
Supply Ability:	100 Unit/Units Per Month	Customization:	Available
Type:	Semi-Trailer	Load Capacity:	27t

Model NO.:	GET9403GYY. Plus+
Wheel Base:	7430+1350+1350
Tread:	1820mm
Grade:	Heavy Duty
Types Of Suspension Systems:	Air Suspension
Shape:	Square-Round
Axle Number:	3
Tire Number:	12
Self-dumping:	Self-dumping
ABS Anti-lock Braking System:	ABS Anti-lock Braking System
Material:	Steel
Condition:	New
Tank Series:	Heavy Duty 3 Axles Carbon Steel Tank Semi Trailer
Customized Tank Volume:	Max. 50 000L Are All Available
Applicable Liquid Medium:	Fuel , Oil , Diesel, Jet, Gasoline, Water
Tank Discharge System:	Pneumatic Bottom API Adaptor Loading Valve System
Tank Safety Valve:	Emergency Shut Foot Valves ,Vapor Adaptor Valve
Truck Trailer Axle:	Fuwa , BPW As Optional
Trailer Suspension:	Mechanical Standard,Optional Air-Bag Spring
Brake System:	Wabco With ABS,Dual Air Brake System, Optional :E
Surface Paint:	Clean SA-2.5 Grade With Marine Paint Of Not Less
Transport Package:	Wax Paint
Specification:	12930x2470x3565
Trademark:	GET ENERGY GET VEHICLES
Origin:	China
HS Code:	8716311000
Supply Ability:	100 Unit/Units Per Month
Customization:	Available
Type:	Semi-Trailer
Load Capacity:	27t

Product Description

3 Axles 40000L 27t Payload 4 Compartments Carbon Steel Fuel or Refuel Tank Semi Trailer with Fuwa Axle 13t and Air Bag Spring Suspension for Diesel Fuel Jet

What is a Tank Truck

A tank truck or tanker truck (United States usage) or tanker (United Kingdom usage), is a motor vehicle designed to carry
liquefied loads, dry bulk cargo or gases on roads. The largest such vehicles are similar to railroad tank cars which are also
designed to carry liquefied loads. Many variants exist due to the wide variety of liquids that can be transported. Tank trucks tend to be large; they may be insulated or non-insulated; pressurized or non-pressurized; and designed for single ormultiple loads (often by means of internal divisions in their tank). Some are semi-trailer trucks. They are difficult to drive due to their high center of gravity.

Why Choose Our Carbon Steel with 3 axles

Carbon Steel Tank With 3 Axles Max. Volume 50000 Liter Min. Weight 9200 Kg European ADR Standard Carbon Steel is the favorite material of Chinese Tank-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs. We provides high-volume and small-size carbon steel fuel Tank semi-traile with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry. Tank series, Liquid foods, Water, Fuel, LPG, CNG, CO2, grain, powder cement, chemical liquids etc. Tank Size: Round Shape, Square Round shap,Ellipse Shap etc. Able to be transportation in container at CKD and SKD type, and we supply the technology support for assembling. Effective volume: 3000L----80000L

1. Low Investment

2. High Steel Material

3. Easy & Quick Repair

4. Low maintenance costs


Front elevation	Valves Box elevation	Tail elevation

40000L 27T Payload Carbon Steel Fuel Or Refuel Tank Semi Trailer 3 Axles with 4 Compartments for Diesel Fuel Jet
Items		GET9403GYY.Plus+
Overall Exterior dimension(mm)	Length	12930
	Width	2470
	Height (unload)	3565
Exterior dimension of Tank body(mm)		12670
Tank Capacity(L)		40500
Tank Compartments		4
GVW(kg)		39960
Curb weight(kg)		10000
Rated payload(kg)		27130
Wheel base(mm)		7430+1350+1350
Tread(mm)	Front
	Rear	1830
Front/Rear Overhang(mm)		-/1440
Approach/Departure angle(°)		-/22
Rated payload of 5th wheel		16000
Trailer Running System	Trailer Axle	GET SQUARE AXLE12T*3
	Tires	11.00R22.5
	Suspension	Air Bag Spring Suspension
	Brake System	Dual air brake system, Wabco relay emergency valve with ABS OPTIONS: EBS
	Kingpin:	3.5" /2" JOST.
	Landing Gear:	2 speed road side winding with sand shoe,Type: JOST C200T.
	Electrical System:	Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
OPTIONS : 1. FUEL/WATER PUMP FOR PRIME TRACTOR 2. INSULATED COVER TO BE AN INSULATED Tank

Tank Safety Valves	Manhole Cover	Aluminum Material Size : φ460, 560,580 witih P/V vent Valves and Safety Valves
	Emergency Foot Valves	Aluminum Alloy Material size : 2" (80) , 3" (100) ,Pneumatic Control
	API Adaptor Valves	Aluminum Alloy Material size : 3' (100) API Adaptor Valves
	Vent Recovry System:	Aluminum Material : Vapor Vent Valve,Combing Vent Valve,Vapor Adaptor Valve,Vapor Recovery Joint
	Pneumatic Control System
Others:		Spare Tire Carrier: Equipped two sets per chassis without spare tire. Side Guard: Steel. Tool Box: Equipped one set. Painting: Color by customer's requirement. Marking: By customer's requirement. Options: Oil Tank: 300L carbon steel.

Closed Loading System

There are many significant advantages offered by Closed Loading System, such as fire prevention, spill prevention, higher operation safety, vapor recovery, avoidance of product contamination, faster loading and less expensive loading islands. It has
become a standard required by the government.

Stability System

The stability system of GET Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes
automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control.

Operation Monitoring System

Operation-monitoring system detects the whole process about tank loading, transportation and tank unloading. All real-time information about manholes, cut off valves, API connections, pipes and bottom valves will be detected and saved.

Project in SouthEast Asia

Project In Latin America

Project in Africa

Q1Why choose carbon steel tank semi-trailer?

A1 Carbon Steel is the favorite material of Chinese tanker-manufacturing all the time because of not only its high material strength, but also the characters of easy-repair and low maintenance costs. G.E.T Vehicles provides high-volume and small-size carbon steel fuel tank semi-trailer with 3 axles to customers. With 50000-liter max volume, 9200kg min weight and European ADR standard, it is an optimal transporter for fuel logistic industry.

Q2what is necessary for a Tank Semi trailer Inquiry ?

A2 a. The Volume of the Tank of your demands b. The Material of the tank you want ? C. The loading Liquid Medium for the tank ? For Example: 2 units Carbon Steel 42000L for Fuel with 4 compartments.

Q3How to ship the tank Semi trailers ?

A3 We can supply the tank in two types, one is CBU ( complete Built up ) the other is SKD ( Semi -Knocked Down )and CKD ( complete Knocked Down). a. CBU type can ship with Rol-Rol and General Cargo Vessels and The flatbed Container . b.CKD& SKD Type can ship with Container to save the Freight, and we can aslo supply the assembly Technology.
