FRP / GRP Dry Freight Truck Bodies Box With Prefabricated Fame Work

Name: FRP / GRP Dry Freight Truck Bodies Box With Prefabricated Fame Work
Brand: GENERAL EAST CO.,LTD
SKU: Direct GRP Dry Freight Truck Body
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ISO9001/TS16949

Model Number: Direct GRP Dry Freight Truck Body

Payment & Shipping Terms

Minimum Order Quantity: 3 SETS

Packaging Details: IN CASE OR ON BOX

Delivery Time: 20 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 100 units per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                curtain side truck bodies, dry freight box


Core Material:	Direct GRP Dry Freight Truck Body	Size:	Customized
Profiles:	Aluminum	Box Type:	Dry Freight

Core Material:	Direct GRP Dry Freight Truck Body
Size:	Customized
Profiles:	Aluminum
Box Type:	Dry Freight

Product Description

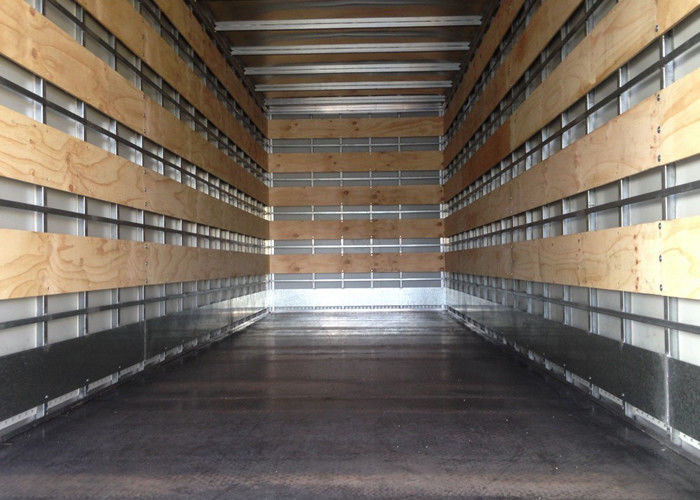

Direct GRP to Prefabricated Fame work for Dry Freight Truck Body

Direct gluing of GRP to a prefabricated framework and mounting to Dry Freight Body

• this kind of construction for the sidewalls has a high demand on the stiffness, strength and thermal expansion of the GRP material, due the GRP is only glued partially on a framework and not fixed on the whole surface like on a sandwich panel (otherwise the GRP surface will become quite wavy at higher temperatures)

• the gluing on the framework is done with a combination of a double side PE-foam gluing tape and an flexible structural adhesive (1 component PU- or MS-polymer)

Dry Freight truck Box or van trailers are the most common type. They are quite simply a metal or composite box on wheels with some doors on the back, though some offer additional access doors on the sides.

The Dry Freight truck body we supplied with composite panels, Core Material with XPS, Waterproof Plywood, Honeycomb, composited with Surface material of FRP, Aluminum Plate or Steel Plate for different Dry Cargo box demands.

Direct GRP to Prefabricated Fame work for Dry Freight Truck Body
Composite Truck body type		GRP+Frame Work
Outside Dimension		L ≤16,000 mm, W&H≤ 2,600 mm
Panel Structure
Unit Panel Density (kgs/㎡)		3
K Value: W/〔㎡•K)
Wall panel Thickness (mm)		2
Floor Panel Thickness (mm)		3mm galvanized steel checker plate
		18mm water-proof plywood
Rear Door		Double-Wing Open Door + Galvanized Steel Door Frame
Sub-frame		Painted Z -Steel
Box Structure		Panels assembled with Fiberglass profile / Alu.Profile
Lights & Switch		LED; Water-proof; 12V/24V Convertible
Drain Pipe		2 sets
Options	Doors	3-wings Open Rear Door
		Side Doors
		Tail Lift System
	Profiles	1. Checked Aluminum Floor Cover
		2. Small M Channle
		3. T Changels
		4. Internial Side Kick Plate-Aluminum
		5. Cargo Fix System
Dry Freight Panel Kits and Box •generally there are two common used construction systems for Dry Freight Bodies which need totally different material qualities: 1.Dry Freight Body made out of thinner sandwich panels and mounted by profile systems 2.Direct gluing of GRP to prefabricated framework parts which is afterwards mounted to a body. •the roofs of Dry Freight Bodies are often constructed as „translucent roofs“ with a „translucent“ GRP which is directly glued on an underconstruction for both mentioned upper constructions.
Core Material : the thickness of the sandwich panels is depending on the size of the Dry Freight Body and on the used core material, typical values are for instance: •Plywood core material: approx. 15 – 20 mm 15 mm for smaller vehicles 20 mm for size up to 12 m in length •PP-Honeycomb core material: approx. 20 – 30 mm •XPS- / PU-foam: approx. 25 – 40 mm thinner for smaller truck bodies thicker for bigger truck bodies

Two Common Construction System
1.Dry Freight Body made out of thinner sandwich panels and mounted by profile systems	2.Direct gluing of GRP to prefabricated framework parts which is afterwards mounted to a body.

translucent roofs

Mounting Profiles
