Drop Curtain Side Dry Freight Truck Bodies ,13m Insulated Dry Cargo Box

Name: Drop Curtain Side Dry Freight Truck Bodies ,13m Insulated Dry Cargo Box
Brand: GENERAL EAST CO.,LTD
SKU: 9303XXY-CL
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ISO9001/TS16949

Model Number: 9303XXY-CL

Payment & Shipping Terms

Minimum Order Quantity: 3 SETS

Packaging Details: IN CASE OR ON BOX

Delivery Time: 20 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 100 units per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                dry box truck body, dry freight box


Core Material:	Curtain Side	Size:	Customized
Profiles:	Aluminum	Box Type:	Curtain Side Dry Freight Truck Trailer

Core Material:	Curtain Side
Size:	Customized
Profiles:	Aluminum
Box Type:	Curtain Side Dry Freight Truck Trailer

Product Description

13m Drop curtain side Trailer with 3 axles for bulk and case packed cargos

Dry Freight truck Box or van trailers are the most common type. They are quite simply a metal or composite box on wheels with some doors on the back, though some offer additional access doors on the sides.

The Dry Freight truck body we supplied with composite panels, Core Material with XPS, Waterproof Plywood, Honeycomb, composited with Surface material of FRP, Aluminum Plate or Steel Plate for different Dry Cargo box demands.

13m Drop curtain side Trailer with 3 axles for bulk and case packed cargos			9303XXY-CL
overall outside dimension (mm)		Length	13000
		Width	2550
		Height (unload)	3995
Outside dimension of Drop Side body (mm)		Length	12800
		Width	2480
		Height	2500
capacity(L)
GVW(kg)			30000
vehicle total weight(kg)			8490
rated payload(kg)			30000
Wheel base(mm)			7250+1310+1310
Tread(mm)	Tread at front
	Tread at rear		1830/1830/1830
Front/Rear Overhang(mm)			/2060
Approach/Departure angle(°)			/15
Rated payload of Vehicle saddle			16000
Axle			BPW 12T*3
Axle Capacity kgs			/8000/8000/8000
Tyres			11R22.5*12
Trailer Material			Carbon Steel
Transport Material :			Bulk or Light box cargos
Twist Locks
Insulated Cover			nile
Suspension			Leaf Spring
Leaf Spring			/8/8/8
Remark:
CURTAIN MATERIAL: Roof, Curtain 630 g/㎡, FIXED Side curtainer, 900 g/㎡,FIXED High-strength composite door with container locks
Frame Structure Inside frame: Steel Pillars with Aluminum Cross Beam Roof: Plywood Pad closed type, Options: Curtain open type; Steel Pad Closed type Tail Door: Plywood pad with container locks Option: Steel pad with Container lock WABCO Brake System, Clearance: 540m Floor: 3mm Checked Steel Flatbed Option: Floor center Moveable parts for Roil and Heavy Srcroll with fix system
Steel Structure: Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts. Floor:3mm thick checkered steel plate.
OEM Parts Configuration: King Pin: 3.5” /2” exchangeable king pin, Supplier: JOST. Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T. Suspension:Mechanical suspension with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension Axles: square axle with 12/13/14/15/20 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in China.. Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS. Brake Chamber: 30 type on front axle.30/30 type on other axles, Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO
Others: Spare Tire Carrier: Equipped two sets per chassis without spare tire. Side Guard: Steel. Tool Box: Equipped one set. Painting: Color by customer’s requirement. Marking: By customer’s requirement. Options: Oil Tanker: 300L carbon steel.

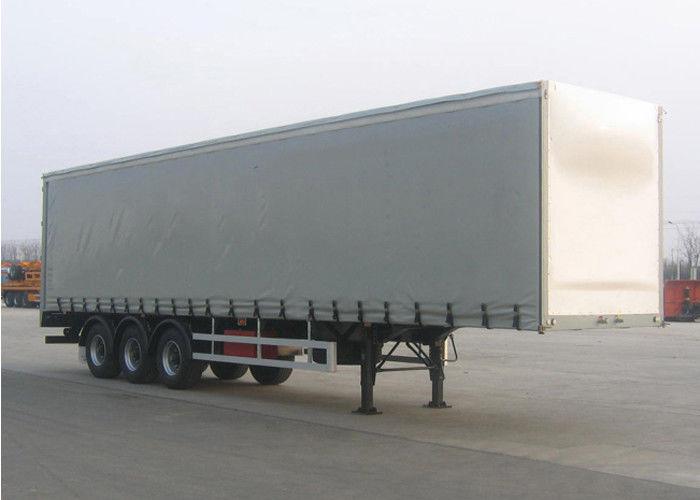

Drop Curtain Side Dry Freight Truck Bodies ,13m Insulated Dry Cargo Box 0

Drop Curtain Side Dry Freight Truck Bodies ,13m Insulated Dry Cargo Box 1
