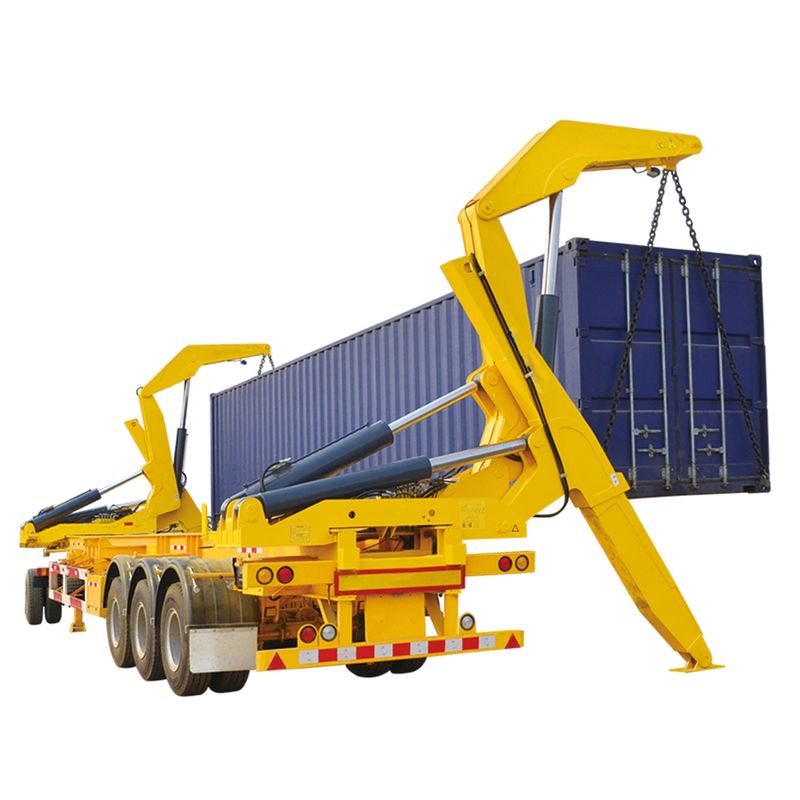

60T Heavy Duty Mechanical Suspension Sliding Side Loading And Unloading Semi Trailer

Product Details

Place of Origin: China

Brand Name: G.E.T VEHICLES | TRAILERBULL

Payment & Shipping Terms

Price: $85,000.00/units 1-1 units

Packaging Details: BULK VESSEL , ROL-ROL @ CBU

Supply Ability: 100 Unit/Units per Year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                60T heavy duty semi trailer, Mechanical Suspension heavy duty semi trailer, Sliding Side heavy duty semi trailer


Use:	Truck Trailer	Type:	Semi-Trailer, Side Lifter Truck Semi Trailer
Material:	Steel	Size:	14,000x2,500 (mm)
Max Payload:	40,000 Kgs	Container Lifter:	Sliding Side Hydraulic Crane
Crane Power:	Diesel Engine Or PTO	Container Suitable:	ISO 40ft & 20ft Contianers
Length:	14,000 Mm	Loading Capacity:	40,000 Kgs ( 40 T)
Axles:	FUWA 15T X 3 Pcs, Option: BPW	Suspension:	Heavy Duty Mechnical For 60T
Application:	Container Logistics Company	Usage:	Container Side Loading And Discharging
Port:	QINGDAO,CHINA

Use:	Truck Trailer
Type:	Semi-Trailer, Side Lifter Truck Semi Trailer
Material:	Steel
Size:	14,000x2,500 (mm)
Max Payload:	40,000 Kgs
Container Lifter:	Sliding Side Hydraulic Crane
Crane Power:	Diesel Engine Or PTO
Container Suitable:	ISO 40ft & 20ft Contianers
Length:	14,000 Mm
Loading Capacity:	40,000 Kgs ( 40 T)
Axles:	FUWA 15T X 3 Pcs, Option: BPW
Suspension:	Heavy Duty Mechnical For 60T
Application:	Container Logistics Company
Usage:	Container Side Loading And Discharging
Port:	QINGDAO,CHINA

Product Description

Brief Instruction

GET.9TJZ.CMD.3/37 Side Lift Semi Trailer With XCMG Crane System

GET.9TJZ.CMD.3/37 Side lifter have several advanced core technologies and a number of patents, it can transfer containers to other trailers,trucks, or onto the ground. Its characters including big lifting capacity, large working range, wide application range, goodversatility, and strong guarantee ability, meet the demands of lifting container anywhere. It is widely used for shipping, port,railway, storage and custom etc. Its characteristics of "rapid, vivid, efficiency, convenience" get more and more understanding and approbations.

Main Parameters

Item	Unit	Parameters Parameters
Max. lifting capacity	kg	37000
Max. working range	mm	4000
Max. stabilizer outreach	mm	32000
Curb mass	kg	14500
Mass of sidelifter	kg	7250
Maximum gross mass	kg	40000
Outline dimension of semi-trailer(L×W× H)	mm	14100×2500×4000
Outline dimension of sidelifter(L×W×H)	mm	1020×2500×2490
Wheel base	mm	8000+1350+1350
Track(front axle/rear axle)	mm	1820/1820/1820
Front overhang / Rear overhang	mm	-/2370
Approach angle/Departure angle	°	-/13
Model	——	Kubota V2403-M-DI-E3B-CSL-1
Power/rotation speed	kW/r/min	36.5/2600
Emission standard	——	Off-road, Euro III

Your Benefits

1. Sliding side loading and unloading

The side lifter can slide on frame of the semi-trailer to fit 20ft-40ft Containers. Its characters of wide application range and good versatility expand the application of equipment greatly.

2. Double pumps with double branches

The power of pumps is provided by a speed adjustable engine. Hydraulic oil from double pumps drives each component respectively through confluence valve group and multichannel valve group of lift equipment. This kind of hydraulic system can adjust two lift equipments' simultaneous motions, ensure stability and reliability of movements during loading and unloading.

3. Load self-adjust patent

The double pumps consist of two parts, a high-pressure pump and a low-pressure pump. Hydraulic oil from double pumps converged by confluence valve drives two lifters. The low-pressure pump will unload at high pressure. Hydraulic system can automatic switchover from low pressure and mass flow to high pressure and little flow steadily. The output power of engine will be fully utilized.
Lifters will work steadily and economically.

4. Spreader with chain and twistlock, patent of spreader automatic storage

Spreader is mainly composed of chains and twist locks. Twist lock will rotate and lock corner fittings of container during loading and unloading and will not drop. During container transportation, twist lock which will not be unsnatched manually can be locker automatically by limiting device. It is convenient, efficient and safety.

Track of suspension point is optimized, so the spreader can be stored automatically when boom being retracted after unloading. Operating comfortableness is increased, and safety is improved.

5. Optimized control system

The side lifter provides a reasonable wireless remote control and two load sensitive electro-hydraulic proportional valves which have pressure compensation. Wireless remote control whose performance includes security, comfortableness and convenience is designed in humanization that the movement of joysticks are consistent with side lifter. The proportional control system allows
the side lifter to position the container with precision and steady.

6. Reasonable protective system

An anti-rollover protection system is installed on stabilizer, it can realize real time supervision in the process of operation
wh the vehicle will rollover, give an alarm and lock lifters' movement. At the other side, a baffle is installed on the base of lifter to prevent container going to dangerous area.
High strength steel is used, which reliability is verified by advanced analysis software and tested by experiment. In addition, high quality hydraulic parts, electric parts, reliable retaining mechanism and practical emergency stop are used to increase security.

Related Trailers

FAQ

What is a Side Lift Semi Trailer ?

Side lifter have several advanced core technologies and a number of patents, it can transfer containers to other trailers,trucks, or onto the ground. Its characters including big lifting capacity, large working range, wide application range,
goodversatility, and strong guarantee ability, meet the demands of lifting container anywhere. It is widely used for shipping, port,railway, storage and custom etc. Its characteristics of "rapid, vivid, efficiency, convenience" get more and more understanding and approbations.

Are we manufacturers or traders? Why you are just show Trade company ?

We are manufacturer, we have 3 factories in China for different Vehicles and projects with different names for 30 years.We do business like to visit them and meeting in face to face before , so we have no Stores in Internet, but this year, the virus reason , we can not travel again , have to make it in internet. GET industry is a new company established in Jinan City , the Center of China Havy Machine to organize the international business of all our factories , so it is just show as a trading company in Alibaba.

Additional information for TruckTrailer

1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of the container trailer will be executed according to your needs. 2.We also do OEM and ODM.If you are interested in understanding our abilities and the container trailer, we are always welcome. 3.The final price of all container trailer is determined by the container trailer configuration you choose.Therefore, if you are interested in purchasing products, please contact us

Application for Truck Trailer

1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of containers,this series container semi trailer divides flatbed type. 2. The capacity is for 50tons , we can manufacture it according to your needs. 3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences. 4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc. 5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable. 6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .

What is the CKD and CBU means ?

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges. CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
