Special Purpose Sugar Cane Transport Trailers with Max. Payload 14000 Kg

Name: Special Purpose Sugar Cane Transport Trailers with Max. Payload 14000 Kg
Brand: GENERAL EAST CO.,LTD
SKU: Sugar cane trailers
Price: 476.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GET/CIMC

Certification: ISO 9001/TS16949

Model Number: Sugar cane trailers

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Packaging Details: 3 units packed or 2 units packed

Delivery Time: 30 working days

Payment Terms: T/T, L/C

Supply Ability: 200 units per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                special purpose vehicle, concrete mixer truck


Max. Payload::	14,000 Kg	Dead Weight::	5790kgs
Bearing::	K39585/39520,k663/653	Tires::	18.4-30 ,tubless 4 Pieces.

Max. Payload::	14,000 Kg
Dead Weight::	5790kgs
Bearing::	K39585/39520,k663/653
Tires::	18.4-30 ,tubless 4 Pieces.

Product Description

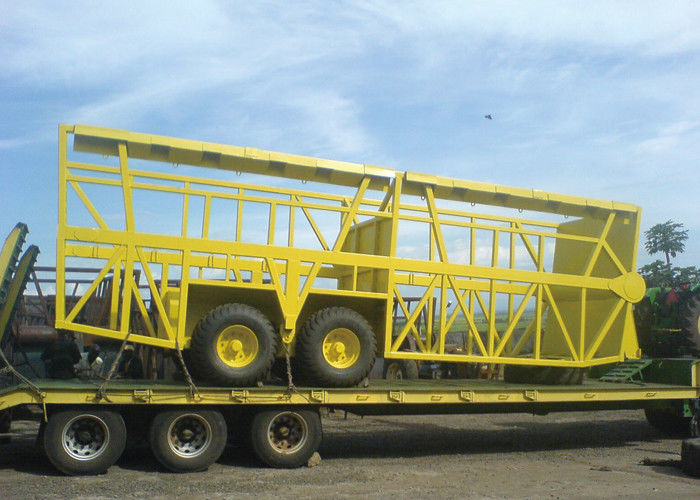

Sugar cane trailers

Special Purpose Sugar Cane Transport Trailers with Max. Payload 14000 Kg 0

Dimension (approx):length: 8000+1935mm width: 2,640 mm

Height: 3113mm @ unload

Max. Payload: 14,000 kg

Dead weight: 5790kgs

Oem parts configuration:

Axles: walking beam with half-axles*4sets

Bearing: k39585/39520,k663/653

Rims: 16-30, 4 pieces.

Tires: 18.4-30 ,tubless 4 pieces.

Discharge: steel wire rope 3/4" * 6 pieces

Main material: carbon steel q345b/astm a6, and q235a/astm a29m

With full hooks and joint of tractor side

Sugar cane trailers Model	Sugar cane trailers	tire	18.4/15-30,tubless 4 wheels
loading capacity	14000	brakes form	Inflatable brake
Dead weight	7200	unloading form	Steel link chain tipping 3/4" * 6 pieces
Trailer overall dimension(mm)	Length: 11,385 mm Width: 2,617 mm Height: 3,165mm @ unload	Loading space	46000L
Axles:	Walking beam suspension with half axles	Options	Walking beam suspension with full length axles
