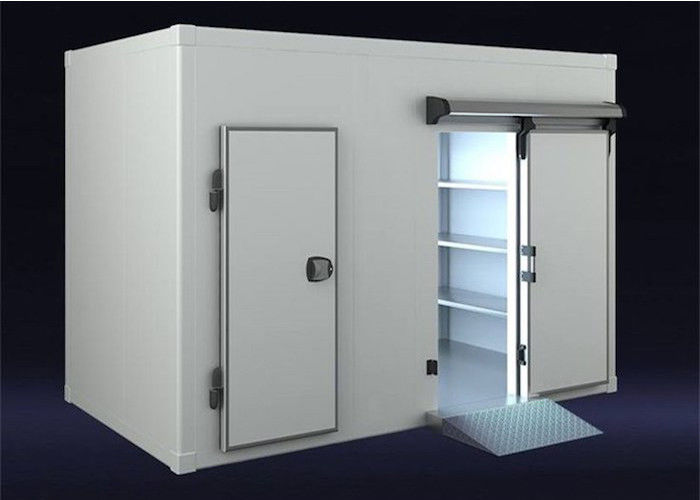

Commercial Cold Room Construction Walk In Fridge With Compressor

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ISO9001/TS16949

Model Number: Commercial Modular cold room

Payment & Shipping Terms

Minimum Order Quantity: 1 SETS

Packaging Details: IN CASE OR ON BOX

Delivery Time: 20 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 150000 sq.m PER MONTH

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                modular cold rooms, walk in freezer room


Material:	Galvanized Steel +PU+Galvanized Steel	Design Type:	Commercial Modular Cold Room
Size:	Customized

Material:	Galvanized Steel +PU+Galvanized Steel
Design Type:	Commercial Modular Cold Room
Size:	Customized

Product Description

Commercial Modular Assembly Cold Storage Galvanized Steel Plate with PU Composite sandwich panel

The cold storage is a warehouse creating the suitable humidity and cold condition with the use of cooling facility which is also known as the refrigerated storage. It is a place to process and store the products. It can get rid of the influence of the climate , prolong the storage period of various products to adjust the market supply.

Our Cold storage is mainly used for the constant-temperature storage of food, dairy products, meat, aquatic products,poultry, fruit and vegetable, cold drink, flower, green plant, tea,medicine, chemical raw material, electronic instrument, etc.

Commercial Modular Assembly Cold Storage Galvanized Steel Plate with PU Composite sandwich panel
Outside Dimension
Panel Structure		Galvanized steel +PU+Galvanized steel
		Stainless steel + PU + Stainless steel
K Value: W/〔㎡•K)		0.027
Panel thickness		75mm/100mm/120mm/150mm/200mm
Floor Panel Thickness (mm)		3mm galvanized steel checker plate
		18mm water-proof plywood
Door		Half-burined door
		Sliding door
		Double open door
Compressor Units		& Copeland
Air-Cooler		Germany brand Kuba
Vavle		Danfoss
Control box		PC control
Spare parts		Balance window
		Sealant
		Pu foam
		Water-proof Led light
Foam-in-place Polyurethane as the Insulation material of the panel inject into molds of the Full-Automatic laminating Machine foam tog with the surface plate to be a complete panel at one time to get the best insulation performance and strength.
Characteristics
1	High intensity and good thermal insulation performance
2	Easy assemble Design, Panels joint with Eccentric lock, 30 sec/joint.
3	Multi-products and specifications can meet different needs and requirements
Size:
Thickness: 75mm, 100mm,120mm 150mm 180mm,200mm,
Length from 1000mm 5o 12000mm
Width: 960mm,

Items	Density	Heat Conductivity Coefficient	Compressive Strength	Bending Resistance Strength	Tensile Strength	Water-Absorbing Property	Sel-Extinguishment Property
Unit	kg/cbm	W/m.K	Kpa	N/Sq.Cm	N/Sq.cm	Sq.cm	Sec
Test Value	38-50	≤0.024	≥160	≥24.5	≥24.5	≤3	≤6

Blast Freezing Unit

Commercial Cold Room Construction Walk In Fridge With Compressor 0

Strong Production Capacity

Commercial Cold Room Construction Walk In Fridge With Compressor 1

Package & Delivery

Commercial Cold Room Construction Walk In Fridge With Compressor 2
