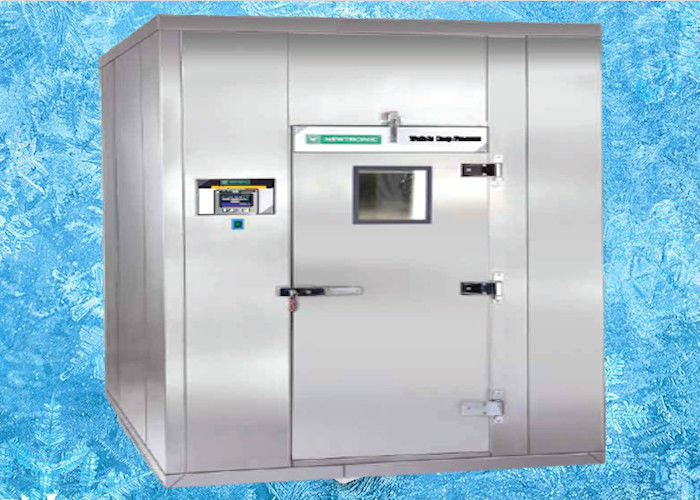

Fresh Fruit Vegetable Storage Cold Room Construction Walk In Chiller Rooms

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ISO9001/TS16949

Model Number: Walk In Deep Freezer Room

Payment & Shipping Terms

Minimum Order Quantity: 1 SETS

Packaging Details: IN CASE OR ON BOX

Delivery Time: 20 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 150000 sq.m PER MONTH

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                walk in freezer room, walk in cold room


Material:	Galvanized Steel +PU+Galvanized Steel	Design Type:	Walk In Deep Freezer Room
Size:	Customized

Material:	Galvanized Steel +PU+Galvanized Steel
Design Type:	Walk In Deep Freezer Room
Size:	Customized

Product Description

WALK-IN DEEP FREEZERS
Galvanized Steel Plate with PU Composite sandwich panel

Deep Freezers are equipped with a Standby Cooling System to significantly minimize breakdowns. The switchover to Standby system is automatic & immediate upon detection of a fault in Primary. If desired, the switchovers can also be scheduled or manual ones.

They also offer automatic defrost by utilizing a heater to defrost the condenser coils, which cycles on and off, preventing any ice build-up. Their robust compressors and CFC-free insulation help ensure temperature uniformity and sample protection

The cold storage is a warehouse creating the suitable humidity and cold condition with the use of cooling facility which is also known as the refrigerated storage. It is a place to process and store the products. It can get rid of the influence of the climate , prolong the storage period of various products to adjust the market supply.

Our Cold storage is mainly used for the constant-temperature storage of food, dairy products, meat, aquatic products,poultry, fruit and vegetable, cold drink, flower, green plant, tea,medicine, chemical raw material, electronic instrument, etc.

WALK-IN DEEP FREEZERS Galvanized Steel Plate with PU Composite sandwich panel
Panel Structure		Galvanized steel +PU+Galvanized steel
		Stainless steel + PU + Stainless steel
K Value: W/〔㎡•K)		0.027
Insulation System		Internal Dimension :2.5m(L)x2.1m(W)x2.5m(H)
		External dimension:2.2m(L)x1.8m(W)x2.2m(H)
		Roof &Wall&Floor panel: 150mm
		Polyurethane Density: 42±2 kg/m3
		Floor Strength: 1.2mm Aluminum sheet
		0.5mm Pre-painted galvanized steel sandwich polyurethane foam with cam-lock
Door System		Germany brand lock system
		700mm(W)x1700mm(H) single open swing door With heating wire
Fitting system		LED light & Switch & Sealant
Refrigeration system		Compressor:Maneurop ; Cooling Capacity:1621(W)
		Spanish brand KIDE ,WALL-MOUNTED TYPE
		Working Condition: Refrigerant:R404a & Voltage: 380V/50HZ
Display System		3 units display rack
		3units storage rack
		3 units replenishment device
		3 units swing open glass door; Glass door dimension:703mm*1750mm
Polyurethane Sandwich Insulation Panel
Foam-in-place Polyurethane as the Insulation material of the panel inject into molds of the Full-Automatic laminating Machine foam tog with the surface plate to be a complete panel at one time to get the best insulation performance and strength.
Characteristics
1	High intensity and good thermal insulation performance
2	Easy assemble Design, Panels joint with Eccentric lock, 30 sec/joint.
3	Multi-products and specifications can meet different needs and requirements
Size:
Thickness: 75mm, 100mm,120mm 150mm 180mm,200mm,
Length from 1000mm 5o 12000mm
Width: 960mm,
For drug products intended for storage at sub-zero temperatures, GET Deep Freezers provide a very optimal solution by offering a wide temperature range from 0ºC upto -20ºC

Items	Density	Heat Conductivity Coefficient	Compressive Strength	Bending Resistance Strength	Tensile Strength	Water-Absorbing Property	Sel-Extinguishment Property
Unit	kg/cbm	W/m.K	Kpa	N/Sq.Cm	N/Sq.cm	Sq.cm	Sec
Test Value	38-50	≤0.024	≥160	≥24.5	≥24.5	≤3	≤6

Blast Freezing Unit

Fresh Fruit Vegetable Storage Cold Room Construction Walk In Chiller Rooms 0

Strong Production Capacity

Fresh Fruit Vegetable Storage Cold Room Construction Walk In Chiller Rooms 1

Package & Delivery

Fresh Fruit Vegetable Storage Cold Room Construction Walk In Chiller Rooms 2
