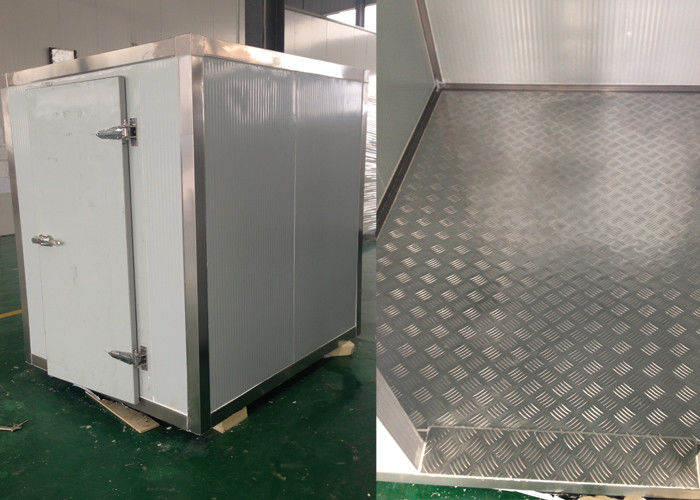

Mobile Cold Room Construction With FRP+PU+FR Composite Sandwich Panel

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ISO9001/TS16949

Model Number: MOBILE FREEZER COLD ROOM

Payment & Shipping Terms

Minimum Order Quantity: 1 SETS

Packaging Details: IN CASE OR ON BOX

Delivery Time: 20 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 150000 sq.m PER MONTH

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                modular cold rooms, walk in cold room


Material:	Galvanized Steel +PU+Galvanized Steel	Design Type:	MOBILE FREEZER COLD ROOM
Size:	Customized	Compressor:	Standardby Type

Material:	Galvanized Steel +PU+Galvanized Steel
Design Type:	MOBILE FREEZER COLD ROOM
Size:	Customized
Compressor:	Standardby Type

Product Description

MOBILE FREEZER COLDROOM TRAILER with FRP+PU+FRP Composite sandwich panel

The cold storage is a warehouse creating the suitable humidity and cold condition with the use of cooling facility which is also known as the refrigerated storage. It is a place to process and store the products. It can get rid of the influence of the climate , prolong the storage period of various products to adjust the market supply.

Our Cold storage is mainly used for the constant-temperature storage of food, dairy products, meat, aquatic products,poultry, fruit and vegetable, cold drink, flower, green plant, tea,medicine, chemical raw material, electronic instrument, etc.

MOBILE FREEZER COLDROOM TRAILER with FRP+PU+FRP Composite sandwich panel
Freezer Clod Room Box	Out Side Dimension	244016001800
	Panel Structure	FRP+PU+FRP
	Unit Panel Density (kgs/㎡)	9.14
	K Value: W/〔㎡•K)	0.027
	Front /Side /Rear Panel Thickness (mm)	45/45/45
	Roof / Floor Panel Thickness (mm)	45/83.5
	Rear Door	Middle Single-Wing Open Door + Stainless Steel Door Frame+Cold Room Lock (inside Open)
	Box Structure	Panels assembled with Fiberglass profile and fiberglass corner
	Lights & Switch	LED; Water-proof; 12V/24V Convertible
	Drain Pipe	2 sets
Trailer Chassis	Trailer-frame	hot dip galvanized
	Plate Srping	60mmx7mmx6
	Wheel	205/75D14 with 13inch white sparying nave boss, no spare tire
	Traction	100x50x3mm, 1200mm long,with 1X8mm safety hinge
	Jack	6 inch
	Connector	50mm Australia Standard,mechanical impact brake
options	Profiles	1. Checked Aluminum Floor Cover
		2. Small M Channle
		3. T Changels
		4. Internial Side Kick Plate-Aluminum
		5. PVC Air Curtain System
		6. Cargo Fix System
		7. Cargo Shelving
	Refrigeration System Electricity Powered Type	Electrictity: Household power or Gererator Temperature range:+5℃ to -20℃

Items	Density	Heat Conductivity Coefficient	Compressive Strength	Bending Resistance Strength	Tensile Strength	Water-Absorbing Property	Sel-Extinguishment Property
Unit	kg/cbm	W/m.K	Kpa	N/Sq.Cm	N/Sq.cm	Sq.cm	Sec
Test Value	38-50	≤0.024	≥160	≥24.5	≥24.5	≤3	≤6

Blast Freezing Unit

Mobile Cold Room Construction With FRP+PU+FR Composite Sandwich Panel 0

Strong Production Capacity

Mobile Cold Room Construction With FRP+PU+FR Composite Sandwich Panel 1

Package & Delivery

Mobile Cold Room Construction With FRP+PU+FR Composite Sandwich Panel 2
