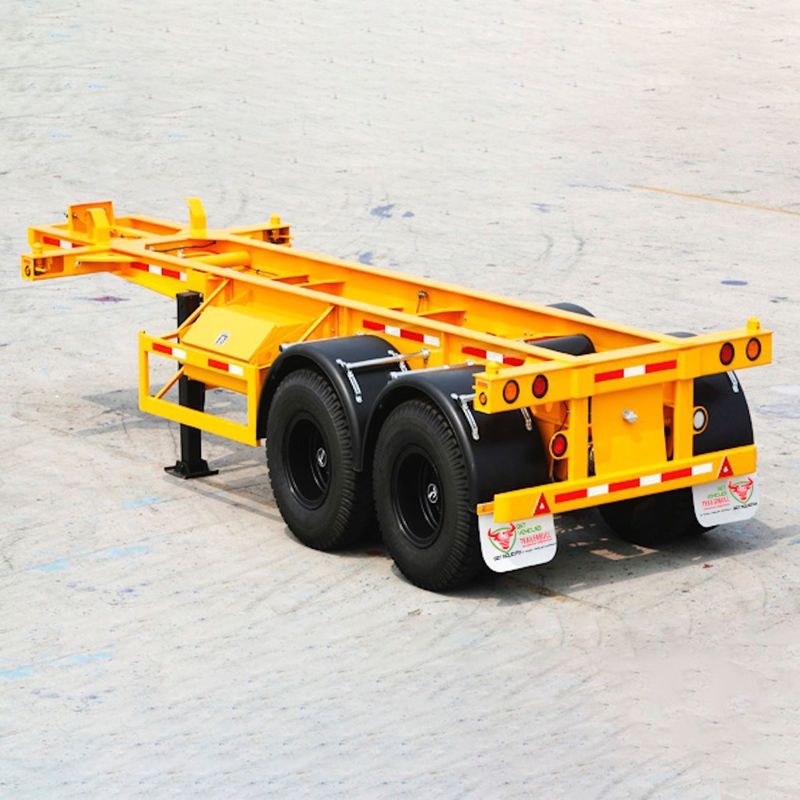

20FT Heavy Duty Skeleton Semi Truck Trailers for ISO Heavy Container Transit

Product Details

Payment & Shipping Terms

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                container skeletal trailer, container transport trailer


Model NO.:	GET. 9TJZ. 2/20	Tread:	1820mm
Grade:	Heavy Duty	Types Of Suspension Systems:	Leaf Spring Suspension
Axle Number:	2	Tire Number:	8
Self-dumping:	Not Self-dumping	ABS Anti-lock Braking System:	No ABS Anti-lock Braking System
Material:	Steel	Condition:	New
Chassis Type:	Straight Chassis	Size:	7600X 2480X1565 (mm)
Kingpin Capacity:	10,000 Kgs	Max. Payload:	30,000 Kgs
Tyre:	11.00r22.5 , Optional: 11.00r20,12.00r22.5 Etc	Landing Gear:	Jost 28t Linkage Type Double Speed
Axle:	Fuwa Optional : BPW Saf	Suspenson:	Leaf Spring Mechinical , Optional : Air-Chamber ,
Chassis Material:	High Strength Steel With 350 MPa Yield Strength	Brake System:	Dual Circuit Electro-Pneumatic Wabco Brand Brake S
Container Position:	20FT Heavy Container Or Portable Tank Container	Application:	Container Logistics, General Cargo Logistics
Special Demands Options:	Side Pillars For Long-Round Shap Cargo, Front Prot	Transport Package:	Container, Bulk Vessel, Rol-Rol @ CBU
Trademark:	GET VEHICLES	Origin:	China
HS Code:	8716391000	Supply Ability:	200 Unit/Units Per Month
Customization:	Available	Type:	Semi-Trailer
Certification:	ISO9001, CCC, ISO/TS16949

Model NO.:	GET. 9TJZ. 2/20
Tread:	1820mm
Grade:	Heavy Duty
Types Of Suspension Systems:	Leaf Spring Suspension
Axle Number:	2
Tire Number:	8
Self-dumping:	Not Self-dumping
ABS Anti-lock Braking System:	No ABS Anti-lock Braking System
Material:	Steel
Condition:	New
Chassis Type:	Straight Chassis
Size:	7600X 2480X1565 (mm)
Kingpin Capacity:	10,000 Kgs
Max. Payload:	30,000 Kgs
Tyre:	11.00r22.5 , Optional: 11.00r20,12.00r22.5 Etc
Landing Gear:	Jost 28t Linkage Type Double Speed
Axle:	Fuwa Optional : BPW Saf
Suspenson:	Leaf Spring Mechinical , Optional : Air-Chamber ,
Chassis Material:	High Strength Steel With 350 MPa Yield Strength
Brake System:	Dual Circuit Electro-Pneumatic Wabco Brand Brake S
Container Position:	20FT Heavy Container Or Portable Tank Container
Application:	Container Logistics, General Cargo Logistics
Special Demands Options:	Side Pillars For Long-Round Shap Cargo, Front Prot
Transport Package:	Container, Bulk Vessel, Rol-Rol @ CBU
Trademark:	GET VEHICLES
Origin:	China
HS Code:	8716391000
Supply Ability:	200 Unit/Units Per Month
Customization:	Available
Type:	Semi-Trailer
Certification:	ISO9001, CCC, ISO/TS16949

Product Description

GET container chassis offers you the perfect solution when your top priority is the efficient transport of 20' Heavy Loading containers and 20 ft Portable Tanker Container need separate Transit.


Front	Side	Rear

Axles	Suspesnion	Frame

20ft 2 Axles Straight Skeleton Container Semi Truck Trailers For ISO heavy Loading Container Transit
1. Model of Truck Trailers (Oem No.)		GET.9TJZ.2/20.Economic	GET.9TJZ.2/20.Plus	GET.9TJZ.2/20.Plus+	GET.9TJZ.2/20.Deluxe
This chassis is designed for transporting a Heavy loading 20' ISO contianer and meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications.
2. General Parameter Of The Container Truck Trailer
overall outside dimension(mm)	Length	7600
	Width	2480
	Height (unload)	1565
Outside dimension of Drop Side body(mm)	Length
	Width
	Height
capacity(L)
GVW(kg)		34700
vehicle total weight(kg)		4700
rated payload(kg)		30000
Wheel base(mm)		4550+1300
Tread(mm)	Tread at front
	Tread at rear	1830/1830
Front/Rear Overhang(mm)		/1000
Approach/Departure angle(°)		/15
Rated payload of Vehicle saddle		10000
Transport Material :		1*20'
Twist Locks		4,
Trailer Running System	Trailer Axle	FUWA AXLE 13T	BPW AXLE 12T	FUWA AXLE 13T	BPW AXLE 12T
	Tires	Tubeless Tires , 11.00R22.5 (dual Tire),steel disc wheel, 10 holes ISO
	Suspension	Tandem Steel Leaf Spring Mechinical Suspension		Air Bag Spring Suspension
	Kingpin:	3.5" /2" JOST.
Stright back, installed a 40' or 20 'container . With Wabco Brake
3. Container Chassi Steel Structure And Trailer Components
Steel Structure: Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts. Main Beams: 500m deep x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick, Bottom Flange 16m thick.
4. Container Trailer Chassis Running Gears and Safty Valves
Landing gear	Jost Or CIMC Brand 28T two speed telescopic manual landing gear
	Crank handle is located on the driver's side of the chassis.
Brake System	Dual line pneumatic brake, SAE hose and connector, WABCO relay emergency valve, With ABS brake system.Optional: EBS
	T30/30 spring brake chambers, T30 brake chambers
	3/8" blue air tube for control and 3/8" red for supply, 40L air tanks
Electrical	OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards. Receptacle::7 way socket SAE standard, China Wiring: Electric cable protected by PVC conduit on main frame
Painting	Electrophoretic spraying, that is, water-based coating, can be dissociated into a water-soluble film-forming material which can form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of the object to form a coating film
MISC	GET standard marking, document holder, conspicuity tape, Steel or black rubber mud flaps
Option	Hubodometer, PSI tire inflation system

Standard chassis

container chassis are constructed using high-strength steel profiles and systematically protected against corrosion.

Axles

Standard China Square Axle with 420x180 drum brake, Options for Disc Brake and BPW Brand.

Air Suspension Optionals

Outstanding driving characteristics, thanks to BPW /SAF air suspension. The innovative ventilation system generates less heat extending brake pads lifetime.

Lifting axle Optional

The lifting axle improve efficiency, driving safety and traction off-road.

General

Faster container swaps through efficient locking mechanisms. Greater convenience with the best material quality, simple handling, minimised risk of errors and two ISO locking systems.

TWIST LOCKs Optional

Adjustable TWIST-LOCK locking in the middle 20ft position for 20ft contianer delivery.

What is a Skeleton Semi Trailers

Skeleton Semi-trailers belongs to the Terminal Logistic Equipment.Can be made for 20 feet and 40 feet or 45 feet or other special dimension container's transportation. From 2 axles to 4 axles or more , with capacity from 20T to 80T to fit all the bad working conditions in all over the world. Skeleton can also work tog with the inland cargo box to be an Dry Logistics box semi-trailer, with a freezer to be a Cold Chain Logistics Refrigerated semi-trailer for fresh or frozen cargos, with an Tanker to be a Energy LogisticsTanker Monoblock Tankerer semi-trailer,etc. Totally , Skeleton Semi-trailer is a very friendly trailer friends , can make friends with most of the cargo Holders.

Additional information for TruckTrailer

1.The parameters of the truck trailer are just common configurations, not absolute.The specific configuration of the container trailer will be executed according to your needs. 2.We also do OEM and ODM.If you are interested in understanding our abilities and the container trailer, we are always welcome. 3.The final price of all container trailer is determined by the container trailer configuration you choose.Therefore, if you are interested in purchasing products, please contact us

Application for Truck Trailer

1. This series container semi trailers are mainly suitable for the MID/Long distance transportation of containers,this series container semi trailer divides flatbed type. 2. The capacity is for 50tons , we can manufacture it according to your needs. 3. The axles can be Fuwa / Bpw with different tonnages by your need with price differences. 4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc. 5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable. 6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs .

What is the CKD and CBU means ?

CKD means completely knocked down. That means offer all the parts of the truck body(Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you have to do some works, but It can save much shipping charges. CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.
