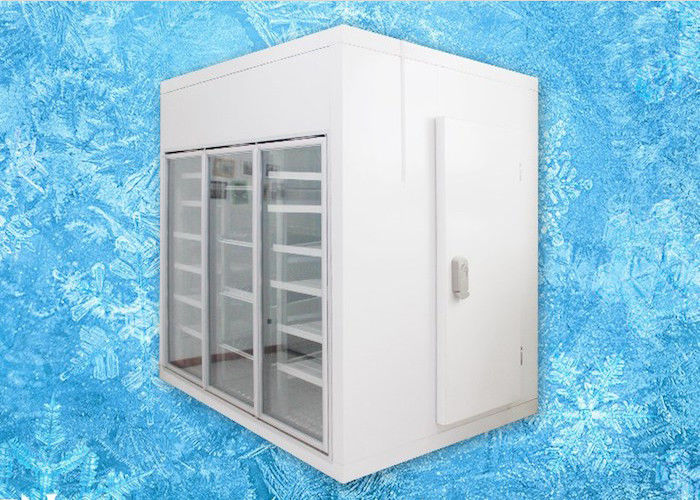

Galvanized Steel Plate Walk In Freezer Room With PU Composite Sandwich Panel

Name: Galvanized Steel Plate Walk In Freezer Room With PU Composite Sandwich Panel
Brand: GENERAL EAST CO.,LTD
SKU: Walk In Freezer Room
Price: 110.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: GET

Certification: ISO9001/TS16949

Model Number: Walk In Freezer Room

Payment & Shipping Terms

Minimum Order Quantity: 1 SETS

Packaging Details: IN CASE OR ON BOX

Delivery Time: 20 WORKING DAYS

Payment Terms: L/C, T/T

Supply Ability: 150000 sq.m PER MONTH

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                walk in freezer room, walk in cold room


Material:	Galvanized Steel +PU+Galvanized Steel	Design Type:	Walk In Freezer Room
Size:	Customized

Material:	Galvanized Steel +PU+Galvanized Steel
Design Type:	Walk In Freezer Room
Size:	Customized

Product Description

Walk In Freezer Room
Galvanized Steel Plate with PU Composite sandwich panel

The cold storage is a warehouse creating the suitable humidity and cold condition with the use of cooling facility which is also known as the refrigerated storage. It is a place to process and store the products. It can get rid of the influence of the climate , prolong the storage period of various products to adjust the market supply.

Our Cold storage is mainly used for the constant-temperature storage of food, dairy products, meat, aquatic products,poultry, fruit and vegetable, cold drink, flower, green plant, tea,medicine, chemical raw material, electronic instrument, etc.

Walk In Freezer Room Galvanized Steel Plate with PU Composite sandwich panel
Panel Structure		Galvanized steel +PU+Galvanized steel
		Stainless steel + PU + Stainless steel
K Value: W/〔㎡•K)		0.027
Insulation System		Internal Dimension :2.5m(L)x2.1m(W)x2.5m(H)
		External dimension:2.2m(L)x1.8m(W)x2.2m(H)
		Roof &Wall&Floor panel: 150mm
		Polyurethane Density: 42±2 kg/m3
		Floor Strength: 1.2mm Aluminum sheet
		0.5mm Pre-painted galvanized steel sandwich polyurethane foam with cam-lock
Door System		Germany brand lock system
		700mm(W)x1700mm(H) single open swing door With heating wire
Fitting system		LED light & Switch & Sealant
Refrigeration system		Compressor:Maneurop ; Cooling Capacity:1621(W)
		Spanish brand KIDE ,WALL-MOUNTED TYPE
		Working Condition: Refrigerant:R404a & Voltage: 380V/50HZ
Display System		3 units display rack
		3units storage rack
		3 units replenishment device
		3 units swing open glass door; Glass door dimension:703mm*1750mm
Polyurethane Sandwich Insulation Panel
Foam-in-place Polyurethane as the Insulation material of the panel inject into molds of the Full-Automatic laminating Machine foam tog with the surface plate to be a complete panel at one time to get the best insulation performance and strength.
Characteristics
1	High intensity and good thermal insulation performance
2	Easy assemble Design, Panels joint with Eccentric lock, 30 sec/joint.
3	Multi-products and specifications can meet different needs and requirements
Size:
Thickness: 75mm, 100mm,120mm 150mm 180mm,200mm,
Length from 1000mm 5o 12000mm
Width: 960mm,
The concept of storage of critical samples is no more limited to having a simple room with temperature between 2ºC to 8ºC. Such ineffective solutions lead to excursions in temperature conditions that affect the quality of the stored material over a period in time.
Walk-In Cold Rooms ensure the temperature is uniform & within range throughout the room. Customer can also avail the option of 8 probe monitoring with data logging, trending & real-time alarms. They are supplied at customer-site in a knock-down condition & can pass through standard sized doorways. They are assembled on-site. Cold Rooms can be utilized for multiple applications in the Pharmaceutical, Cosmetic, Food & Beverages, Dairy & other industries for all kinds of products intended for storage at low temperatures.

Items	Density	Heat Conductivity Coefficient	Compressive Strength	Bending Resistance Strength	Tensile Strength	Water-Absorbing Property	Sel-Extinguishment Property
Unit	kg/cbm	W/m.K	Kpa	N/Sq.Cm	N/Sq.cm	Sq.cm	Sec
Test Value	38-50	≤0.024	≥160	≥24.5	≥24.5	≤3	≤6

Blast Freezing Unit

Galvanized Steel Plate Walk In Freezer Room With PU Composite Sandwich Panel 0

Strong Production Capacity

Galvanized Steel Plate Walk In Freezer Room With PU Composite Sandwich Panel 1

Package & Delivery

Galvanized Steel Plate Walk In Freezer Room With PU Composite Sandwich Panel 2
