PUR PIR Insulated R404a Walk In Cooler

Name: PUR PIR Insulated R404a Walk In Cooler
Brand: GENERAL EAST CO.,LTD
SKU: Industry Modular Cold Storage
Price: 30.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: GET

Certification: EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015 Standard Compliance: CE compliance,EU Directive 2006/42/EC,harmonized standard EN280:2013+A1:2015

Model Number: Industry Modular Cold Storage

Payment & Shipping Terms

Minimum Order Quantity: 400 sqm

Price: 20-40 / Sqm

Delivery Time: 15-30 working days

Payment Terms: L/C, T/T

Supply Ability: 200000 sqm / year

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                r404a walk in meat cooler, r404a walk in cooler freezer


Panel Coating / Core Material:	PPGL 0.5mm/ PUR(Polyurethane) Or PIR (Polyisocyanurate)	Panels Assembly:	Cam Lock ,Tongue & Groove Joint
Thickness / Heat Transfer Coefficient U:	100mm/ 0.23 W㎡K,120mm/ 0.192 W㎡K,150mm/ 0.150 W㎡K,200mm/0.115	Temp. Of Room:	-60℃~+20℃ Optional
Application:	Meat , Fish , Seafood, Chips	Place To Assemble:	Indoor/out Door(concrete Construction Building/steel Construction Building)
Refrigerating Unit::	, Copeland Compressor,evaporator ,condenser Etc.	Defrost Type:	Electric Defrosting
Voltage:	220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz Optional	Refrigeration:	R22,R404a,R447a,R448a,R449a,R507a Refrigerant
Refrigeration Type:	Air Cooled/water Cooled/evaporation Cooled

Panel Coating / Core Material:	PPGL 0.5mm/ PUR(Polyurethane) Or PIR (Polyisocyanurate)
Panels Assembly:	Cam Lock ,Tongue & Groove Joint
Thickness / Heat Transfer Coefficient U:	100mm/ 0.23 W㎡K,120mm/ 0.192 W㎡K,150mm/ 0.150 W㎡K,200mm/0.115
Temp. Of Room:	-60℃~+20℃ Optional
Application:	Meat , Fish , Seafood, Chips
Place To Assemble:	Indoor/out Door(concrete Construction Building/steel Construction Building)
Refrigerating Unit::	, Copeland Compressor,evaporator ,condenser Etc.
Defrost Type:	Electric Defrosting
Voltage:	220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz Optional
Refrigeration:	R22,R404a,R447a,R448a,R449a,R507a Refrigerant
Refrigeration Type:	Air Cooled/water Cooled/evaporation Cooled

Product Description

Huge Frozen Chill Blast Industry Modular Cold Storage With Sustainable Continuous PUR PIR Insulated Sandwich Panel
We manufacture and build chiller rooms to be used for many different product types. In the chiller room fresh fruits and vegetables, fresh meat and poultry products, milk and milk products, fresh fish and sea foods, bakery, medical drugs and chemicals are preserved.

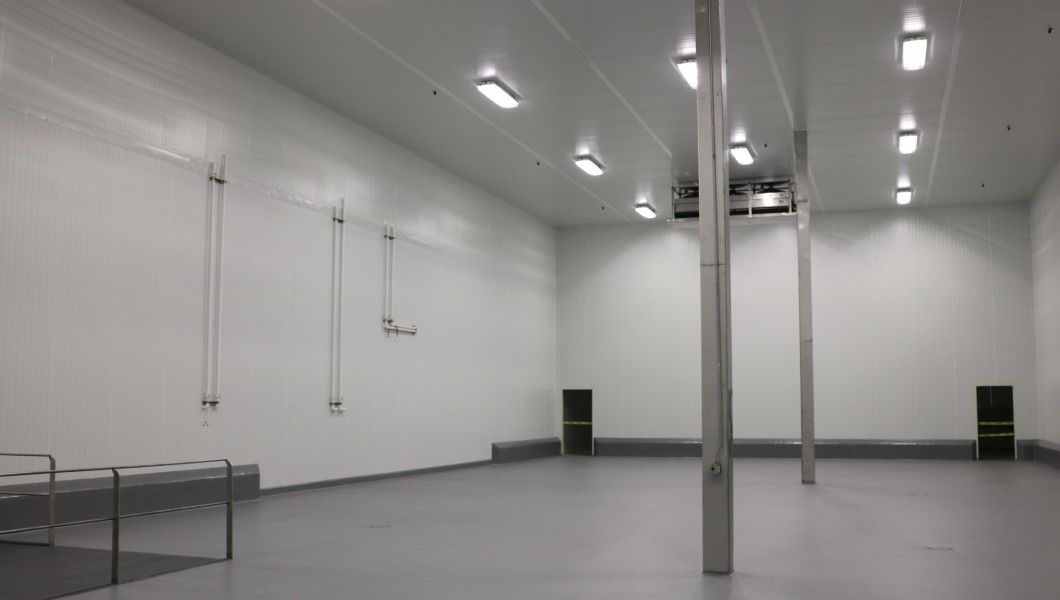

PUR PIR Insulated R404a Walk In Cooler 0

1. General Parameters of Processing Factory
Cold Room Dimension	Customized
Temp. of room	-60℃~+20℃ optional
Functions	Fruit,vegetable,flower,fish,meat,chicken,medicine,chemical,electronics,etc.
Place to assemble	Indoor/out door(concrete construction building/steel construction building)


2. Refrigeration units
Refrigeration unit	Copeland/ etc.
Refrigeration type	Air cooled/water cooled/evaporation cooled
Refrigeration	R22,R404a,R447a,R448a,R449a,R507a Refrigerant
Defrost Type	Electric defrosting
Voltage	220V/50Hz,220V/60Hz,380V/50Hz,380V/60Hz,440V/60Hz optional
Vavle	Danfoss
Evaporator	KUBA
Cold Storage Warehouse Refrigeration system Our pursuit of excellence is evidenced nowhere than the application of world famous brand refrigeration components. COPELAND,L’UNITE HERMETIQUE,DAIKIN,REFCOMP,ECO,ROLLER compressors, ROLLER, ECO and domestic high efficiency fan motors ( in accordance with customer’ acquirement). ALCO, SPORLAN, and CASTEL ’s refrigeration equipments, which are safe, reliable and energy-saving. EVERY CONTROL ’s electronic controller system equipped with SCHNEIDER ’s electrical switch offers multi-functions, intelligentized-control and user-friendly operation and allows for an optional remote data logging and control system as needed. Refrigeration equipments: 1. Our refrigerated warehouse refrigeration system is equipped with Phase Loss Monitor (PLM), which will trip when there is a faulty or lost phase to prevent motor winding damage. 2. Digital thermostat for displaying room temperatures inside the cold storage room. 3. Computerized and user-friendly system enables machine to go over operational cycles automatically after setting working temperatures. 4. Head pressure control keeps suction and discharge pressure within system design limits and prevents bad heat flow and air penetration damage. 5. Thermal overload protection prevents compressor overheating by using lock-out thermal relay and compressor motor thermistance. A heater safety control is installed to prevent evaporator heater from over-heating of coil when defrosting by shutting off power supply.

3. Cold Room Insulated Sandwich Walls
Sandwich Panel	PPGL coating PUR / PIR (FM approved ) Sandwich Insulate Panel , 40-50 kg/ cbm
K Value: W/〔㎡•K)	0.027
Cold Room Panel 50 mm	≥ 5 ℃
Cold Room Panel 75 mm	≥ -5 ℃
Cold Room Panel 100 mm	≥ -25 ℃
Cold Room Panel 150 mm	≥ -45 ℃

PUR PIR Insulated R404a Walk In Cooler 3

4. Cold Room Floor
Polyurethane Panels Floor	Standard Floor with Polyurethane Panels
Polyurethane Panels Floor	Options: Checked Alu. Plate for Forklift
Concrete Floor	XPS Insulation Layer (100mm / layer)
Concrete Floor	U Channel for Side Wall Panel (PVC)
5. Type of door	Hanged door,sliding door,double swing electric sliding door,truck door
6. Fittings	All necessary fittings are included,optional
7. Spare parts	Balance window
	Sealant
	Pu foam
	Water-proof Led light

PUR PIR Insulated R404a Walk In Cooler 4

Refrigeration Room & Freezer Application

The Refrigeration Rooms are Cold Room Room are used in a variety of temperature ranges.
High temperature Refrigeration Room: used for holding fruits, vegetables, eggs, medicine and wood.
Medium temperature walk-in freezer: used for holding meats, seafood and stuff that needs the same temperature environment.
Low temperature walk-in freezer: used for holding ice cream, already frozen food.
Ultra-low temperature walk-in : used for freezing food, and in industry and pharmacy field.
PUR PIR Insulated R404a Walk In Cooler 5

30 years shipment Experences

PUR PIR Insulated R404a Walk In Cooler 6

Real Finished Project Show
